Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

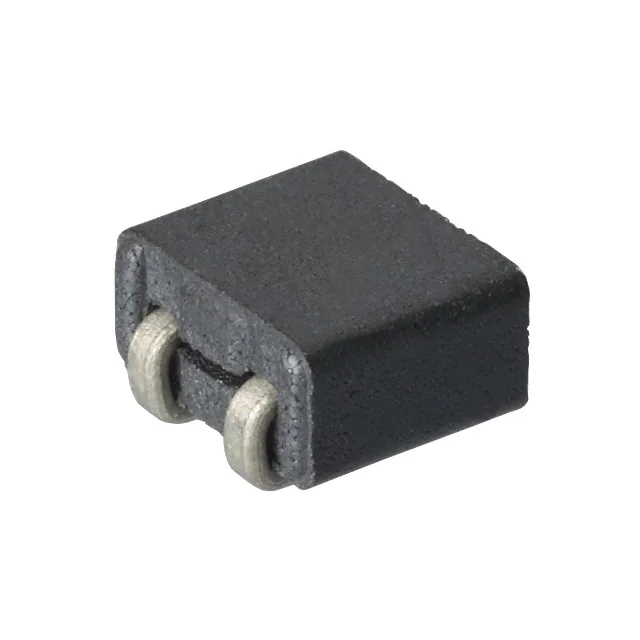

CM2021Y330R-10CMC 15A 2LN 33 OHM SMD |
25,792 | - |
|
Datasheet | 2322 (5956 Metric), 4 Lead | Power Line | 2 | 33 Ohms @ 100 MHz | - | 15A | 0.75mOhm | 280V | - | -40°C ~ 125°C | - | - | - | - | - |
|

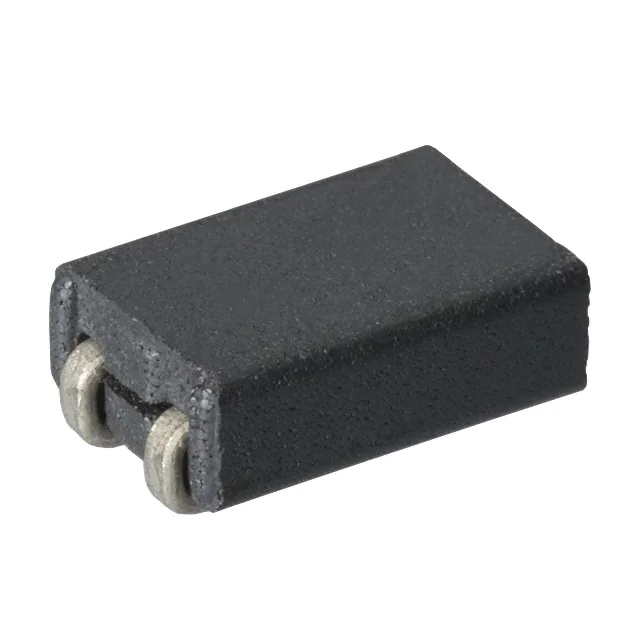

CM3421Y600R-10CMC 15A 2LN 60 OHM SMD |
158,170 | - |
|
Datasheet | 3822 (8531 Metric), 4 Lead | Power Line | 2 | 60 Ohms @ 100 MHz | - | 15A | 0.75mOhm | 140V | - | -40°C ~ 125°C | - | - | - | - | - |
|

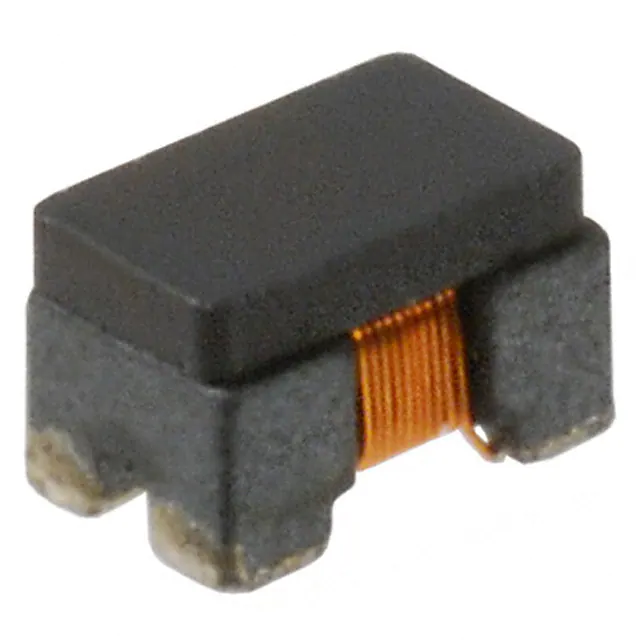

CM0805D900R-10CMC 400MA 2LN 90 OHM SMD |
40,145 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

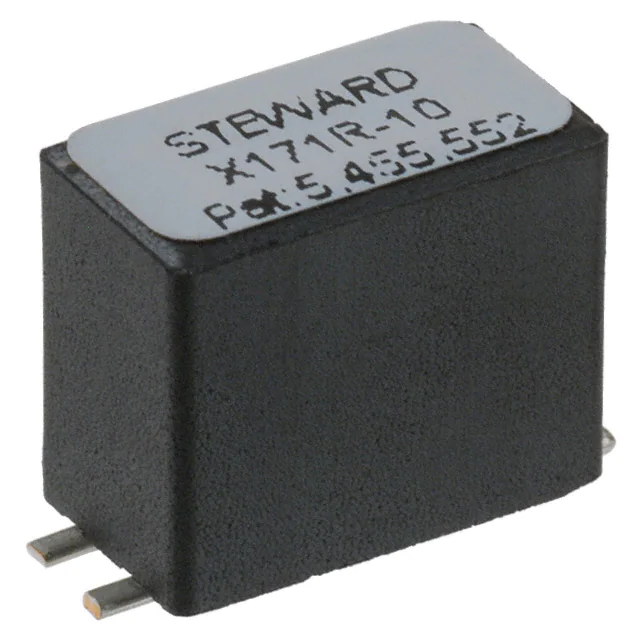

CM2545X171R-10CMC 10A 2LN 170 OHM SMD |
30,065 | - |
|
Datasheet | Vertical, 4 Flat Lead | Power Line | 2 | 170 Ohms @ 100 MHz | - | 10A | 10mOhm | 285V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM0805A371R-10CMC 100MA 2LN 370 OHM SMD |
196,866 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 100mA | 500mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

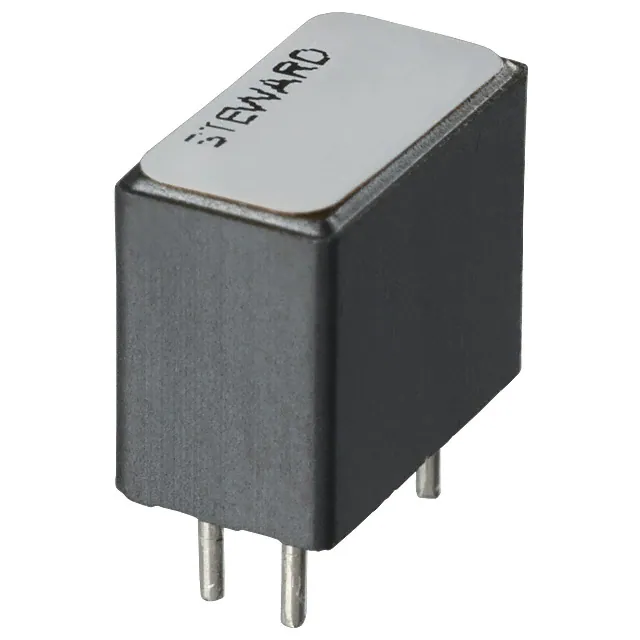

CM2545X171B-10CMC 10A 2LN 170 OHM TH |
26,091 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | 170 Ohms @ 100 MHz | - | 10A | 10mOhm | 340V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM0805C221R-10CMC 300MA 2LN 220 OHM SMD |
132,182 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 300mA | 400mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM7060W101R-10CMC 9A 2LN 140 OHM SMD |
2,534 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 140 Ohms @ 100 MHz | - | 9A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM3440Z171B-10CMC 20A 2LN 170 OHM TH |
8,378 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | 170 Ohms @ 100 MHz | - | 20A | 1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

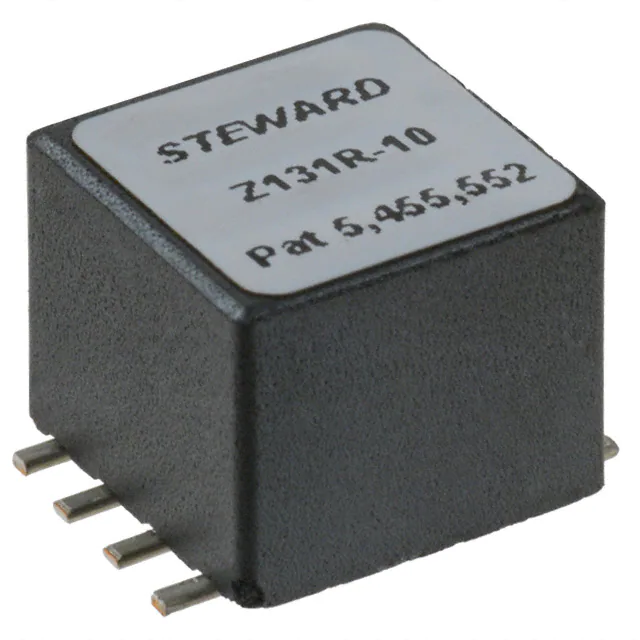

CM4545Z131R-10CMC 10A 4LN 130 OHM SMD |
4,266 | - |
|
Datasheet | Vertical, 8 Flat Lead | Power Line | 4 | 130 Ohms @ 100 MHz | - | 10A | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
