Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC2824E113R-10CMC 11UH 800MA 2LN 800 OHM SMD |
1,837 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 800 Ohms @ 200 MHz | 11 µH @ 100 kHz | 800mA | 156mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
CM1812C282R-10CMC 200MA 2LN 2.82KOHM SMD |
1,104 | - |
|
Datasheet | 1812 (4532 Metric), 4 Leads | Power, Signal Line | 2 | 2.82 kOhms @ 100 MHz | - | 200mA | 500mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM1812R600R-10CMC 5A 2LN 60 OHM SMD |
4,304 | - |
|
Datasheet | 1812 (4532 Metric) | Power, Signal Line | 2 | 60 Ohms @ 100 MHz | - | 5A | 5mOhm | - | - | - | - | - | - | - | - |
|
|
CM1812X330R-10CMC 10A 2LN 33 OHM SMD |
2,698 | - |
|
Datasheet | 1812 (4532 Metric) | - | 2 | 33 Ohms @ 100 MHz | - | 10A | 3mOhm | - | - | - | - | - | - | - | - |
|
CM1922X330R-10CMC 10A 2LN 33 OHM SMD |
3,577 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 33 Ohms @ 100 MHz | - | 10A | 3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM3322U610R-10CMC 7A 2LN 61 OHM SMD |
4,792 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 61 Ohms @ 100 MHz | - | 7A | 15mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM3322X630R-10CMC 10A 2LN 63 OHM SMD |
4,229 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 63 Ohms @ 100 MHz | - | 10A | 8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM3322P400R-10CMC 4A 2LN 40 OHM SMD |
1,768 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 40 Ohms @ 100 MHz | - | 4A | 30mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

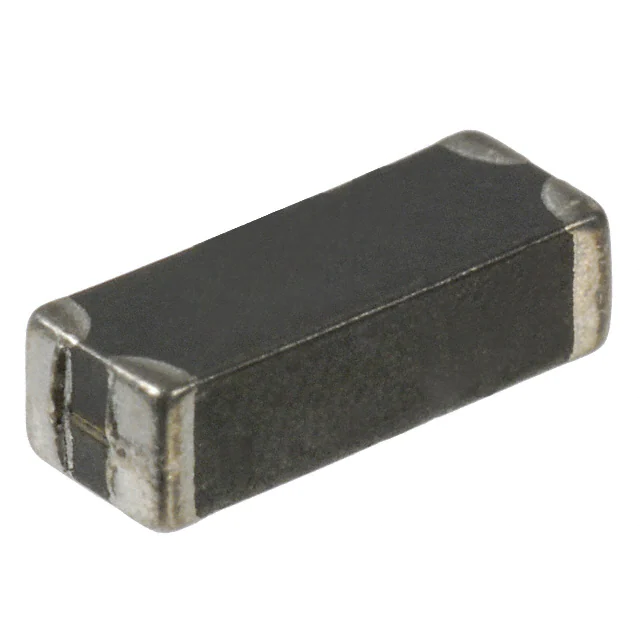

CM3312R111R-10CMC 5A 2LN 110 OHM SMD |
2,929 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 110 Ohms @ 100 MHz | - | 5A | 5mOhm | - | - | - | - | - | - | - | - |
|
CM5441Z161B-13FERRITE |
4,457 | - |
|
Datasheet | Vertical, 4 PC Pin | Power, Signal Line | 2 | 160 Ohms @ 100 MHz | - | 75A | 0.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
