Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7416-RCCMC 30MH 500MA 2LN TH |
1,261 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 500mA | 1.73Ohm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
B82790S0253N201CMC 25UH 500MA 2LN SMD AEC-Q200 |
810 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 25 µH @ 100 kHz | 500mA | 110mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EV20-2.0-02-0M8CMC 820UH 2A 2LN TH |
17,519 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 820 µH @ 400 Hz | 2A | 38mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
B82722A2302N001CMC 1.2MH 3A 2LN TH |
3,037 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 3A | 56mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82722A2102N001CMC 10MH 1A 2LN TH |
403 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 480mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CM5740Z171R-10CMC 20A 4LN 170 OHM SMD |
1,266 | - |
|
Datasheet | Vertical, 8 Flat Lead | Power Line | 4 | 170 Ohms @ 100 MHz | - | 20A | 1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM4440Z111R-10CMC 20A 3LN 110 OHM SMD |
420 | - |
|
Datasheet | Vertical, 6 Flat Lead | Power Line | 3 | 110 Ohms @ 100 MHz | - | 20A | 1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
744281100CMC 10UH 1.1A 2LN 10K OHM SMD |
3,172 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 10 kOhms @ 25 MHz | 10 µH @ 100 kHz | 1.1A | 120mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

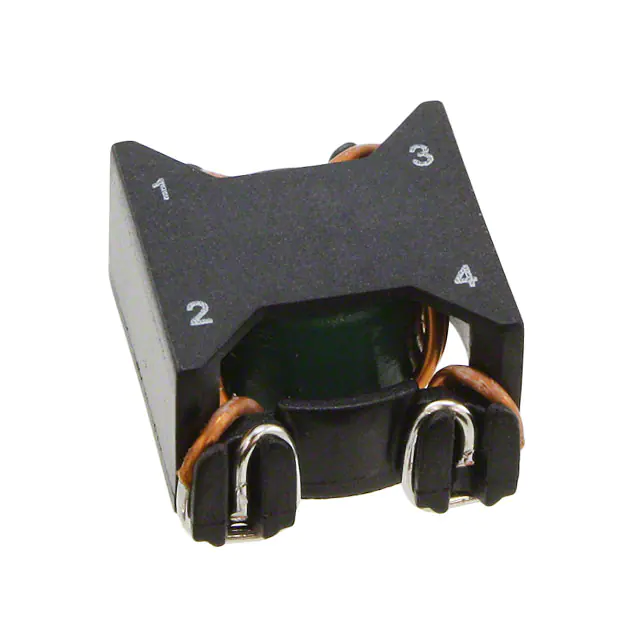

PA2750NLCMC 6A 2LN SMD |
1,347 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 6A | 9.4mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
P0354NLCMC 1.22A 2LN SMD |
1,028 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.22A | 200mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
B82790C0474N215CMC 470UH 500MA 2LN SMD AEC-Q200 |
8,393 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 470 µH @ 100 kHz | 500mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PE-53912NLTCMC 2.5A 2LN SMD |
2,073 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.5A | 80mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
PM3700-80-RCCMC 20MH 1A 2LN SMD |
16,864 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 20 mH @ 1 kHz | 1A | 250mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-20-RCCMC 500UH 6A 2LN SMD |
2,825 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 1 kHz | 6A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-40-RCCMC 1MH 4A 2LN SMD |
2,153 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 1 kHz | 4A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-10-RCCMC 200UH 7A 2LN SMD |
1,771 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 200 µH @ 1 kHz | 7A | 6mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-60-RCCMC 5MH 2A 2LN SMD |
885 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 5 mH @ 1 kHz | 2A | 70mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
51505CCMC 1.2A 2LN TH |
510 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.2A | 197mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-30-RCCMC 750UH 5.5A 2LN SMD |
471 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 1 kHz | 5.5A | 12mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
51504CCMC 4.1A 2LN TH |
435 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 4.1A | 27mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
