Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744841247CMC 47UH 2A 2LN TH |
662 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 47 µH @ 10 kHz | 2A | 40mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744841330CMC 30UH 3A 2LN TH |
291 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 µH @ 10 kHz | 3A | 26mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82720H0014A025CMC 10MH 200MA 4LN TH |
109 | - |
|
Datasheet | Vertical, 8 PC Pin | Signal Line | 4 | - | 10 mH @ 10 kHz | 200mA | 1.3Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | UL | - | - | - |
|
PE-53913NLCMC 1A 2LN SMD |
1,110 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 1A | 450mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
744273222CMC 30UH 1.4A 2LN 2.2K OHM SMD |
7,988 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 2.2 kOhms @ 60 MHz | 30 µH @ 100 kHz | 1.4A | 60mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744242220CMC 22UH 300MA 2LN 1.5K OHM SMD |
1,006 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 1.5 kOhms @ 65 MHz | 22 µH @ 100 kHz | 300mA | 230mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM3032V201R-10CMC 8A 4LN 200 OHM SMD |
2,177 | - |
|
Datasheet | Vertical, 8 Flat Lead | Power Line | 4 | 200 Ohms @ 100 MHz | - | 8A | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82721S0572A040CMC 1.18MH 5.7A 2LN SMD |
684 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1.18 mH @ 10 kHz | 5.7A | 17mOhm | 80V | 48V | - | - | - | - | - | - |
|
PA3927NLTCMC 3A 2LN SMD AEC-Q200 |
1,843 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 3A | 27mOhm | - | - | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
B82721S0572A020CMC 590UH 5.7A 2LN SMD |
198 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 590 µH @ 100 kHz | 5.7A | 17mOhm | 80V | 48V | - | - | - | - | - | - |
|

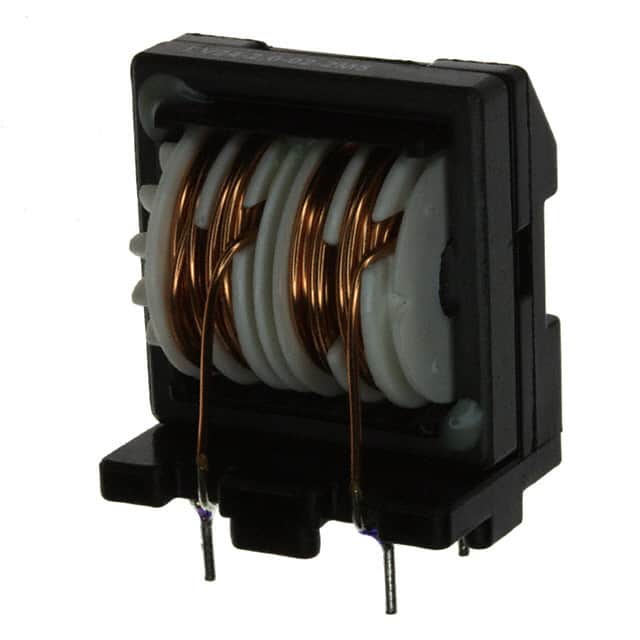

EV24-2.0-02-2M5CMC 2.5MH 2A 2LN TH |
654 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 2A | 62mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
744201CMC 4.7MH 200MA 4LN SMD |
1,784 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 4.7 mH @ 100 kHz | 200mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744205CMC 100UH 700MA 4LN SMD |
1,271 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 100 µH @ 100 kHz | 700mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMJ-4-101CMC 100UH 500MA 4LN SMD |
7,584 | - |
|
Datasheet | Horizontal, 8 Flat Lead | Signal Line | 4 | - | 100 µH @ 100 kHz | 500mA | 330mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
52705CCMC 2.2A 2LN TH |
174 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.2A | 107mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PE-53914NLTCMC 500MA 2LN SMD |
1,718 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 500mA | 850mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
|
PE-53914NLCMC 500MA 2LN SMD |
847 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 500mA | 850mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
744284100CMC 10UH 2.75A 2LN 10K OHM SMD |
699 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 10 kOhms @ 30 MHz | 10 µH @ 100 kHz | 2.75A | 40mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82791H0015A025CMC 10MH 100MA 2LN TH |
243 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 10 mH @ 10 kHz | 100mA | 1.2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J2402N001CMC 3.3MH 4A 2LN TH |
653 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
