Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-67540CMC 4LN SMD |
2,411 | - |
|
Datasheet | Vertical, 8 Gull Wing | Signal Line | 4 | - | - | - | 600mOhm | - | - | - | - | - | - | - | - |
|
PE-67539CMC 4LN TH |
2,026 | - |
|
Datasheet | Vertical, 8 PC Pin | Signal Line | 4 | - | - | - | 600mOhm | - | - | - | - | - | - | - | - |
|
ACM3225-800-2P-T001CMC 400MA 2LN 80 OHM SMD |
1,899 | - |
|
Datasheet | 1210 (3225 Metric), 4 Leads | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 400mA | 150mOhm | 20V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACM3225-161-2P-T001CMC 350MA 2LN 160 OHM SMD |
2,418 | - |
|
Datasheet | 1210 (3225 Metric), 4 Leads | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 350mA | 200mOhm | 20V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACM3225-271-2P-T001CMC 300MA 2LN 270 OHM SMD |
1,392 | - |
|
Datasheet | 1210 (3225 Metric), 4 Leads | Signal Line | 2 | 270 Ohms @ 100 MHz | - | 300mA | 300mOhm | 20V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ZJYS81R5-2P24T-G01CMC 500MA 2LN 1KOHM SMD AEC-Q200 |
2,707 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 500mA | 150mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ZJYS51R5-2PT-G01CMC 2A 2LN 200 OHM SMD |
4,361 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|

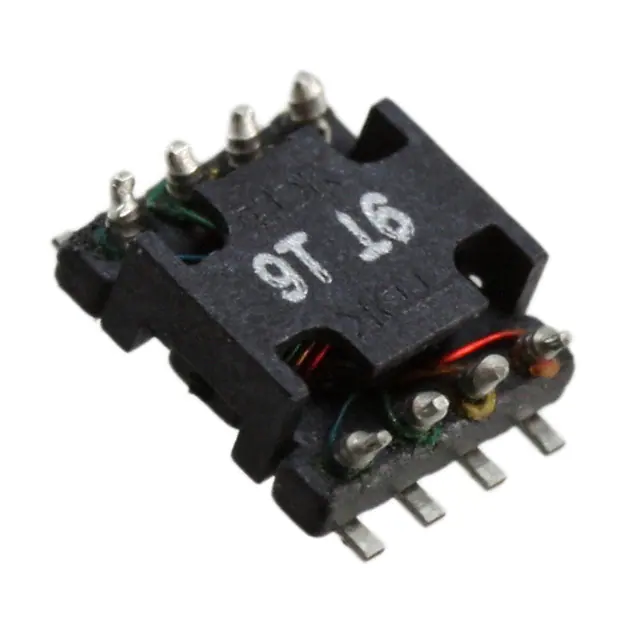

ZCYS51R5-M4PAT-01CMC 500MA 4LN 200 OHM SMD |
4,682 | - |
|
Datasheet | - | Signal Line | 4 | 200 Ohms @ 100 MHz | - | 500mA | 200mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
UF1717V-600Y1R0-03CMC 60UH 1A 2LN TH |
1,327 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 60 µH @ 1 kHz | 1A | 300mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717H-702Y0R3-01CMC 7MH 300MA 2LN TH |
3,592 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 300mA | 2.5Ohm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717V-342Y0R4-01CMC 3.4MH 400MA 2LN TH |
4,980 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.4 mH @ 1 kHz | 400mA | 1.3Ohm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717V-152Y0R6-01CMC 1.5MH 600MA 2LN TH |
1,122 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 1 kHz | 600mA | 550mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717H-152Y0R6-01CMC 1.5MH 600MA 2LN TH |
1,670 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 1 kHz | 600mA | 550mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717H-342Y0R4-01CMC 3.4MH 400MA 2LN TH |
3,984 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.4 mH @ 1 kHz | 400mA | 1.3Ohm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717V-702Y0R3-01CMC 7MH 300MA 2LN TH |
1,912 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 300mA | 2.5Ohm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
UF1815SG-351Y1R0-01CMC 350UH 1A 2LN TH |
4,608 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 350 µH @ 1 kHz | 1A | 300mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
CM1812R600R-10CMC 5A 2LN 60 OHM SMD |
4,304 | - |
|
Datasheet | 1812 (4532 Metric) | Power, Signal Line | 2 | 60 Ohms @ 100 MHz | - | 5A | 5mOhm | - | - | - | - | - | - | - | - |
|
|
CM1812X330R-10CMC 10A 2LN 33 OHM SMD |
2,698 | - |
|
Datasheet | 1812 (4532 Metric) | - | 2 | 33 Ohms @ 100 MHz | - | 10A | 3mOhm | - | - | - | - | - | - | - | - |
|
CM1922X330R-10CMC 10A 2LN 33 OHM SMD |
3,577 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 33 Ohms @ 100 MHz | - | 10A | 3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM3322U610R-10CMC 7A 2LN 61 OHM SMD |
4,792 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 61 Ohms @ 100 MHz | - | 7A | 15mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
