Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELF-22V060BCMC 6A 2LN TH |
1,176 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 6A | 27mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V070BCMC 7A 2LN TH |
3,205 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 7A | 22mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V020CCMC 2A 2LN TH |
3,500 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 2A | 170mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V025CCMC 2.5A 2LN TH |
2,883 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 115mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V030CCMC 3A 2LN TH |
2,918 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 3A | 91mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V035CCMC 3.5A 2LN TH |
4,941 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 3.5A | 69mOhm (Typ) | - | - | - | - | - | - | - | - |
|

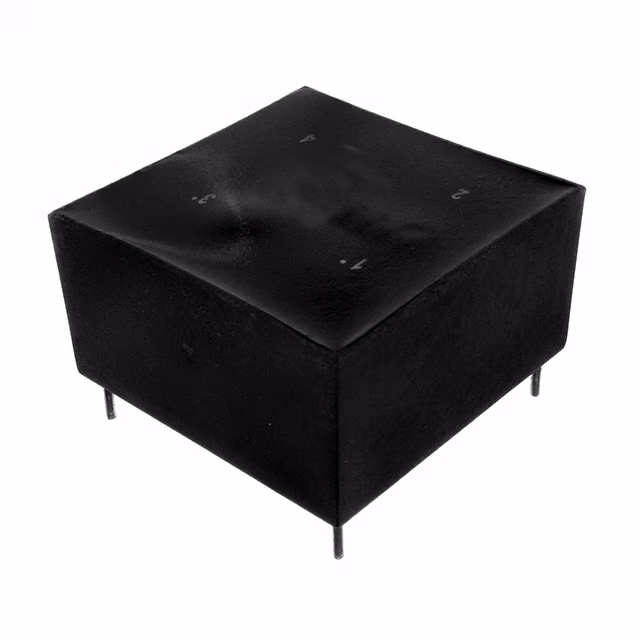

PE-62897CMC 2MH 7.5A 2LN TH |
2,950 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 7.5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM3312R111R-10CMC 5A 2LN 110 OHM SMD |
2,929 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 110 Ohms @ 100 MHz | - | 5A | 5mOhm | - | - | - | - | - | - | - | - |
|
ZCYS51R5-M6PT-01CMC 500MA 6LN 200 OHM SMD |
4,795 | - |
|
Datasheet | - | Signal Line | 6 | 200 Ohms @ 100 MHz | - | 500mA | 250mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ZCYS51R5-M8PT-01CMC 500MA 8LN 100 OHM SMD |
2,187 | - |
|
Datasheet | - | Signal Line | 8 | 100 Ohms @ 100 MHz | - | 500mA | 300mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
CM05RB01CMC 2A 2LN 700 OHM TH |
3,552 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 700 Ohms @ 70 MHz | - | 2A | 50mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM05RB02CMC 2LN TH |
2,201 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM05RB03CMC 1.5A 2LN 1.4K OHM TH |
3,347 | - |
|
Datasheet | Vertical, 4 PC Pin | Power, Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 60mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RA17CMC 2.4A 2LN 2K OHM TH |
1,134 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 2 kOhms @ 80 MHz | - | 2.4A | 40mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RA20CMC 5.5A 2LN 500 OHM TH |
2,630 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 500 Ohms @ 200 MHz | - | 5.5A | 20mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB01CMC 2A 2LN 2.5K OHM TH |
4,748 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 2.5 kOhms @ 30 MHz | - | 2A | 40mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB02CMC 2.4A 2LN 2K OHM TH |
2,852 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 2 kOhms @ 50 MHz | - | 2.4A | 40mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB03CMC 2A 4LN 1K OHM TH |
3,016 | - |
|
Datasheet | Vertical, 4 PC Pin | Power, Signal Line | 4 | 1 kOhms @ 50 MHz | - | 2A | 50mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB04CMC 3A 2LN 2K OHM TH |
1,522 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 2 kOhms @ 70 MHz | - | 3A | 40mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB05CMC 4A 2LN 450 OHM TH |
1,564 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 450 Ohms @ 100 MHz | - | 4A | 20mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
