Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR331-474AECMC 470UH 500MA 2LN SMD |
3,641 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 470 µH @ 100 kHz | 500mA | 280mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
SRF1306-501YLINE FILTER 50VDC 0.4A |
755 | - |
|
Datasheet | 8-SMD, Gull Wing | - | 2 | 1.2 kOhms @ 1 MHz | 500 µH @ 100 kHz | 400mA | 300mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF0602-181YCMC 180UH 300MA 2LN 500 OHM SMD |
708 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 3 MHz | 180 µH @ 10 kHz | 300mA | 250mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
7105-RCCMC 4.25MH 1A 2LN TH |
256 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | - | 2 | - | 4.25 mH @ 1 kHz | 1A | 125mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8109-RCCMC 30MH 2.3A 2LN TH |
467 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8111-RCCMC 12MH 4A 2LN TH |
280 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

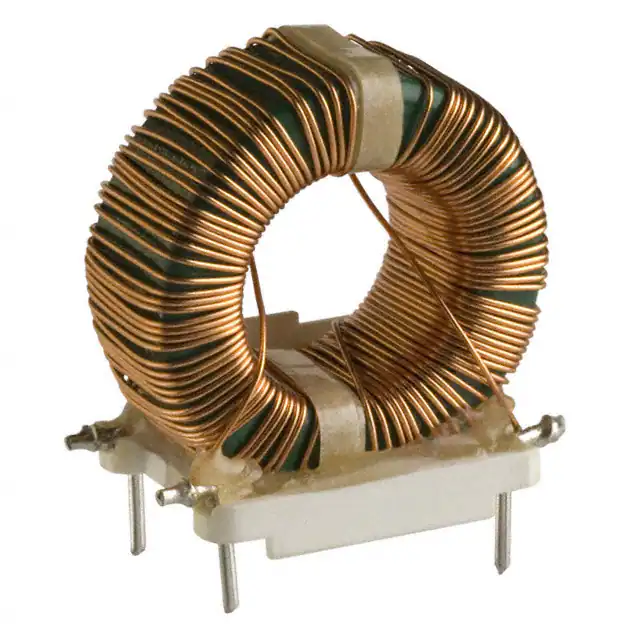

8110-RCCMC 20MH 2.9A 2LN TH |
1,917 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SRF3225TAC-101YCMC 100UH 150MA 2LN 5.1KOHM SMD |
1,558 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SRF3225TAC-220YCMC 22UH 250MA 2LN 1.1KOHM SMD |
1,078 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 1.1 kOhms @ 10 MHz | 22 µH @ 100 kHz | 250mA | 500mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SRF4532TA-601YCMC 1.7UH 600 OHM 2.5A SMD |
1,937 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | 1.7 µH @ 100 kHz | 2.5A | 60mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
