Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF0504-152YCMC 3.6UH 1A 2LN 1.5KOHM SMD |
10,743 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 100 MHz | 3.6 µH @ 100 kHz | 1A | 100mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF0504-102YCMC 2.7UH 1.5A 2LN 1KOHM SMD |
21,803 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | 2.7 µH @ 100 kHz | 1.5A | 60mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF0504-191YCMC 600NH 5A 2LN 190 OHM SMD |
635 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 190 Ohms @ 100 MHz | 600 nH @ 100 kHz | 5A | 20mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DR331-513BECMC 51UH 500MA 2LN SMD |
7,532 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 300mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
SRF7035A-701YCMC 7UH 4A 2LN 700OHM SMD |
7,784 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | 700 Ohms @ 100 MHz | 7 µH @ 100 kHz | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SRF7035A-132YCMC 10.4UH 2.5A 2LN 1.3KOHM SMD |
1,087 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | 1.3 kOhms @ 100 MHz | 10.4 µH @ 100 kHz | 2.5A | 25mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
7414-RCCMC 20MH 600MA 2LN TH |
6,578 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 600mA | 1.11Ohm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
SRF0602-331YCMC 330UH 300MA 2LN 900 OHM SMD |
4,610 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 900 Ohms @ 3 MHz | 330 µH @ 10 kHz | 300mA | 300mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF1206A-701YCMC 9UH 8A 2LN 700OHM SMD |
704 | - |
|
Datasheet | 4-SMD | Power Line | 2 | 700 Ohms @ 100 MHz | 9 µH @ 100 kHz | 8A | 6mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

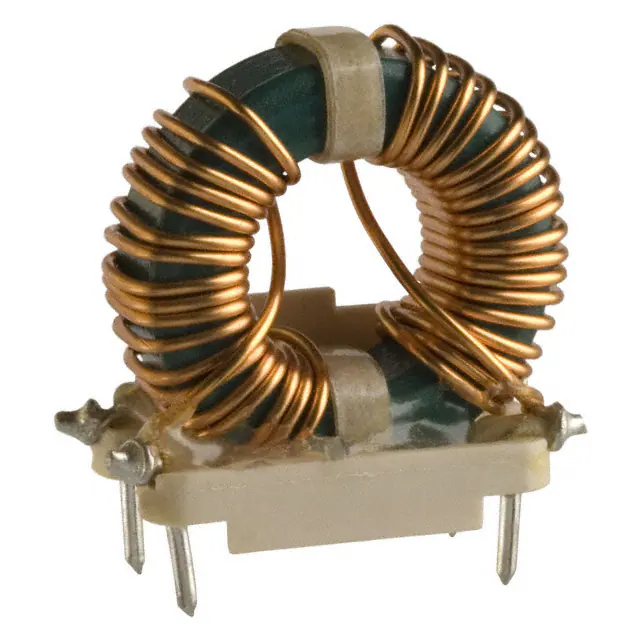

8107-RCCMC 2MH 6.6A 2LN TH |
968 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
