Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8103-RCCMC 1MH 4.8A 2LN TH |
616 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 4.8A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

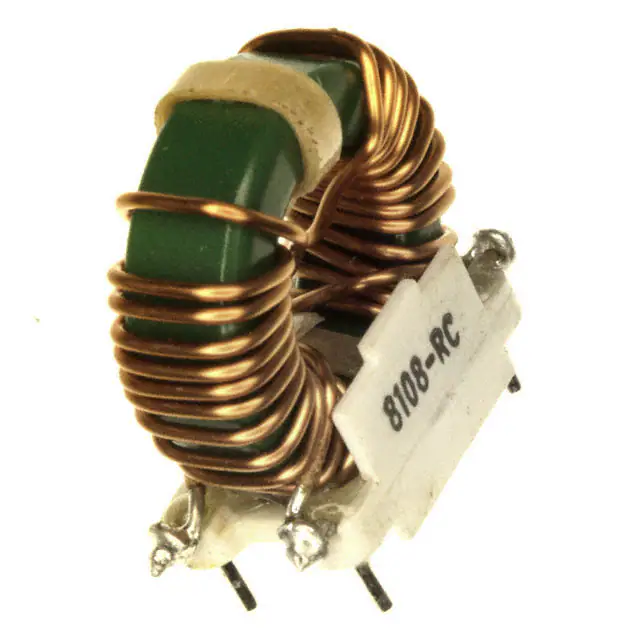

8108-RCCMC 1MH 10A 2LN TH |
2,015 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7124-RCCMC 2.55MH 10A 2LN TH |
1,155 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | - | 2 | - | 2.55 mH @ 1 kHz | 10A | 20mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8114-RCCMC 2.5MH 12.5A 2LN TH |
1,270 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8120-RCCMC 2.4MH 17A 2LN TH |
539 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SRF2012A-900YACMC 400MA 2LN 90OHM SMD AEC-Q200 |
39,663 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-121YACMC 400MA 2LN 120 OHM SMD |
21,821 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 120 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-361YACMC 300MA 2LN 360 OHM SMD |
11,929 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 360 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012A-121YACMC 400MA 2LN 120OHM SMD AECQ200 |
7,147 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012A-161YACMC 350MA 2LN 160OHM SMD AECQ200 |
3,480 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 350mA | 350mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
