Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM6296R-654CMC 650UH 5.5A 2LN SMD |
207 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 650 µH @ 1 kHz | 5.5A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

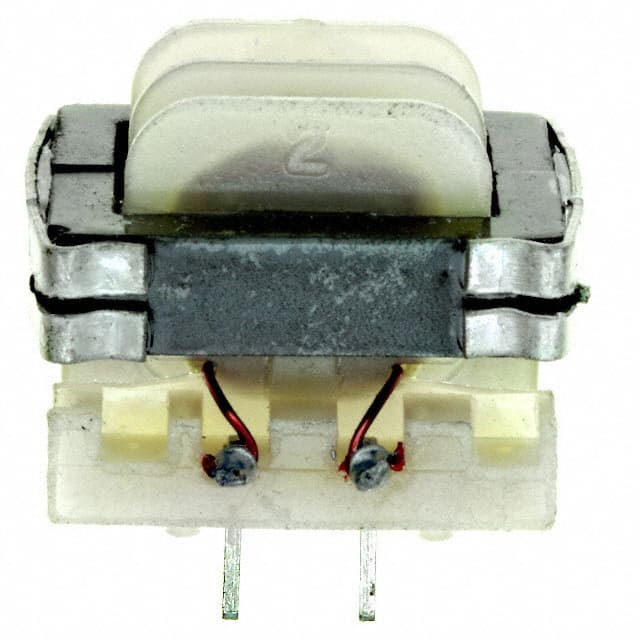

CM9900-104CMC 100UH 2.8A 2LN TH |
388 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 100 µH @ 1 kHz | 2.8A | 25mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM6350R-154CMC 150UH 2.7A 2LN SMD |
1,679 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 150 µH @ 10 kHz | 2.7A | 20mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6296R-104CMC 100UH 9.5A 2LN SMD |
250 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 1 kHz | 9.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296R-204CMC 200UH 8.5A 2LN SMD |
250 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 200 µH @ 1 kHz | 8.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

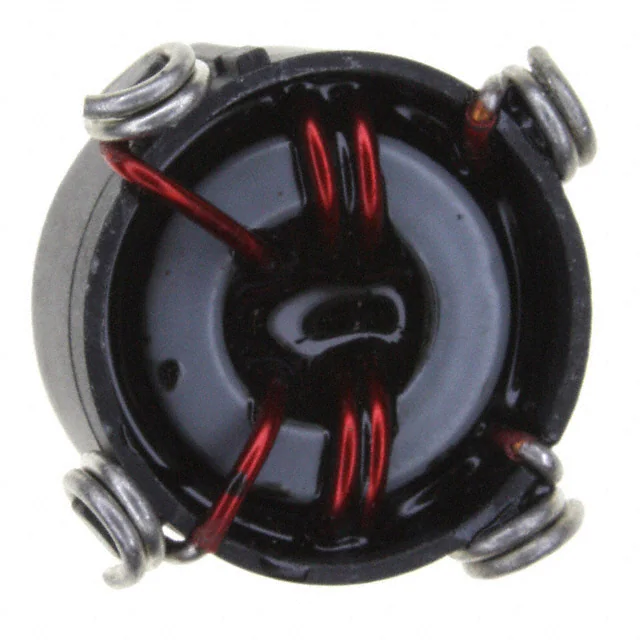

CM6296-105CMC 1MH 3.5A 2LN SMD |
200 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 1 kHz | 3.5A | 50mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296R-454CMC 450UH 6.5A 2LN SMD |
167 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 450 µH @ 1 kHz | 6.5A | 24mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM6350-105CMC 1MH 900MA 2LN SMD |
519 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 10 kHz | 900mA | 130mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6350R-225CMC 2.2MH 600MA 2LN SMD |
152 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 2.2 mH @ 10 kHz | 600mA | 300mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6149R-473CMC 47UH 2.5A 2LN SMD |
800 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 47 µH @ 10 kHz | 2.5A | 15mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
