Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM6149R-683CMC 68UH 2A 2LN SMD |
190 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 68 µH @ 10 kHz | 2A | 20mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6149-474CMC 470UH 600MA 2LN SMD |
100 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 470 µH @ 10 kHz | 600mA | 125mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

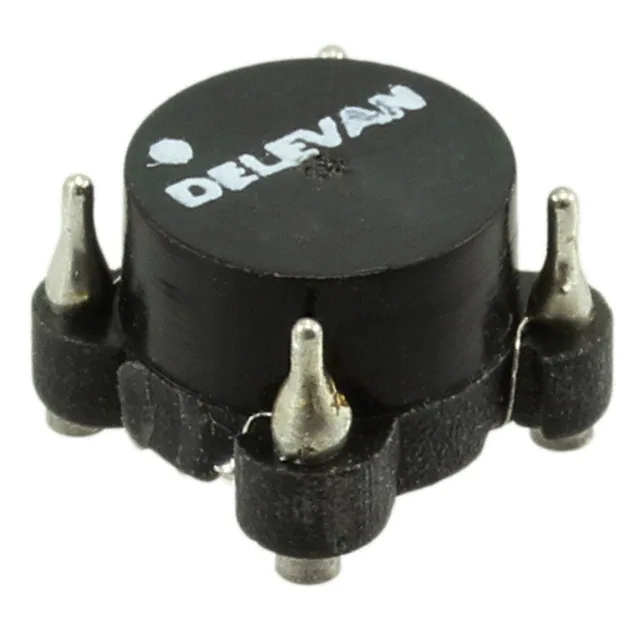

CM6149R-225CMC 2.2MH 180MA 2LN SMD |
3,446 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 2.2 mH @ 10 kHz | 180mA | 750mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6460-334CMC 330UH 4A 2LN SMD |
100 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 330 µH @ 10 kHz | 4A | 17mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460-504CMC 500UH 3.3A 2LN SMD |
100 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 10 kHz | 3.3A | 24mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460R-335CMC 3.3MH 850MA 2LN SMD |
4,627 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 3.3 mH @ 10 kHz | 850mA | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460R-754CMC 750UH 2.7A 2LN SMD |
2,373 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 10 kHz | 2.7A | 35mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6560-104CMC 100UH 8.5A 2LN SMD |
100 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 10 kHz | 8.5A | 5mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6560R-504CMC 500UH 3.6A 2LN SMD |
2,776 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 10 kHz | 3.6A | 23mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6350R-155CMC 1.5MH 750MA 2LN SMD |
2,165 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1.5 mH @ 10 kHz | 750mA | 190mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
