Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82724B2202N020CMC |
227 | - |
|
Datasheet | - | Power Line | 2 | 260 mOhms @ 100 MHz | 220 µH @ 100 MHz | 6A | 260mOhm | - | 250V | - | - | UR, VDE | - | - | - |
|
B82116S1221L127CMC 2.9UH 25A 1LN TH AEC-Q200 |
142 | - |
|
Datasheet | Radial, Vertical Cylinder (Open) | Power Line | 2 | - | 2.9 µH @ 10 kHz | 25A | 1.4mOhm (Typ) | - | - | -40°C ~ 180°C | AEC-Q200 | - | - | - | - |
|
|
B82116S1221L026CMC 3.1UH 25A 1LN TH AEC-Q200 |
153 | - |
|
Datasheet | Radial, Vertical Cylinder (Open) | Power Line | 2 | - | 3.1 µH @ 10 kHz | 25A | 1.8mOhm (Typ) | - | - | -40°C ~ 180°C | AEC-Q200 | - | - | - | - |
|

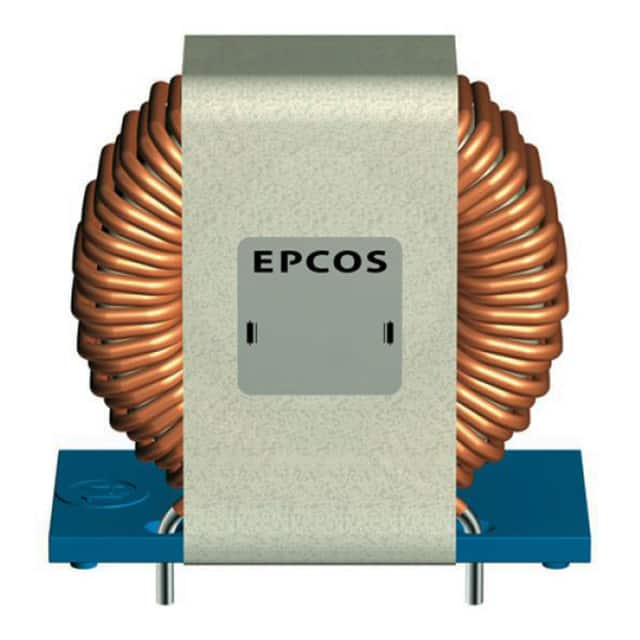

B82725S2103N003CMC 2.8MH 10A 2LN TH |
377 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.8 mH @ 10 kHz | 10A | 12.5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82746S4143A040CMC 3.2MH 13A 3LN TH |
190 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 3.2 mH @ 10 kHz | 13A | 6.5mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|

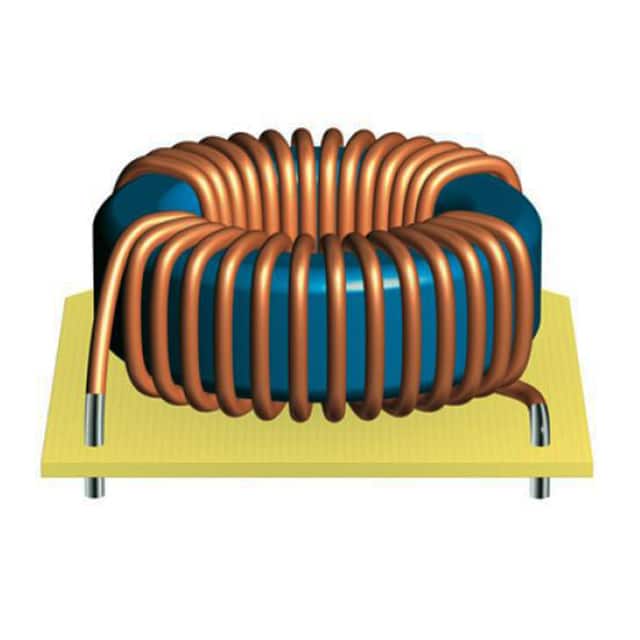

B82726S2183N020CMC 1.3MH 18A 2LN TH |
120 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 10 kHz | 18A | 5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82786C0513H002CMC 51UH 200MA 2LN 2.6KOHM SMD |
5,755 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.6 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 700mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82730U3751A020CMC 3.9MH 750MA 2LN TH |
728 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 750mA | 700mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
B82720H0015A028CMC 28MH 400MA 2LN TH |
849 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 28 mH @ 10 kHz | 400mA | 1.2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82731T2182A020CMC 3.3MH 1.8A 2LN TH |
571 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.8A | 200mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
