Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

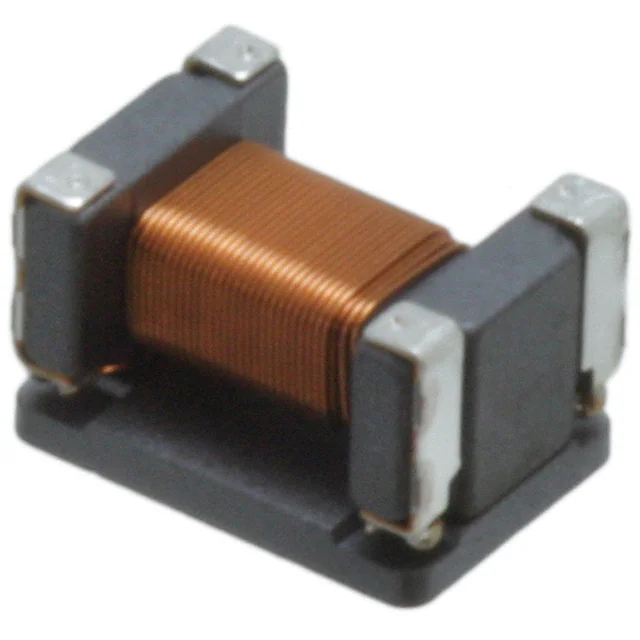

B82787C0513H002CMC 51UH 200MA 2LN 2.8KOHM SMD |
13,526 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | - | - | - | - | - |
|
B82793C0225N265CMC 2.2MH 500MA 2LN SMD AEC-Q200 |
4,848 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 2.2 mH @ 100 kHz | 500mA | 400mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82789C0104N002CMC 100UH 150MA 2LN SMD AEC-Q200 |
14,086 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | 42V | -55°C ~ 125°C | - | - | - | - | - |
|
|
B82789C0513N002CMC 51UH 250MA 2LN SMD AEC-Q200 |
13,659 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 250mA | 550mOhm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
B82789C0513H002CMC 51UH 250MA 2LN SMD AEC-Q200 |
22,811 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 250mA | 550mOhm | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82789C0104H002CMC 100UH 150MA 2LN SMD AEC-Q200 |
10,294 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | 42V | -55°C ~ 150°C | - | - | - | - | - |
|
|
B82793S0513N201CMC 51UH 800MA 2LN SMD AEC-Q200 |
7,084 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 800mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82790C0225N265CMC 2.2MH 400MA 2LN SMD AEC-Q200 |
17,558 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 2.2 mH @ 10 kHz | 400mA | 400mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82793C0475N265CMC 4.7MH 400MA 2LN SMD AEC-Q200 |
5,066 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 400mA | 550mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82793C0113N201CMC 11UH 800MA 2LN SMD AEC-Q200 |
2,927 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 11 µH @ 100 kHz | 800mA | 80mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
