Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
B82746S4203A020RING CORE DBL CHOKE 75MH 20A |
110 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 750 µH @ 100 kHz | 20A | 2.7mOhm | - | 500/300V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82767S4123N030RING CORE CHOKE 4X1.45MH 12A |
109 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 1.45 mH @ 10 kHz | 12A | 7.1mOhm (Typ) | - | 500/300V | -40°C ~ 125°C | - | - | - | - | - |
|
B82793C0206N265CMC 20MH 100MA 2LN SMD |
3,878 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 20 mH @ 100 kHz | 100mA | 1.8Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82793C0476N265CMC 47MH 100MA 2LN SMD AEC-Q200 |
655 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 47 mH @ 10 kHz | 100mA | 3.7Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82722S0193A040CMC 380UH 19A 2LN SMD |
4,251 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 380 µH @ 100 kHz | 19A | 3mOhm | 80V | 48V | - | - | - | - | - | - |
|
B82727E6443A040CMC 1MH 44A 2LN TH |
3,547 | - |
|
Datasheet | Vertical, 8 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 44A | 1.35mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
B82727E6403A040CMC 1.5MH 40A 2LN TH |
3,618 | - |
|
Datasheet | Vertical, 8 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 40A | 1.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
B82790C0502N201CMC 5UH 1A 2LN SMD AEC-Q200 |
3,424 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 5 µH @ 100 kHz | 1A | 60mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

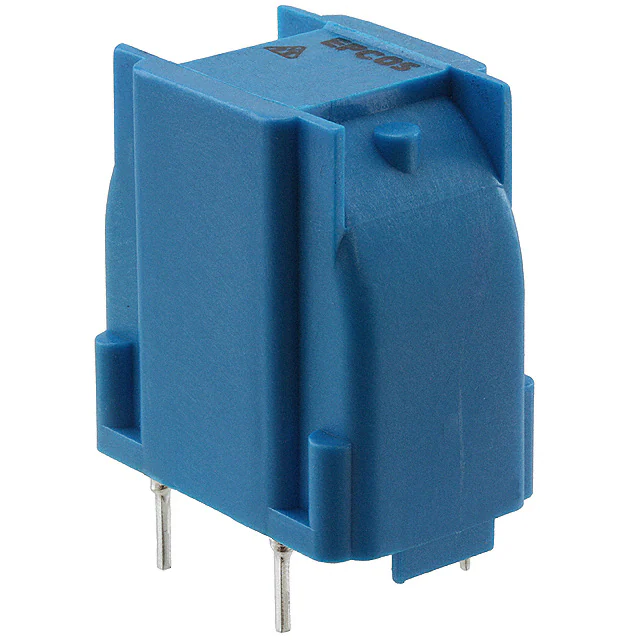

B82723J2202N001CMC 5.6MH 2A 2LN TH |
2,362 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2A | 160mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82725J2602N020CMC 3.9MH 6A 2LN TH |
2,325 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 6A | 30mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
