Current Sense Transformers
Compare the current Current Sense Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

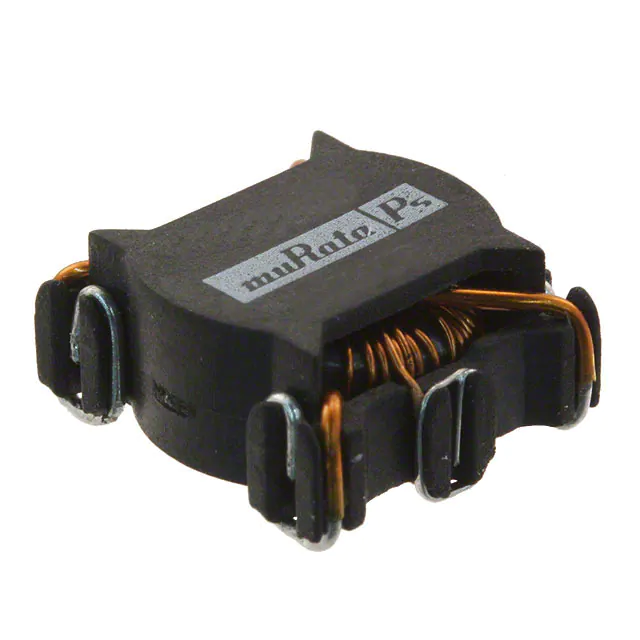

55050C-RCURR SENSE XFMR 1:1:50 15A SMD |
3,143 | - |
|
Datasheet | 5500 | Tape & Reel (TR) | Obsolete | 50kHz ~ 500kHz | Invasive | 15 A | 3.8 mH | - | 1:1:50 | - | 2.3mOhm Primary, 350mOhm Secondary | - | Surface Mount | 0.575" L x 0.496" W (14.60mm x 12.60mm) | 0.280" (7.10mm) | - |
|
55100C-RCURR SENSE XFMR 1:1:100 15A SMD |
3,293 | - |
|
Datasheet | 5500 | Tape & Reel (TR) | Obsolete | 50kHz ~ 500kHz | Invasive | 15 A | 14.8 mH | - | 1:1:100 | - | 2.3mOhm Primary, 850mOhm Secondary | - | Surface Mount | 0.575" L x 0.496" W (14.60mm x 12.60mm) | 0.280" (7.10mm) | - |
|
55050CCURR SENSE XFMR 1:1:50 15A SMD |
4,557 | - |
|
Datasheet | 5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 3.8 mH | - | 1:1:50 | - | 2.3mOhm Primary, 350mOhm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|
|
55100CCURR SENSE XFMR 1:1:100 15A SMD |
1,660 | - |
|
Datasheet | 5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 14.8 mH | - | 1:1:100 | - | 2.3mOhm Primary, 850mOhm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|
55200CCURR SENSE XFMR 1:1:200 15A SMD |
1,628 | - |
|
Datasheet | 5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 60 mH | - | 1:1:200 | - | 2.3mOhm Primary, 3.6Ohm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|
7020-01036-0CURR SENSE XFMR 5A IN-LINE |
2,163 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 50:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
7020-01038-0CURR SENSE XFMR 5A IN-LINE |
4,932 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 100:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
7020-01040-0CURR SENSE XFMR 5A IN-LINE |
1,171 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 200:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
39-3681409CURR SENSE XFMR IN-LINE |
2,059 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.560" Dia (39.60mm) | 1.098" (27.90mm) | Wire Leads |
|
7020-01037-0CURR SENSE XFMR 5A IN-LINE |
4,076 | - |
|
Datasheet | - | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 75:5 | - | - | Free Hanging (In-Line) | 2.700" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
Current Sense Transformers FAQ
How can I narrow the current Current Sense Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Current Sense Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
