Current Sense Transformers
Browse available Current Sense Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
53100CCURR SENSE XFMR 1:100 10A SMD |
3,949 | - |
|
Datasheet | 5300 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 2 mH | - | 1:100 | - | 7mOhm Primary, 5.6Ohm Secondary | - | Surface Mount | 0.283" L x 0.327" W (7.20mm x 8.30mm) | 0.213" (5.40mm) | Gull Wing |
|
B82801B0925A200CURR SENSE XFMR 1:200 20A SMD |
4,506 |
1+：$1.96000 10+：$1.77600 25+：$1.70640 50+：$1.65500 100+：$1.60480 250+：$1.54024 |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 8 mH | 100VµS | 1:200 | - | 0.6mOhm Primary, 33.24Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
PA1005.100NLTCURR SENSE XFMR 1:100 20A SMD |
2,622 |
1+：$2.26000 10+：$2.04200 25+：$1.96160 50+：$1.90220 100+：$1.84430 250+：$1.77000 |
|
Datasheet | PA1005.XXXNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 2 mH | - | 1:100 | - | 0.75mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
B82801B0205A100CURR SENSE XFMR 1:100 SMD |
3,347 | - |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 2 mH | - | 1:100 | - | 0.8mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
ACST-261-1CURRENT SENSE TRANSFORMER |
3,182 | - |
|
Datasheet | ACST-200 | Tray | Active | 50Hz ~ 200Hz | Invasive | 30 A | 2.4 H | - | 1:1000 | 1000:1 | 0.6mOhm | - | Through Hole | 0.807" L x 0.690" W (20.50mm x 17.53mm) | 0.650" (16.51mm) | PC Pin |
|
ASM-010CURR SENSE XFMR 10A T/H |
7,785 |
1+：$5.01000 10+：$4.52600 25+：$4.34440 50+：$4.21100 100+：$4.08100 250+：$3.91436 500+：$3.79212 1000+：$3.67318 |
|
Datasheet | ASM | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | - | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
P8205NLTCURR SENSE XFMR 1:50 SMD |
1,756 |
1+：$2.71000 10+：$2.45400 25+：$2.35680 50+：$2.28540 100+：$2.21550 250+：$2.12580 |
|
Datasheet | P820X | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 500 µH | - | 1:50 | - | 6mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
CSE187LCURR SENSE XFMR 1:500 30A T/H |
16,892 |
1+：$3.10000 15+：$2.75200 30+：$2.66833 60+：$2.58717 105+：$2.52286 255+：$2.42376 510+：$2.34859 |
|
Datasheet | CSE | Bulk | Active | 50Hz ~ 400Hz | Invasive | 30 A | - | - | 1:500 | - | 3mOhm Primary, 21Ohm Secondary | - | Through Hole | 0.860" L x 0.720" W (21.84mm x 18.29mm) | 0.710" (18.03mm) | PC Pin |
|
B82801C0565A100CURR SENSE XFMR 1:100 SMD |
0 |
1+：$3.26000 10+：$2.94800 25+：$2.83040 50+：$2.74400 100+：$2.65980 |
|
Datasheet | B82801C | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 5.6 mH | - | 1:100 | - | 0.28mOhm Primary, 1Ohm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
PE-51688NLCURR SENSE XFMR 20A T/H |
926 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 80 mH | - | - | 200:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
PE-68280NLTCURR SENSE XFMR 1:1:100 SMD |
4,303 |
1+：$3.58000 10+：$3.24100 25+：$3.11200 50+：$3.01680 100+：$2.92410 |
|
Datasheet | PE-68XXXNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 14.8 mH | - | 1:1:100 | - | 1.15mOhm Primary, 930mOhm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|
AS-100CURR SENSE XFMR 1:50 T/H |
1,157 |
1+：$3.75000 10+：$3.39300 25+：$3.25760 50+：$3.15800 100+：$3.06080 250+：$2.93616 500+：$2.84470 1000+：$2.75571 |
|
Datasheet | AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 6 mH | 175VµS | 1:50 | - | 600mOhm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

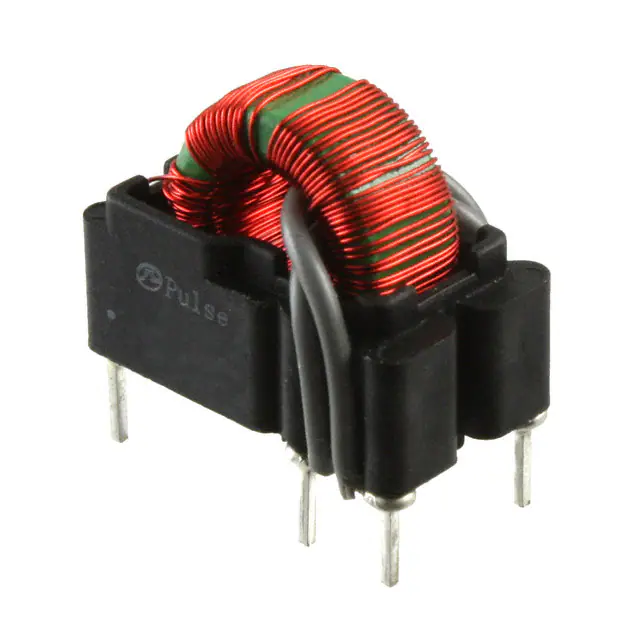

P0582NLCURR SENSE XFMR 100:1:1 35A T/H |
5,108 |
1+：$3.98000 10+：$3.59500 25+：$3.45120 80+：$3.27525 160+：$3.17394 320+：$3.07531 560+：$2.99759 1040+：$2.91358 |
|
Datasheet | THT | Tray | Active | 50kHz ~ 500kHz | Invasive | 35 A | 19 mH | - | 100:1:1 | - | 1.4Ohm Primary, 1.7mOhm Secondary | - | Through Hole | 0.810" L x 0.580" W (20.57mm x 14.73mm) | 0.750" (19.05mm) | PC Pin |
|
AX-0500CURR SENSE XFMR 5A T/H |
922 |
1+：$6.09000 10+：$5.50000 25+：$5.27880 50+：$5.11600 100+：$4.95760 250+：$4.75448 500+：$4.60558 1000+：$4.46073 |
|
Datasheet | AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 500:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
CSE187L-PCURR SENSE XFMR 1:500 30A T/H |
1,972 |
1+：$4.73000 10+：$4.27900 25+：$4.10720 50+：$3.98100 100+：$3.85810 250+：$3.70048 500+：$3.58490 1000+：$3.47244 |
|
Datasheet | CSE | Bulk | Active | 50Hz ~ 400Hz | Invasive | 30 A | - | - | 1:500 | - | 3mOhm Primary, 21Ohm Secondary | - | Through Hole | 0.875" L x 0.875" W (22.23mm x 22.23mm) | 0.720" (18.29mm) | PC Pin |
|
AC1020CURR SENSE XFMR 20A T/H |
18,676 |
1+：$6.40000 10+：$5.77800 25+：$5.54520 50+：$5.37420 100+：$5.20760 250+：$4.99404 500+：$4.83750 1000+：$4.68526 |
|
Datasheet | AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
T60404E4626X502CURR SENSE XFMR 1:2500 100A TH |
5,210 | - |
|
Datasheet | - | Box | Active | 50Hz | Non-Invasive (Solid Core) | 100 A | 102 H | - | 1:2500 | 2500:1 | 41.7Ohm | - | Through Hole | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 1.339" (34.00mm) | PC Pin |
|
|
AC1015CURR SENSE XFMR 15A T/H |
3,828 |
1+：$6.82000 10+：$6.16000 25+：$5.91200 50+：$5.72920 100+：$5.55150 250+：$5.32360 500+：$5.15658 1000+：$4.99419 |
|
Datasheet | AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|

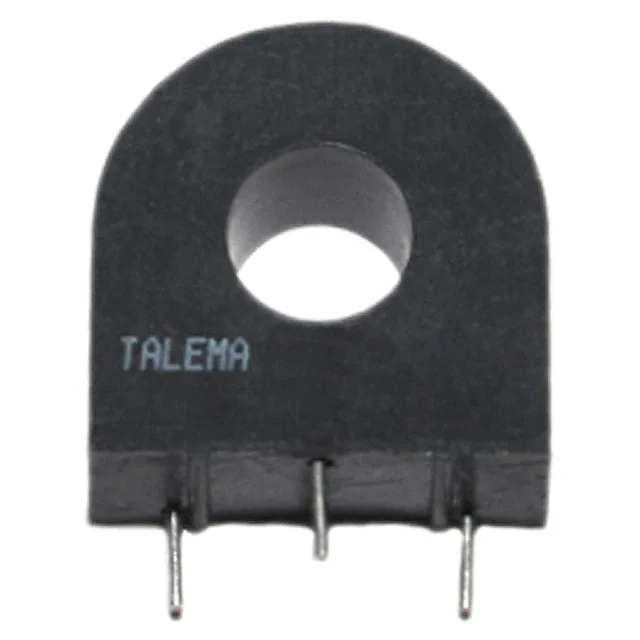

AC1005CURR SENSE XFMR 5A T/H |
6,596 |
1+：$6.82000 10+：$6.16000 25+：$5.91200 50+：$5.72920 100+：$5.55150 250+：$5.32360 500+：$5.15658 1000+：$4.99419 |
|
Datasheet | AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
CT-1005CURR SENSE XFMR 5A T/H |
3,985 | - |
|
Datasheet | CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
Current Sense Transformers FAQ
What Current Sense Transformers components can I source from EGOO?
You can browse available Current Sense Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Current Sense Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
