Current Sense Transformers
Browse available Current Sense Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

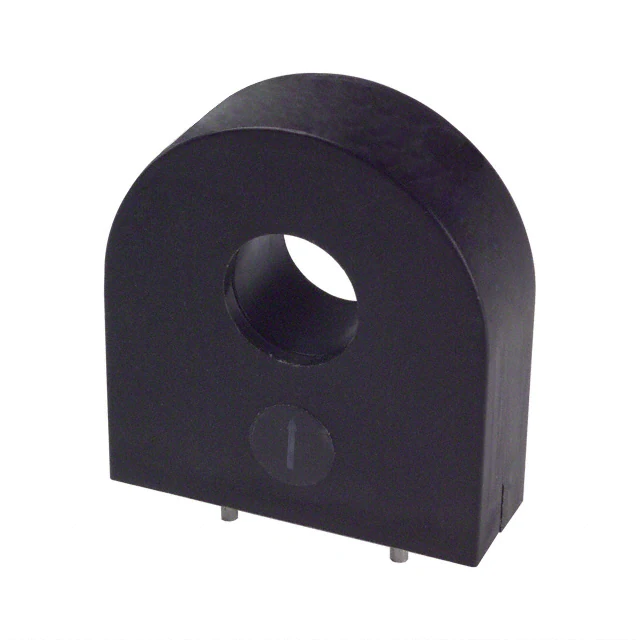

CST206-1ACURR SENSE XFMR 110A T/H |
3,197 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 110 A | 14 mH | 2000VµS | - | 100:1 | 580mOhm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
PE-63587NLCURR SENSE XFMR 20A T/H |
274 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|

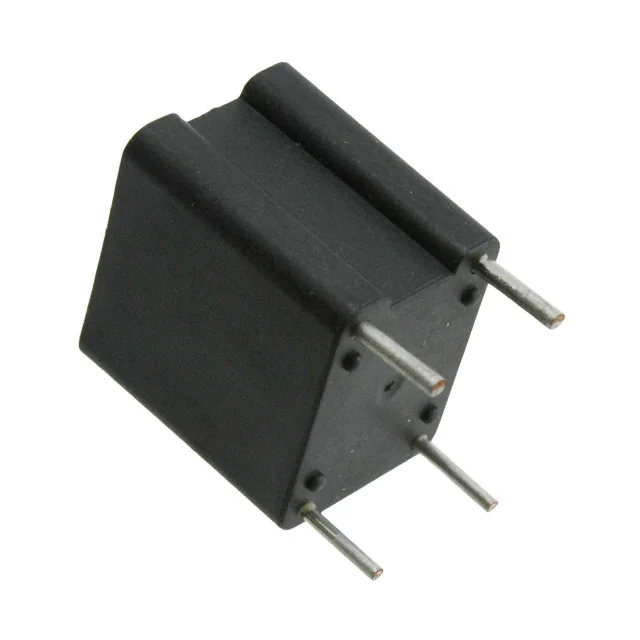

PE-67100NLCURR SENSE XFMR 37A T/H |
155 | - |
|
Datasheet | - | Tray | Active | 10kHz ~ 200kHz | Invasive | 37 A | 20 mH | - | 1:100 | 100:1 | 56Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.565" L x 0.750" W (14.35mm x 19.05mm) | 0.750" (19.05mm) | PC Pin |
|

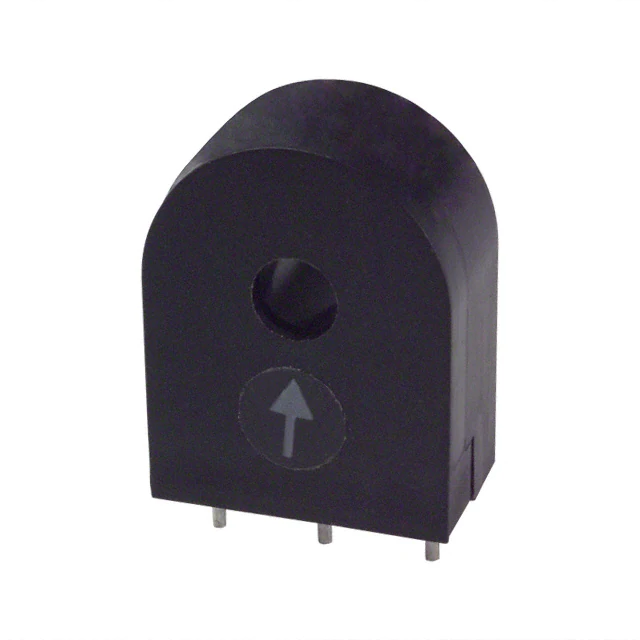

CST306-1ACURR SENSE XFMR 35A T/H |
4,503 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 35 A | 3.5 mH | 500VµS | - | 50:1 | 340mOhm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
|
CST306-3ACURR SENSE XFMR 25A T/H |
2,693 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 55 mH | 2000VµS | - | 200:1 | 3.75Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|

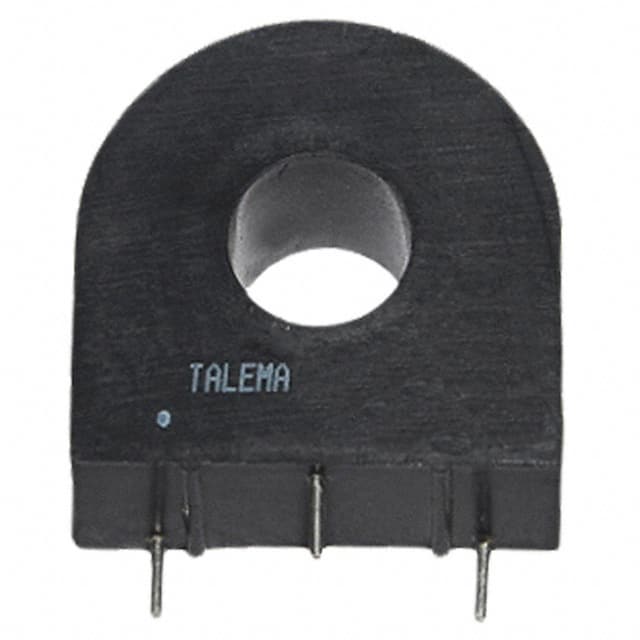

AC1030CURR SENSE XFMR 30A T/H |
2,175 | - |
|
Datasheet | AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | 1000:1 | 48Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
|
PE-67200NLCURR SENSE XFMR 38A T/H |
986 | - |
|
Datasheet | - | Tray | Active | 10kHz ~ 200kHz | Invasive | 38 A | 80 mH | - | - | 200:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.565" L x 0.750" W (14.35mm x 19.05mm) | 0.750" (19.05mm) | PC Pin |
|
AC1050CURR SENSE XFMR 50A T/H |
3,920 | - |
|
Datasheet | AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 50 A | - | - | - | 1000:1 | 49.3Ohm | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|
PA3209NLCURR SENSE XFMR ROGOWSKI 1000A |
4,257 | - |
|
Datasheet | Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 1000 A | 3 mH | - | Rogowski Coil | - | 42Ohm Max | - | Chassis Mount | 2.240" L x 2.098" W (56.90mm x 53.30mm) | 0.580" (14.73mm) | Wire Leads |
|
CT-1020CURR SENSE XFMR 20A T/H |
1,348 | - |
|
Datasheet | CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
|
CST206-2ACURR SENSE XFMR 80A T/H |
1,768 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 80 A | 56 mH | 4000VµS | - | 200:1 | 3.5Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
|
CST206-3ACURR SENSE XFMR 70A T/H |
1,133 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 70 A | 130 mH | 6000VµS | - | 300:1 | 12.4Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
T60404E4626X501CURR SENSE XFMR 1:2500 100A TH |
7,456 | - |
|
Datasheet | - | Box | Active | 50Hz | Non-Invasive (Solid Core) | 100 A | 2.1 H | - | 1:2500 | 2500:1 | 44Ohm | - | Through Hole | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 1.339" (34.00mm) | PC Pin |
|

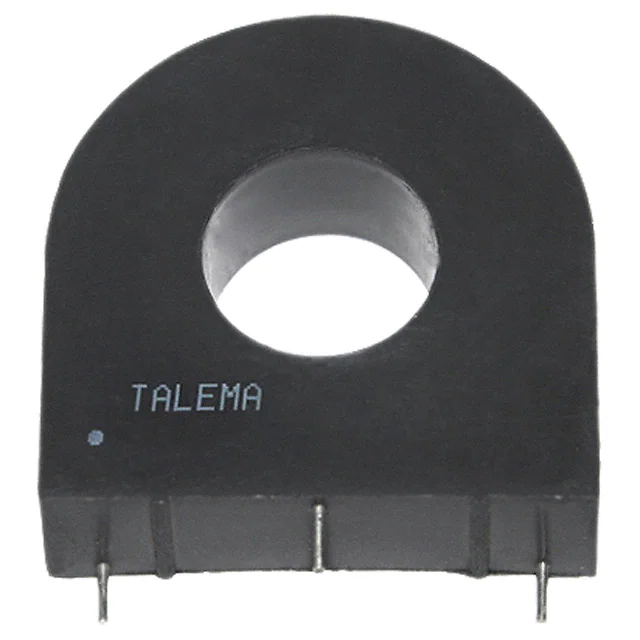

AC1100CURR SENSE XFMR 100A T/H |
953 | - |
|
Datasheet | AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 100 A | - | - | - | 1000:1 | 21.3Ohm | - | Through Hole | 1.752" L x 0.563" W (44.50mm x 14.30mm) | 1.752" (44.50mm) | PC Pin |
|
CR8320-1600CURR SENSE XFMR 10A T/H |
1,950 | - |
|
Datasheet | CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1600:1 | 95Ohm | - | Through Hole | 0.764" L x 0.323" W (19.40mm x 8.20mm) | 0.768" (19.50mm) | PC Pin |
|
CR8401-1000-GCURR SENSE XFMR 4A IN-LINE |
772 | - |
|
Datasheet | CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | 49Ohm | - | Free Hanging (In-Line) | 0.880" L x 0.690" W (22.35mm x 17.53mm) | 0.325" (8.26mm) | Wire Leads |
|
CR8410-1000CURR SENSE XFMR 20A IN-LINE |
435 | - |
|
Datasheet | CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 41Ohm | - | Free Hanging (In-Line) | 1.094" L x 0.866" W (27.80mm x 22.00mm) | 0.323" (8.20mm) | Wire Leads |
|
101990029CURR SENSE XFMR 100A:0.05A 100A |
263 | - |
|
Datasheet | SCT013 | Bulk | Active | - | Non-Invasive (Split Core) | 100 A | - | - | 1:1800 | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|
CR8348-2000CURR SENSE XFMR 50A T/H |
337 | - |
|
Datasheet | CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 50 A | - | - | - | 2000:1 | 106Ohm | - | Through Hole | 0.925" L x 0.433" W (23.50mm x 11.00mm) | 0.984" (25.00mm) | PC Pin |
|
CR8349-1500CURR SENSE XFMR 75A T/H |
2,531 | - |
|
Datasheet | CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 75 A | - | - | - | 1500:1 | 80Ohm | - | Through Hole | 1.024" L x 0.670" W (26.00mm x 17.00mm) | 1.102" (28.00mm) | PC Pin |
Current Sense Transformers FAQ
What Current Sense Transformers components can I source from EGOO?
You can browse available Current Sense Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Current Sense Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
