Current Sense Transformers
Browse available Current Sense Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0368.070NLCURR SENSE XFMR 1:70 4A SMD |
1,394 | - |
|
Datasheet | - | Tube | Active | 50kHz ~ 1MHz | Invasive | 4 A | 3.3 mH | - | 1:70 | - | 4mOhm Primary, 1.2Ohm Secondary | - | Surface Mount | 0.285" L x 0.352" W (7.25mm x 8.25mm) | 0.124" (3.15mm) | - |
|
B82801B0305A125CURR SENSE XFMR 1:125 SMD |
2,258 | - |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 3 mH | - | 1:125 | - | 0.8mOhm Primary, 6.5Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|

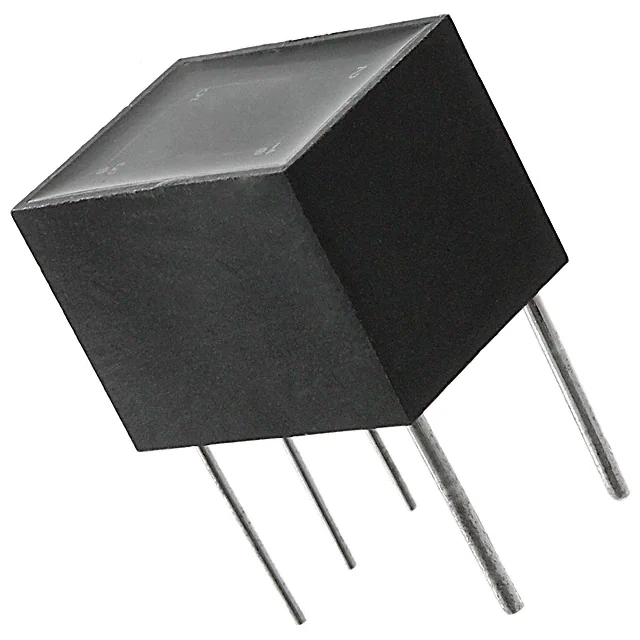

PE-63619NLCURR SENSE XFMR 20A T/H |
2,742 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 80 mH | - | - | 200CT:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
PE-67300NLCURR SENSE XFMR 37A T/H |
1,936 | - |
|
Datasheet | - | Tray | Active | 10kHz ~ 200kHz | Invasive | 37 A | 180 mH | - | - | 300:1 | 510Ohm Primary, 11Ohm Secondary | - | Through Hole | 0.565" L x 0.750" W (14.35mm x 19.05mm) | 0.750" (19.05mm) | PC Pin |
|
AC1075CURR SENSE XFMR 75A T/H |
4,455 | - |
|
Datasheet | AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 75 A | - | - | - | 1000:1 | 24Ohm | - | Through Hole | 1.500" L x 0.626" W (38.10mm x 15.90mm) | 1.500" (38.10mm) | PC Pin |
|
CCT272440-80-10-02CURR SENSE XFMR 80A CHAS MNT |
3,466 | - |
|
Datasheet | CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 80 A | - | - | - | 3000:1 | 352Ohm | - | Chassis Mount | 1.201" L x 1.083" W (30.50mm x 27.50mm) | 1.634" (41.50mm) | Wire Leads with Connector |
|
CT5CFCURR SENSE XFMR CHAS MNT |
2,967 | - |
|
Datasheet | CT | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Chassis Mount | 2.063" L x 1.100" W (52.40mm x 27.94mm) | 1.250" (31.75mm) | Wire Leads |
|
2277815CURR SENSE XFMR 60A DIN RAIL |
3,438 | - |
|
Datasheet | - | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 60 A | - | - | - | - | - | - | DIN Rail | 2.362" L x 1.181" W (60.00mm x 30.00mm) | 3.150" (80.00mm) | Terminal Block |
|
2277048CURR SENSE XFMR 250A DIN RAIL |
4,500 | - |
|
Datasheet | PACT | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 250 A | - | - | - | 200:5 | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
|
CT-0100-D10CURR SENSE XFMR 100:5 DONUT |
3,662 | - |
|
Datasheet | CT | Bulk | Active | - | Non-Invasive (Solid Core) | 100 A | - | - | - | 100:5 | - | - | Free Hanging (In-Line) | - | - | Wire Leads |
|
CT-0100-F10CURR SENSE XFMR 100:5 FOOTED |
3,290 | - |
|
Datasheet | CT | Bulk | Active | - | Non-Invasive (Solid Core) | 100 A | - | - | - | 100:5 | - | - | - | - | - | Terminal Block |
|
CT400ACURR SENSE XFMR 5A CHAS MNT |
3,811 | - |
|
Datasheet | CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 400:5 | - | - | Chassis Mount | 4.750" L x 1.750" W (120.65mm x 44.45mm) | 4.250" (107.95mm) | Wire Leads |
|
|
CT150ACURR SENSE XFMR 5A CHAS MNT |
3,069 | - |
|
Datasheet | CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 150:5 | - | - | Chassis Mount | 3.750" L x 1.750" W (95.25mm x 44.45mm) | 3.250" (82.55mm) | Wire Leads |
|
CT200ACURR SENSE XFMR 5A CHAS MNT |
2,913 | - |
|
Datasheet | CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 200:5 | - | - | Chassis Mount | 4.750" L x 1.750" W (120.65mm x 44.45mm) | 4.250" (107.95mm) | Wire Leads |
|
|
CT500ACURR SENSE XFMR 5A CHAS MNT |
4,357 | - |
|
Datasheet | CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 500:5 | - | - | Chassis Mount | 4.750" L x 1.750" W (120.65mm x 44.45mm) | 4.250" (107.95mm) | Wire Leads |
|
CT-0400-F20CURR SENSE XFMR 400:5 FOOTED |
4,048 | - |
|
Datasheet | CT | Bulk | Active | - | Non-Invasive (Solid Core) | 400 A | - | - | - | 400:5 | - | - | - | - | - | Terminal Block |
|
CT-0500-D20CURR SENSE XFMR 500:5 DONUT |
2,170 | - |
|
Datasheet | CT | Bulk | Active | - | Non-Invasive (Solid Core) | 500 A | - | - | - | 500:5 | - | - | Free Hanging (In-Line) | - | - | Wire Leads |
|
|
CT1200ACURR SENSE XFMR 5A CHAS MNT |
1,705 | - |
|
Datasheet | CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 1200:5 | - | - | Chassis Mount | 8.000" L x 1.750" W (203.20mm x 44.45mm) | 7.250" (184.15mm) | Wire Leads |
|
A82-20500CURR SENSE XFMR 500A CHAS MNT |
1,015 | - |
|
Datasheet | - | Bag | Active | 40Hz ~ 1kHz | Non-Invasive (Solid Core) | 500 A | - | - | - | - | - | - | Chassis Mount | 3.740" L x 0.787" W (95.00mm x 20.00mm) | 2.657" (67.50mm) | Wire Leads |
|
|
A82-20250CURR SENSE XFMR 250A CHAS MNT |
1,136 | - |
|
Datasheet | - | Bag | Active | 40Hz ~ 1kHz | Non-Invasive (Solid Core) | 250 A | - | - | - | - | - | - | Chassis Mount | 3.740" L x 0.787" W (95.00mm x 20.00mm) | 2.657" (67.50mm) | Wire Leads |
