Current Sense Transformers
Compare the current Current Sense Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECST1V0504-1150-RCURR SENSE XFMR 150:1 7A SMD |
3,629 | - |
|
Datasheet | ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 1.8 mH | - | 150:1 | - | 3mOhm Primary, 21Ohm Secondary Max | - | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECST1V0504-1040-RCURR SENSE XFMR 40:1 7A SMD |
4,902 | - |
|
Datasheet | ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 132 µH | - | 40:1 | - | 3mOhm Primary, 1.6Ohm Secondary Max | - | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECST1V0504-1020-RCURR SENSE XFMR 20:1 7A SMD |
4,623 | - |
|
Datasheet | ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 33 µH | - | 20:1 | - | 3mOhm Primary, 350mOhm Secondary Max | - | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1125-RCURR SENSE XFMR 125:1 7A SMD |
3,136 | - |
|
Datasheet | ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 1.28 mH | - | 125:1 | - | 3Ohm Primary, 13Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1060-RCURR SENSE XFMR 60:1 7A SMD |
4,554 | - |
|
Datasheet | ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 295 µH | - | 60:1 | - | 3Ohm Primary, 3.6Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1030-RCURR SENSE XFMR 30:1 7A SMD |
4,362 | - |
|
Datasheet | ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 74 µH | - | 30:1 | - | 3Ohm Primary, 800mOhm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1150-RCURR SENSE XFMR 150:1 7A SMD |
1,812 | - |
|
Datasheet | ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 1.8 mH | - | 150:1 | - | 3Ohm Primary, 21Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1020-RCURR SENSE XFMR 20:1 7A SMD |
2,243 | - |
|
Datasheet | ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 33 µH | - | 20:1 | - | 3Ohm Primary, 350mOhm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1040-RCURR SENSE XFMR 40:1 7A SMD |
4,782 | - |
|
Datasheet | ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 132 µH | - | 40:1 | - | 3Ohm Primary, 1.6Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|

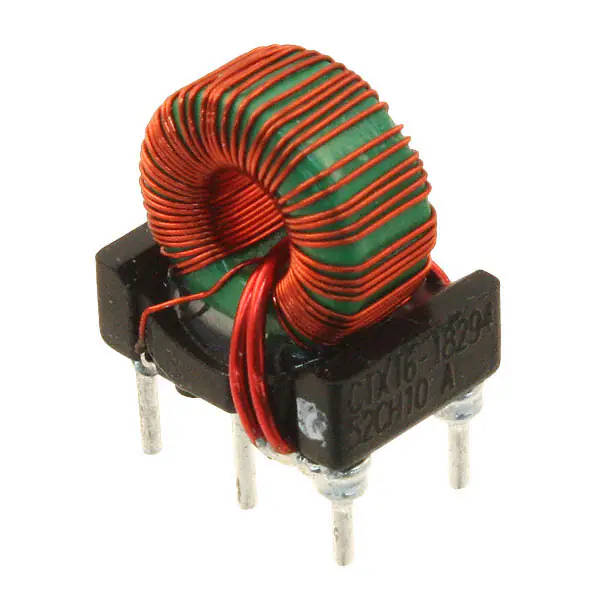

CTX16-18294-RCURR SENSE XFMR T/H |
4,042 | - |
|
Datasheet | - | Bulk | Active | - | - | - | 8.25 mH | - | - | - | - | - | Through Hole | - | - | PC Pin |
Current Sense Transformers FAQ
How can I narrow the current Current Sense Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Current Sense Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
