Current Sense Transformers
Compare the current Current Sense Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82801B0925A200CURR SENSE XFMR 1:200 20A SMD |
4,506 |
1+：$1.96000 10+：$1.77600 25+：$1.70640 50+：$1.65500 100+：$1.60480 250+：$1.54024 |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 8 mH | 100VµS | 1:200 | - | 0.6mOhm Primary, 33.24Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
|
B82801B0205A100CURR SENSE XFMR 1:100 SMD |
3,347 | - |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 2 mH | - | 1:100 | - | 0.8mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
B82801C0565A100CURR SENSE XFMR 1:100 SMD |
926 | - |
|
Datasheet | B82801C | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 5.6 mH | - | 1:100 | - | 0.28mOhm Primary, 1Ohm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
B82801A1824A100CURR SENSE XFMR 1:100 SMD |
4,659 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 820 µH | - | - | - | 2.5mOhm Primary, 8.7Ohm Secondary | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|

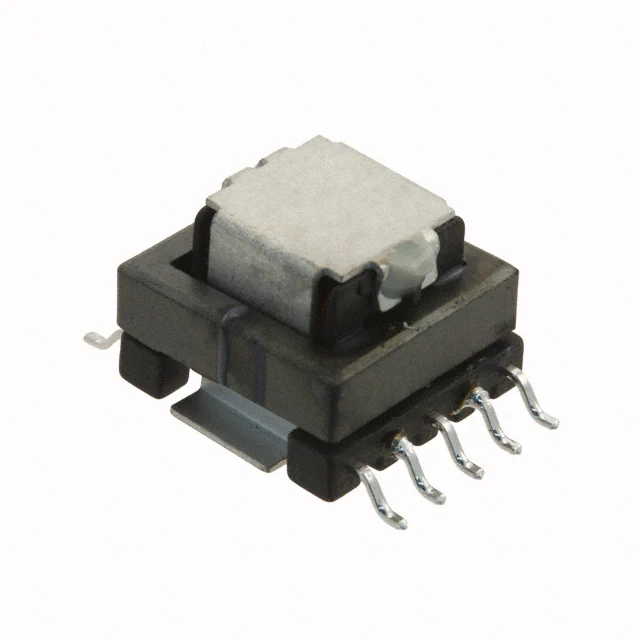

B82801C2245A200CURR SENSE XFMR 1:200 SMD |
1,691 | - |
|
Datasheet | B82801C | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 22.4 mH | - | 1:200 | - | 0.28mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
|
B82801B0504A050CURR SENSE XFMR 1:50 SMD |
4,358 | - |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 500 µH | - | 1:50 | - | 0.8mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
|
B82801B0324A040CURR SENSE XFMR 1:40 SMD |
3,283 | - |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 320 µH | - | 1:40 | - | 0.8mOhm Primary, 1.14Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
|
B82801B0803A020CURR SENSE XFMR 1:20 SMD |
225 | - |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 80 µH | - | 1:20 | - | 0.8mOhm Primary, 400mOhm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
|
B82801A1135A125CURR SENSE XFMR SMD |
1,440 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 1.28 mH | - | - | - | - | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
B82801C0145A050CURR SENSE XFMR 1:50 SMD |
379 | - |
|
Datasheet | B82801C | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 1.4 mH | - | 1:50 | - | 0.28mOhm Primary, 400mOhm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
