DIP Switches
Compare the current DIP Switches Switches selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5-5435640-7SWITCH ROCKER DIP SPST |
2,707 | - |
|
Datasheet | 7100 | Tube | Active | SPST | 9 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
ADP04SASWITCH PIANO DIP SPST 0.025A 24V |
3,982 | - |
|
Datasheet | ADP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
GDP04SWITCH PIANO DIP SPST 0.025A 24V |
2,199 | - |
|
Datasheet | GDP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADF08STTRSWITCH SLIDE DIP SPST 0.025A 24V |
2,050 | - |
|
Datasheet | ADF | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

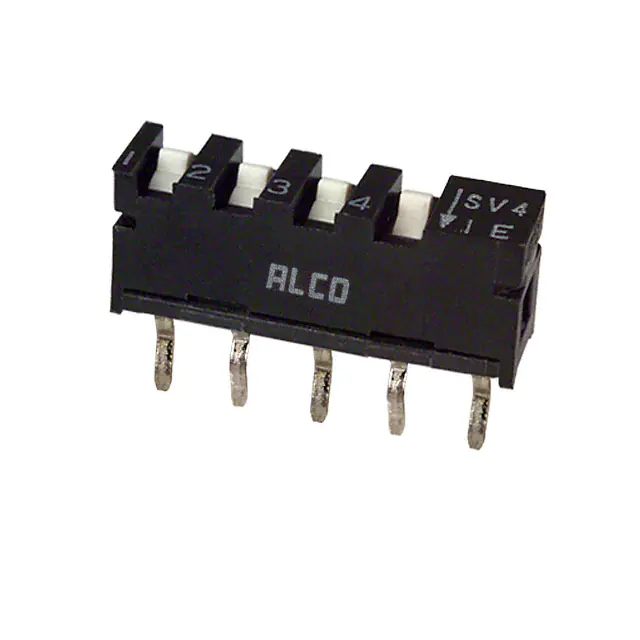

SSV04SWITCH SLIDE DIP SPST 0.4VA 20V |
3,609 | - |
|
Datasheet | SSV | Tube | Obsolete | SPST | 4 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
5-5435640-1SWITCH ROCKER DIP SPST |
3,024 | - |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 10 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
3-5435668-5SWITCH ROCKER DIP SPST 0.06A 5V |
2,011 | - |
|
Datasheet | 7100 | Tube | Active | SPST | 5 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
1-5435802-9SWITCH PIANO DIP SPST |
3,983 | - |
|
Datasheet | 7000 | Tape & Reel (TR) | Obsolete | SPST | 9 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
1-1393546-7SWITCH DIP SPDT |
3,316 | - |
|
Datasheet | DIP-FIX | Bulk | Obsolete | SPDT | 4 | - | - | - | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
GDS04SSWITCH SLIDE DIP SPST 0.025A 24V |
4,847 | - |
|
Datasheet | GDS | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
DIP Switches FAQ
How can I narrow the current DIP Switches selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DIP Switches parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
