CPLDs (Complex Programmable Logic Devices)
Compare the current CPLDs (Complex Programmable Logic Devices) Embedded selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC4256ZE-7TN100CIC CPLD 256MC 7.5NS 100TQFP |
242 | - |
|
Datasheet | ispMACH® 4000ZE | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4256ZC-75TN100CIC CPLD 256MC 7.5NS 100TQFP |
372 | - |
|
Datasheet | ispMACH® 4000Z | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4256V-10TN176IIC CPLD 256MC 10NS 176TQFP |
946 | - |
|
Datasheet | ispMACH® 4000V | 176-LQFP | Tray | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 16 | 256 | - | 128 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 176-TQFP (24x24) |
|

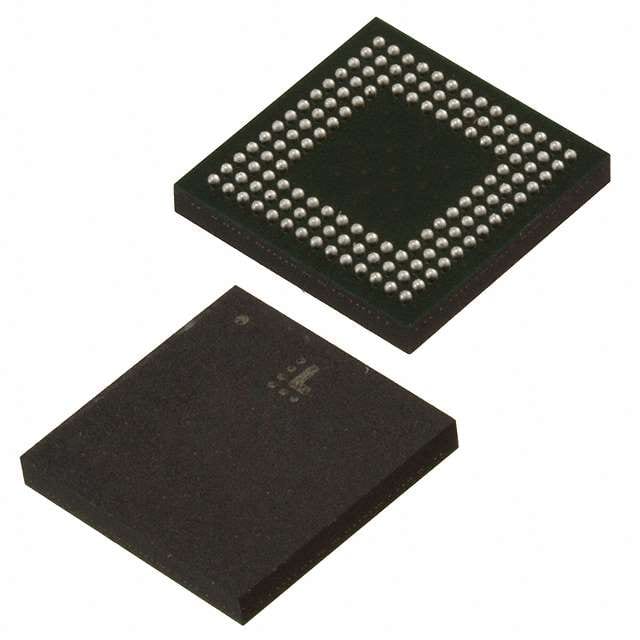

LC4256ZC-75MN132IIC CPLD 256MC 7.5NS 132CSBGA |
1,615 | - |
|
Datasheet | ispMACH® 4000Z | 132-LFBGA, CSPBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 132-CSBGA (8x8) |
|

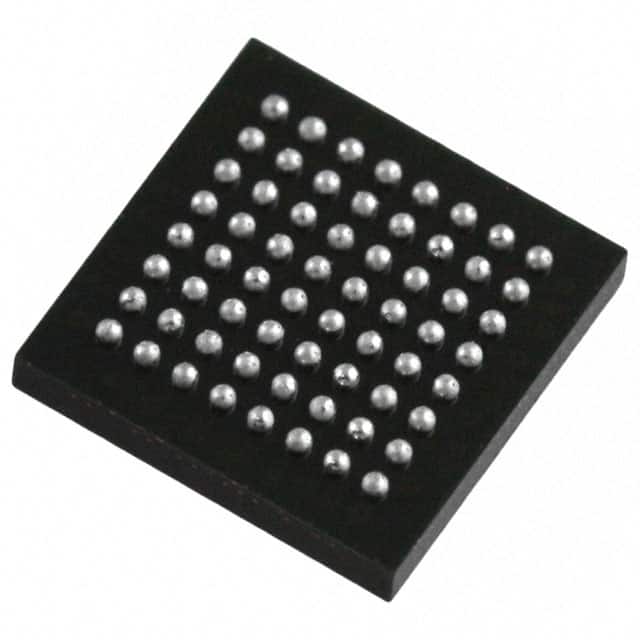

LC4032ZE-7MN64CIC CPLD 32MC 7.5NS 64CSBGA |
2,450 | - |
|
Datasheet | ispMACH® 4000ZE | 64-TFBGA, CSPBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 2 | 32 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 64-CSBGA (5x5) |
|
LC4032ZC-75TN48CIC CPLD 32MC 7.5NS 48TQFP |
226 | - |
|
Datasheet | ispMACH® 4000Z | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 2 | 32 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
|
LC4064V-5TN48CIC CPLD 64MC 5NS 48TQFP |
150 | - |
|
Datasheet | ispMACH® 4000V | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
LC4128ZE-7MN144CIC CPLD 128MC 7.5NS 144CSBGA |
248 | - |
|
Datasheet | ispMACH® 4000ZE | 144-TFBGA, CSPBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 96 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 144-CSBGA (7x7) |
|
|
LC4064V-25TN48CIC CPLD 64MC 2.5NS 48TQFP |
1,350 | - |
|
Datasheet | ispMACH® 4000V | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 2.5 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
LAMXO640C-3TN144EIC CPLD 320MC 4.9NS 144TQFP |
106 | - |
|
Datasheet | LA-MachXO | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 4.9 ns | 1.71V ~ 3.465V | - | 320 | - | 113 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
CPLDs (Complex Programmable Logic Devices) FAQ
How can I narrow the current CPLDs (Complex Programmable Logic Devices) selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
