PLDs (Programmable Logic Device)
Browse available PLDs (Programmable Logic Device) components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Number of Macrocells | Voltage - Input | Speed | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GAL22V10D-20LPIIC PLD 10MC 20NS 24DIP |
2,486 | - |
|
Datasheet | GAL®22V10 | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 10 | - | 20 ns | Through Hole | 24-PDIP |
|
|
GAL22V10D-25LJIIC PLD 10MC 25NS 28PLCC |
1,987 | - |
|
Datasheet | GAL®22V10 | 28-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 | - | 25 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
GAL22V10D-25LPIC CPLD 10MC 25NS 24DIP |
1,475 | - |
|
Datasheet | GAL®22V10 | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 10 | - | - | Through Hole | 24-PDIP |
|
|
GAL22V10D-25LPIIC CPLD 10MC 25NS 24DIP |
4,414 | - |
|
Datasheet | GAL®22V10 | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 10 | - | - | Through Hole | 24-PDIP |
|
|
GAL22V10D-25QPIC CPLD 10MC 25NS 24DIP |
4,648 | - |
|
Datasheet | GAL®22V10 | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 10 | - | - | Through Hole | 24-PDIP |
|
|
GAL22V10D-5LJIC PLD 10MC 5NS 28PLCC |
4,999 | - |
|
Datasheet | GAL®22V10 | 28-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 | - | 5 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
GAL22V10D-7LJIC PLD 10MC 5NS 28PLCC |
2,051 | - |
|
Datasheet | GAL®22V10 | 28-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 | - | 5 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
GAL22V10D-7LJIIC PLD 10MC 5NS 28PLCC |
2,258 | - |
|
Datasheet | GAL®22V10 | 28-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 | - | 5 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
ISPGAL22V10AV-23LNIC PLD 10MC 2.3NS 32QFN |
4,136 | - |
|
Datasheet | ispGAL™22V10 | 32-VFQFN Exposed Pad | Box | Obsolete | Not Verified | EE PLD | 10 | - | 2.3 ns | Surface Mount | 32-QFN (5x5) |
|
|
ISPGAL22V10AV-75LNIIC PLD 10MC 7.5NS 32QFN |
4,906 | - |
|
Datasheet | ispGAL™22V10 | 32-VFQFN Exposed Pad | Box | Obsolete | Not Verified | EE PLD | 10 | - | 7.5 ns | Surface Mount | 32-QFN (5x5) |
|
GAL16V8Z-12QPEE PLD, 15NS, PAL-TYPE, CMOS |
3,123 | - |
|
Datasheet | GAL®16V8 | 20-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | EE PLD | 8 | 4.75V ~ 5.25V | 12 ns | Through Hole | 20-DIP |
|
|
GAL16V8ZD-15QPEE PLD, 15NS, PAL-TYPE, CMOS |
3,896 | - |
|
Datasheet | GAL®16V8 | 20-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | EE PLD | 8 | 4.75V ~ 5.25V | 15 ns | Through Hole | 20-DIP |
|
PAL16R6ACNLOT PLD, 25NS, PAL-TYPE, TTL, PQC |
1,114 | - |
|
Datasheet | - | 20-LCC (J-Lead) | Bulk | Active | Not Verified | PAL | 6 | 4.75V ~ 5.25V | - | Surface Mount | 20-PLCC (9x9) |
|
|
PAL16R6BCNOT PLD, 15NS, PAL-TYPE, TTL, PDI |
4,881 | - |
|
Datasheet | - | - | Bulk | Active | Not Verified | - | - | - | - | - | - |
|
|
PAL16L8-7PCOT PLD, 10NS, TTL, PDIP20 |
4,066 | - |
|
Datasheet | * | - | Bulk | Active | Not Verified | - | - | - | - | - | - |
|
8103610RASTANDARD HIGH-SPEED PAL CIRCUITS |
4,684 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 4 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
PAL16R8AMJBSTANDARD HIGH-SPEED PAL CIRCUITS |
2,225 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|

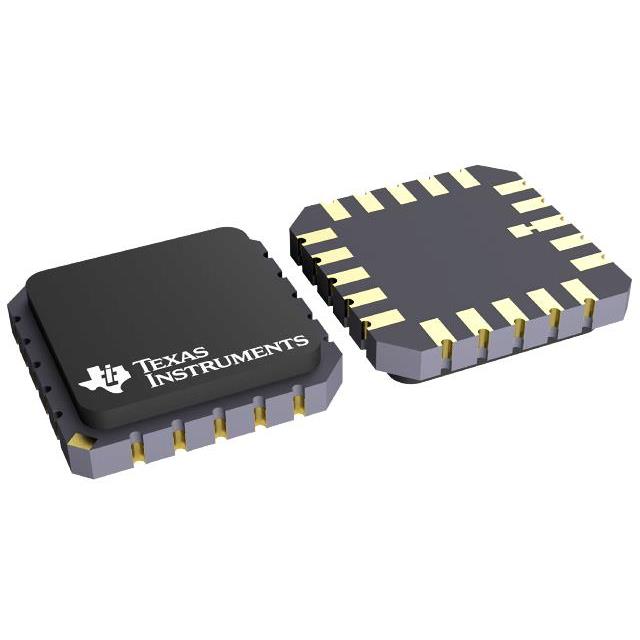

TIBPAL16L8-30MFKBLOW-POWER HIGH-PERFORMANCE IMPAC |
4,073 | - |
|
Datasheet | - | 20-CLCC | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
|
TIBPAL16L8-20MWBHIGH-PERFORMANCE IMPACT PAL CIRC |
4,689 | - |
|
Datasheet | IMPACT-X™ PAL® | 20-CFlatPack | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 20 ns | Surface Mount | 20-CFP |
|
PAL16R8AMFKBSTANDARD HIGH-SPEED PAL CIRCUITS |
2,227 | - |
|
Datasheet | PAL® | 20-CLCC | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
PLDs (Programmable Logic Device) FAQ
What PLDs (Programmable Logic Device) components can I source from EGOO?
You can browse available PLDs (Programmable Logic Device) product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PLDs (Programmable Logic Device) parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
