PLDs (Programmable Logic Device)
Browse available PLDs (Programmable Logic Device) components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Number of Macrocells | Voltage - Input | Speed | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8103609RASTANDARD HIGH-SPEED PAL CIRCUITS |
4,068 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 6 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
PAL16L8AMWBSTANDARD HIGH-SPEED PAL CIRCUITS |
4,659 | - |
|
Datasheet | PAL® | 20-CFlatPack | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-CFP |
|
|
JM38510/50608BRALOW-POWER HIGH-PERFORMANCE IMPAC |
2,093 | - |
|
Datasheet | - | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 4 | 4.5V ~ 5.5V | 25 ns | Through Hole | 20-CDIP |
|
|
81036092ASTANDARD HIGH-SPEED PAL CIRCUITS |
3,488 | - |
|
Datasheet | PAL® | 20-CLCC | Tube | Active | - | PAL | 6 | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
8103611RASTANDARD HIGH-SPEED PAL CIRCUITS |
2,163 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
PAL16L8A-2MFKBSTANDARD HIGH-SPEED PAL CIRCUITS |
3,349 | - |
|
Datasheet | PAL® | 20-CLCC | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
|
8103607RASTANDARD HIGH-SPEED PAL CIRCUITS |
1,257 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
TIBPAL16L8-20MFKBHIGH-PERFORMANCE IMPACT PAL CIRC |
3,240 | - |
|
Datasheet | IMPACT-X™ PAL® | 20-CLCC | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 20 ns | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
PAL16R4A-2MJSTANDARD HIGH-SPEED PAL CIRCUITS |
3,430 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 4 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
PAL16R8AMJSTANDARD HIGH-SPEED PAL CIRCUITS |
2,431 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
PAL16L8A-2MJBSTANDARD HIGH-SPEED PAL CIRCUITS |
4,863 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
PAL16L8AMJSTANDARD HIGH-SPEED PAL CIRCUITS |
4,024 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
JM38510/50604BRAHIGH-PERFORMANCE IMPACT PAL CIRC |
4,530 | - |
|
Datasheet | IMPACT-X™ PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 4 | 4.5V ~ 5.5V | 20 ns | Through Hole | 20-CDIP |
|
JM38510/50501BLAHIGH-PERFORMANCE IMPACT PAL CIRC |
1,578 | - |
|
Datasheet | IMPACT-X™ PAL® | 24-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 20 ns | Through Hole | 24-CDIP |
|

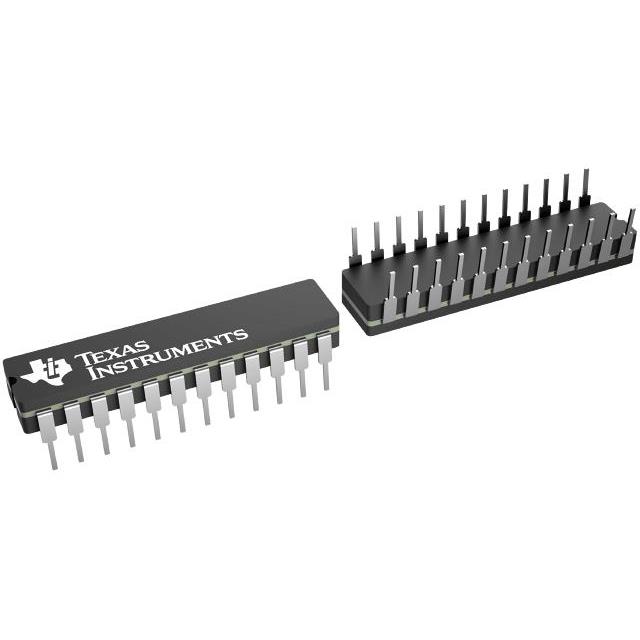

8412901XAHIGH-PERFORMANCE IMPACT PAL CIRC |
1,300 | - |
|
Datasheet | IMPACT-X™ PAL® | 28-CLCC | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 20 ns | Surface Mount | 28-LCCC (11.43x11.43) |
|
|
TIBPAL16L8-30MJLOW-POWER HIGH-PERFORMANCE IMPAC |
4,765 | - |
|
Datasheet | - | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
JM38510/50504BLAHIGH-PERFORMANCE IMPACT PAL CIRC |
2,929 | - |
|
Datasheet | IMPACT-X™ PAL® | 24-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 4 | 4.5V ~ 5.5V | 20 ns | Through Hole | 24-CDIP |
|
|
PAL16L8AMFKBSTANDARD HIGH-SPEED PAL CIRCUITS |
3,349 | - |
|
Datasheet | PAL® | 20-CLCC | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
PAL16L8AMJBSTANDARD HIGH-SPEED PAL CIRCUITS |
2,959 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
PAL16R6AMFKBSTANDARD HIGH-SPEED PAL CIRCUITS |
3,750 | - |
|
Datasheet | PAL® | 20-CLCC | Tube | Active | - | PAL | 6 | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
PLDs (Programmable Logic Device) FAQ
What PLDs (Programmable Logic Device) components can I source from EGOO?
You can browse available PLDs (Programmable Logic Device) product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PLDs (Programmable Logic Device) parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
