Encoders
Browse available Encoders components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACZ11BR4E-15FD1-20CROTARY ENCODER INCREMENT 20PPR |
455 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ACZ11BR2E-20FD1-20CZ-0546ROTARY ENCODER INCREMENT 20PPR |
1,939 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
290VAA5F201A2ROTARY ENCODER MECHANICAL 20PPR |
281 | - |
|
Datasheet | 290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|

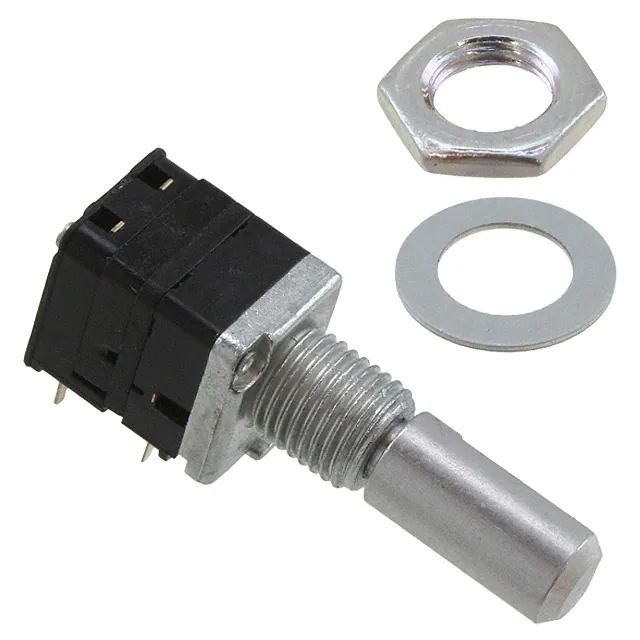

PEC09-2120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,791 | - |
|
Datasheet | PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC11S-9215F-S0015ROTARY ENCODER MECHANICAL 15PPR |
519 | - |
|
Datasheet | PEC11S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
482016514001MECHANICAL INCREMENTAL ENCODER S |
541 | - |
|
Datasheet | WS-ENTV | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | - | - | - |
|
|
482020514001MECHANICAL INCREMENTAL ENCODER S |
249 | - |
|
Datasheet | WS-ENTV | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | - | - | - |
|

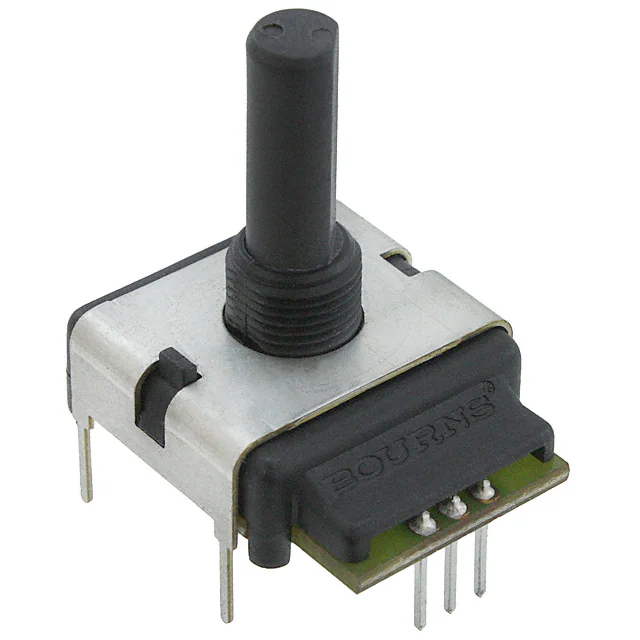

ECW1J-C28-BC0024LROTARY ENCODER MECHANICAL 24PPR |
245 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
288T232R161A2ROTARY ENCODER MECHANICAL 16PPR |
757 | - |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Round End | Yes | No | Panel Mount | Right Angle | Solder Lug | 50K | - | - |
|
288X232R161B2ROTARY ENCODER MECHANICAL 4PPR |
362 | - |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 4 | - | 1/4" Dia Round End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 50K | - | - |
|
EC11E18244AUENCODER MECH QUAD VERT PC PIN |
189 |
1+：$5.09000 5+：$4.36800 10+：$4.09100 25+：$3.75120 50+：$3.51220 100+：$3.28800 250+：$3.01220 500+：$2.81802 1000+：$2.63538 |
|
Datasheet | EC11 | Tray | Active | - | Mechanical | Quadrature (Incremental) | 18 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
288V232R161B2ROTARY ENCODER MECHANICAL 16PPR |
2,314 | - |
|
Datasheet | 288 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Round End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
|
EC11E18244A5ENCODER INCREM QUAD VERT PC PIN |
1,155 |
1+：$5.38000 5+：$4.61600 10+：$4.32400 25+：$3.96440 50+：$3.71180 100+：$3.47470 250+：$3.18316 500+：$2.97788 1000+：$2.78476 |
|
Datasheet | EC11E | Tray | Active | - | Incremental | Quadrature (Incremental) | 18 | 5V | 4.5mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC11E09244AQMETAL SHAFT ENCODERS |
1,037 | - |
|
Datasheet | EC11E | Tray | Active | - | Incremental | Quadrature (Incremental) | 9 | 5V | 4.5mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC11E15244B2ENCODER MECH QUAD VERT PC PIN |
970 |
1+：$5.00000 5+：$4.29000 10+：$4.01800 25+：$3.68360 50+：$3.44900 100+：$3.22880 250+：$2.95804 500+：$2.76740 1000+：$2.58806 |
|
Datasheet | EC11 | Tray | Active | - | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
ACZ16NBR1E-15FD1-24CROTARY ENCODER INCREMENT 24PPR |
617 | - |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
3315C-001-006LROTARY ENCODER MECHANICAL 6PPR |
2,395 | - |
|
Datasheet | 3315 | Tube | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
|
EC28A1560401RING TYP ENCODERS |
0 |
1+：$5.50000 5+：$4.72600 10+：$4.42700 25+：$4.05840 50+：$3.80000 100+：$3.55730 400+：$3.11485 800+：$2.91320 1200+：$2.80079 |
|
Datasheet | EC28A | Tray | Active | - | - | - | 15 | 5V | 28mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|

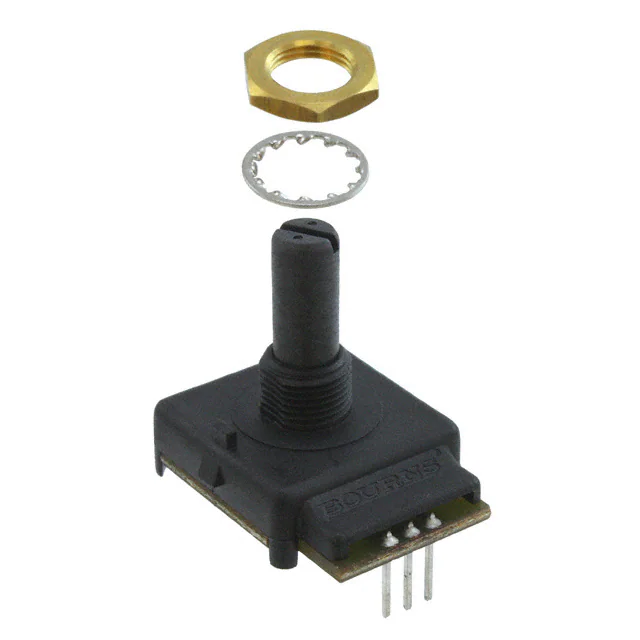

ECW0J-B24-AC0006LROTARY ENCODER MECHANICAL 6PPR |
656 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

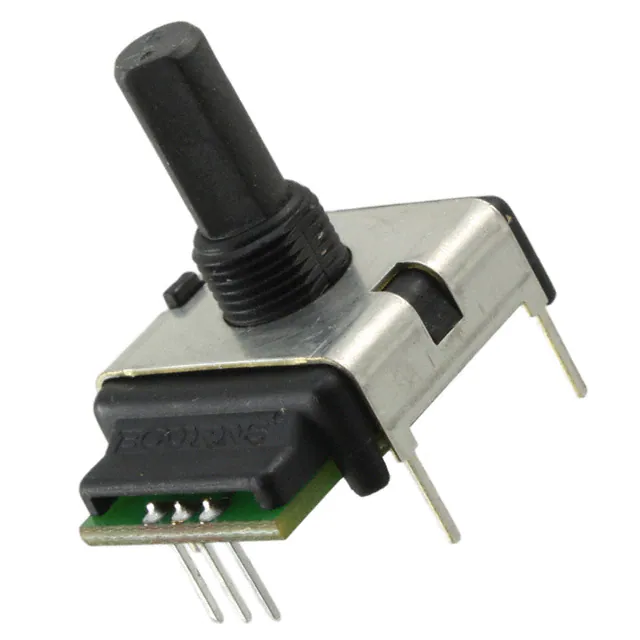

ECW1J-C24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
279 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
Encoders FAQ
What Encoders components can I source from EGOO?
You can browse available Encoders product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Encoders parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
