Encoders
Browse available Encoders components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

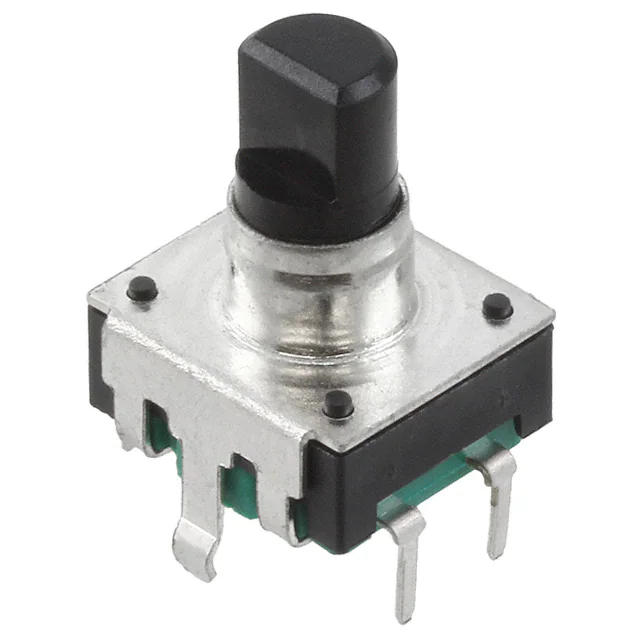

PEC12R-4225F-S0024ROTARY ENCODER MECHANICAL 24PPR |
5,999 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12R-4220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
767 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

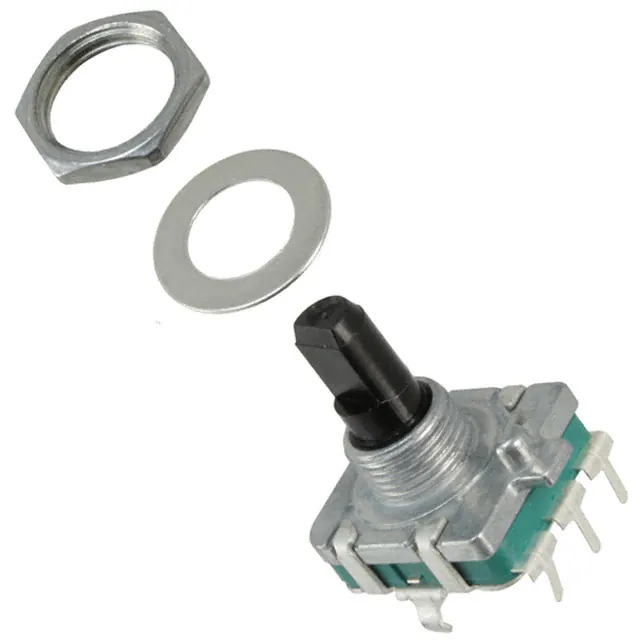

PEC16-4220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
5,973 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

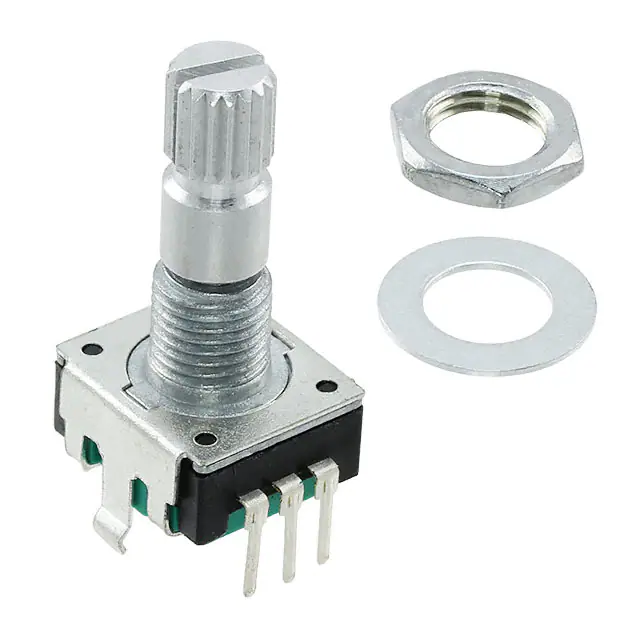

PEC11R-4220K-S0024ENCODER INCREM QUAD VERT PC PIN |
5,685 |
1+：$2.91000 5+：$2.49400 10+：$2.33600 25+：$2.14240 75+：$1.93040 150+：$1.80727 300+：$1.69163 525+：$1.60333 1050+：$1.49989 |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 24 | - | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

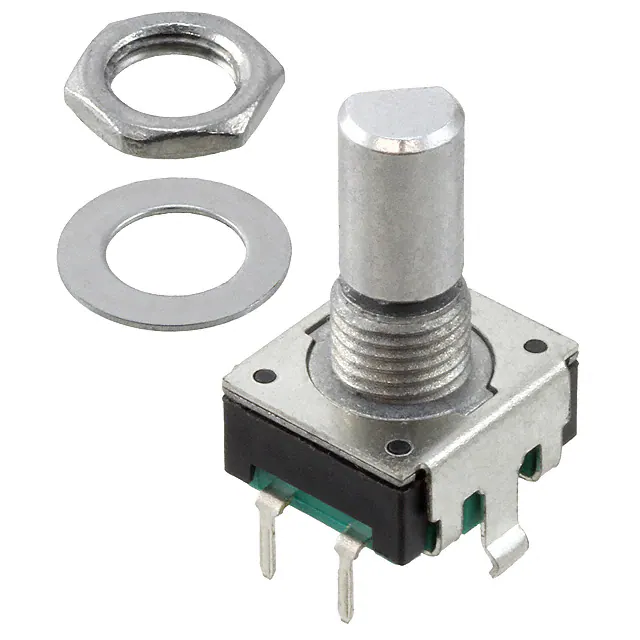

PEC11R-4115F-S0018ENCODER MECH QUAD VERT PC PIN |
3,314 |
1+：$3.46000 5+：$2.97400 10+：$2.78400 25+：$2.55320 75+：$2.30053 150+：$2.15373 300+：$2.01577 525+：$1.91048 1050+：$1.78709 |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 18 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

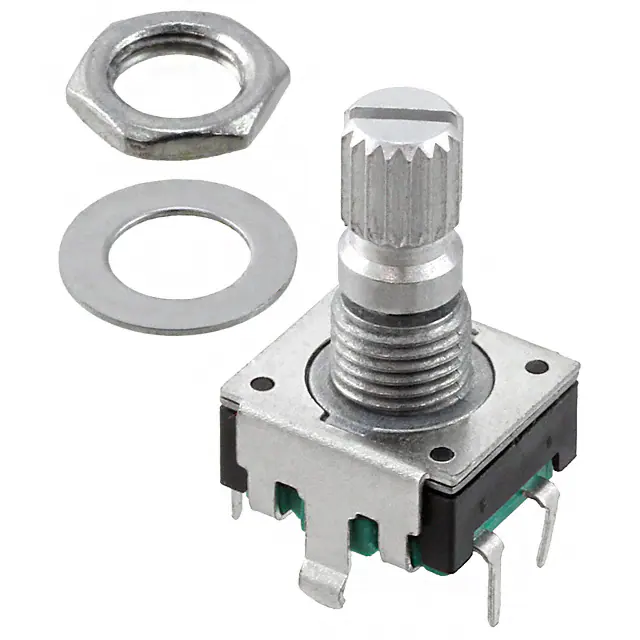

PEC11R-4215K-S0024ROTARY ENCODER MECHANICAL 24PPR |
2,238 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

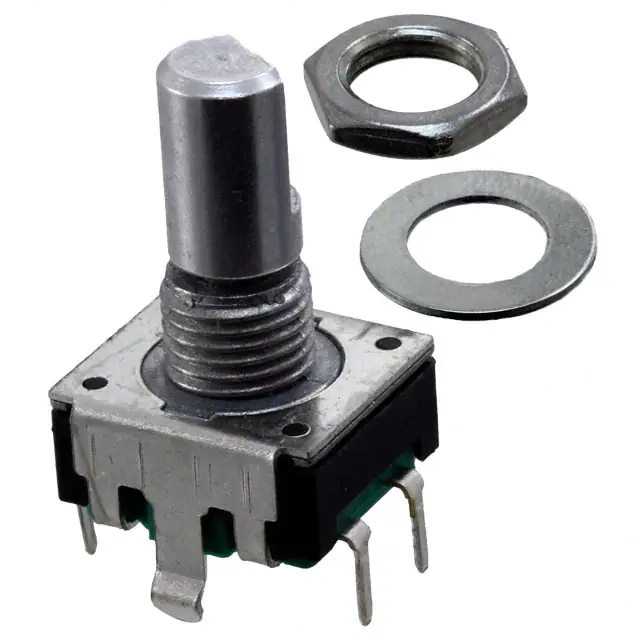

PEC11R-4215F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,250 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

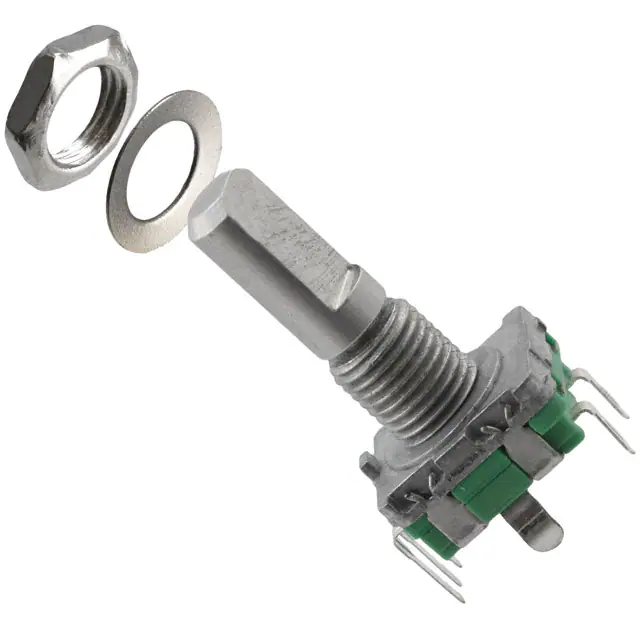

EN11-HSM1BF20ENCODER MECH QUAD VERT PC PIN |
12,009 |
1+：$3.81000 5+：$3.27200 10+：$3.06500 25+：$2.81000 50+：$2.63120 100+：$2.46340 250+：$2.25716 500+：$2.11198 1000+：$1.97545 |
|
Datasheet | EN11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN11-HSM1AF15ENCODER MECH QUAD VERT PC PIN |
5,746 |
1+：$4.42000 5+：$3.79600 10+：$3.55600 25+：$3.26040 50+：$3.05280 100+：$2.85810 250+：$2.61864 500+：$2.45012 1000+：$2.29160 |
|
Datasheet | EN11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

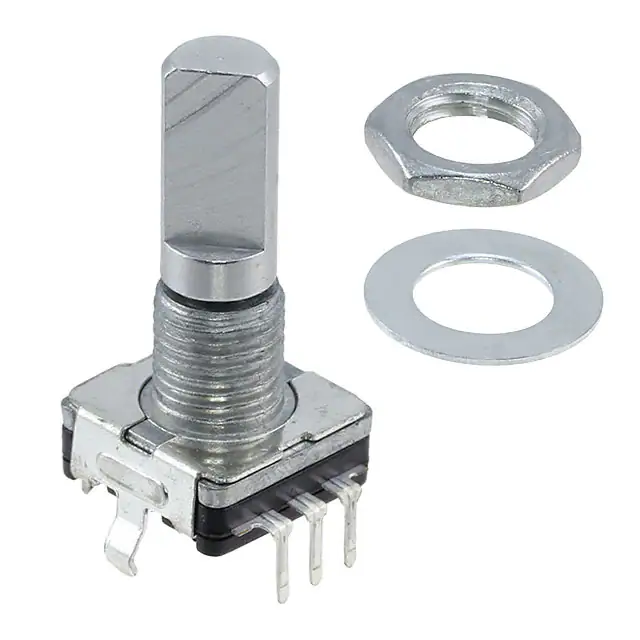

PEC11L-4120F-S0020ENCODER MECH QUAD VERT PC PIN |
0 |
1+：$3.06000 5+：$2.62800 10+：$2.46200 25+：$2.25720 75+：$2.03387 150+：$1.90407 300+：$1.78220 525+：$1.68914 1050+：$1.58010 |
|
Datasheet | PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC11H-4015F-S0016ROTARY ENCODER WITH BALL/SPRING |
2,947 | - |
|
Datasheet | PEC11H | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

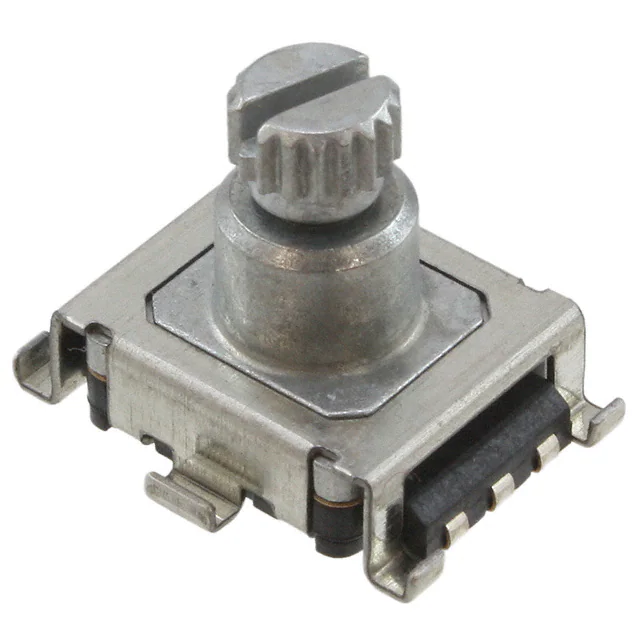

PEC11S-929K-S0015ROTARY ENCODER MECHANICAL 15PPR |
5,163 | - |
|
Datasheet | PEC11S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Knurled End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
290VAA5F201B2ROTARY ENCODER MECHANICAL 20PPR |
175 | - |
|
Datasheet | 290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
3315Y-025-016LROTARY ENCODER MECHANICAL 16PPR |
14,269 | - |
|
Datasheet | 3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Slotted End | No | No | PCB, Through Hole | Vertical | PC Pin | 25K | - | - |
|
PEL12T-4225S-S1024ROTARY ENCODER MECHANICAL 24PPR |
10,240 | - |
|
Datasheet | PEL12T | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End, Illuminated | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
AS5047D-ATSM TSSOP14 LF T&RDPROTARY ENCODER MAGNETIC PROG |
5,629 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AS5147-HTSMROTARY ENCODER MAGNETIC PROG |
420 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
|
AS5047P-ATSM TSSOP14 LF T&RDPROTARY ENCODER MAGNETIC PROG |
6,312 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AS5147P-HTSMROTARY ENCODER MAGNETIC PROG |
636 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
.jpg "AS5304A-ATSM")
|
AS5304A-ATSMROTARY ENCODER MAGNETIC 1280PPR |
1,332 | - |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | Not Verified | Magnetic | Quadrature (Incremental) | 1280 | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
Encoders FAQ
What Encoders components can I source from EGOO?
You can browse available Encoders product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Encoders parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
