Encoders
Browse available Encoders components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
290VAB0R201B2ROTARY ENCODER MECHANICAL 20PPR |
4,297 | - |
|
Datasheet | 290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
EC11E15244G1METAL SHAFT ENCODERS |
3,031 | - |
|
Datasheet | EC11E | Tray | Active | - | Incremental | Quadrature (Incremental) | 15 | 5V | 4.5mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |

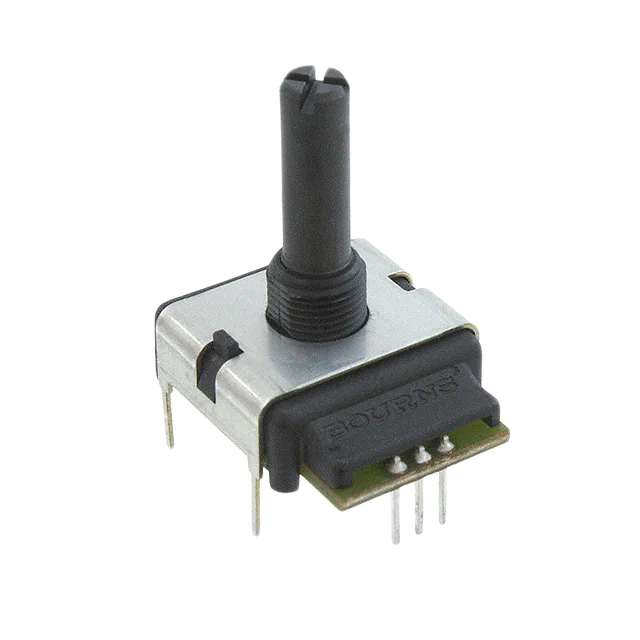

.jpg "ECW1J-R24-BC0024L")
|
ECW1J-R24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
2,934 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
EAW0J-B24-AE0128LROTARY ENCODER MECHANICAL 128PPR |
2,725 | - |
|
Datasheet | ACE™ | Tray | Active | Not Verified | Mechanical | Binary (Absolute) | 128 | - | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
292V1X24BROTARY ENCODER OPTICAL 24PPR |
2,743 | - |
|
Datasheet | 292 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 24 | 2.97V ~ 3.63V | Hole for Shaft | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|
291C6022F624ABROTARY ENCODER OPTICAL 6PPR |
3,022 | - |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 6 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
REC16K25-205-BENCODER OPTCAL DIGI VERT PC PIN |
0 |
1+：$27.44000 5+：$23.55800 20+：$20.64600 40+：$19.32150 60+：$18.58367 100+：$17.69100 260+：$16.12485 500+：$15.22500 |
|
Datasheet | REC16K | Box | Active | Not Verified | Optical | Digital, Open Collector | 25 | 5V | 6.35mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 2M | - | - |
|
EM14A1D-C24-L032NROTARY ENCODER OPTICAL 32PPR |
3,535 | - |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
EM14R0D-M20-L064SROTARY ENCODER OPTICAL 64PPR |
2,297 | - |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AMT102-D2048-I8000-SAMT10, RADIAL, CAP, SINGLE ENDED |
1,527 | - |
|
Datasheet | AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT102-D2048-I5000-SAMT10, RADIAL, CAP, SINGLE ENDED |
2,159 | - |
|
Datasheet | AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
RES20-50-200ROTARY ENCODER OPTICAL 50PPR |
1,912 | - |
|
Datasheet | RE | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 50 | 5V | Shaft | No | No | Panel, PCB Through Hole | User Selectable | PC Pin | - | - | - |
|
AEDR-9820A-102AUTO HT, ENCODER 225LPI, REEL 10 |
188 | - |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | 225 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
C14D16P-A3ROTARY ENCODER OPTICAL 16PPR |
2,137 | - |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
|
AEDR-9930EL-102LINEAR 397LPI ENCODER,TNR 100 PC |
3,789 | - |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
513385ROTARY ENCODER MECHANICAL 12PPR |
4,781 | - |
|
Datasheet | 51 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 12 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
EMS22Q31-B28-LS4ROTARY ENCODER MAGNETIC 256PPR |
3,896 | - |
|
Datasheet | - | Tray | Active | Not Verified | Magnetic | Quadrature (Incremental) | 256 | 3.3V | 1/4" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
AEDB-9140-A13ROTARY ENCODER OPTICAL 500PPR |
2,353 | - |
|
Datasheet | AEDB-9140 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
ENA1J-B28-L00100LROTARY ENCODER OPTICAL 100PPR |
2,859 | - |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
62A11-01-PROTARY ENCODER OPTICAL 32PPR |
2,480 | - |
|
Datasheet | 62A | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
Encoders FAQ
What Encoders components can I source from EGOO?
You can browse available Encoders product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Encoders parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
