Analog to Digital Converters (ADCs) Evaluation Boards
Browse available Analog to Digital Converters (ADCs) Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

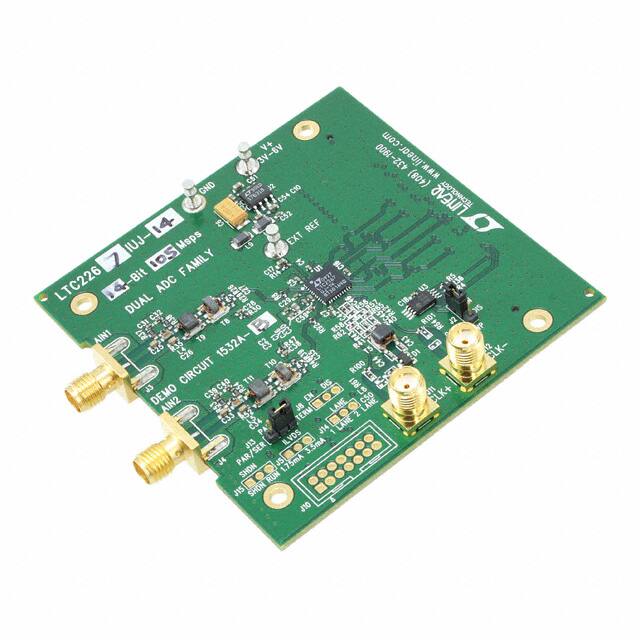

DC1532A-BBOARD DEMO 105MSPS LTC2267-14 |
3,363 | - |
|
Datasheet | - | Bulk | Active | 2 | 14 | 105M | Serial LVDS | 1 ~ 2Vpp | 266mW @ 105MSPS | LTC2267-14 | Board(s) |
|

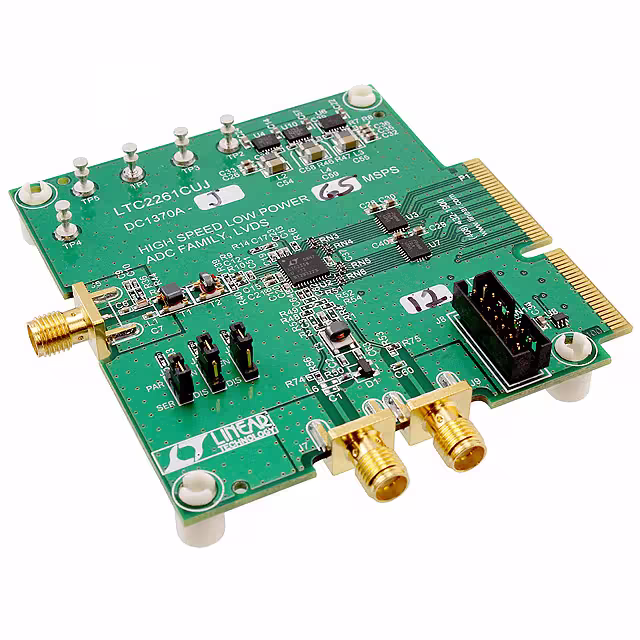

DC1370A-JBOARD DEMO 65MSPS LTC2258-12 |
4,381 | - |
|
Datasheet | - | Bulk | Active | 1 | 12 | 65M | Parallel, Serial, SPI | 1 ~ 2Vpp | 152.6mW @ 65MSPS | LTC2258-12 | Board(s) |
|

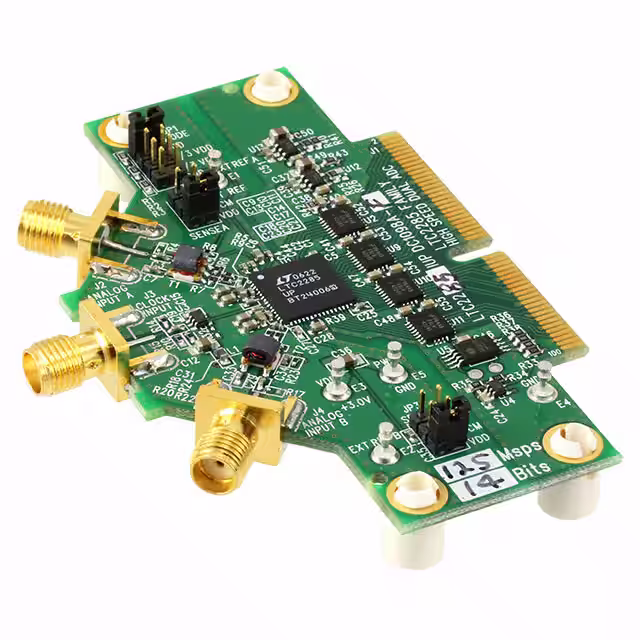

DC1098A-FBOARD EVAL LTC2285IUP |
2,818 | - |
|
Datasheet | - | Box | Active | 2 | 14 | 125M | Parallel | 2Vpp | 790mW @ 125MSPS | LTC2285 | Board(s) |
|
DC1525B-BEVAL BOARD FOR LTC2174-14 |
3,947 | - |
|
Datasheet | - | Box | Active | 4 | 14 | 105M | Serial LVDS | 1 ~ 2Vpp | 490mW @ 105MSPS | LTC2174-14 | Board(s) |
|
|
DC750A-AEVAL BOARD FOR LTC2220 |
2,280 | - |
|
Datasheet | - | Box | Active | 1 | 12 | 170M | CMOS, LVDS, Parallel | 1 ~ 2Vpp | 1.05W @ 170MSPS | LTC2220 | Board(s) |
|

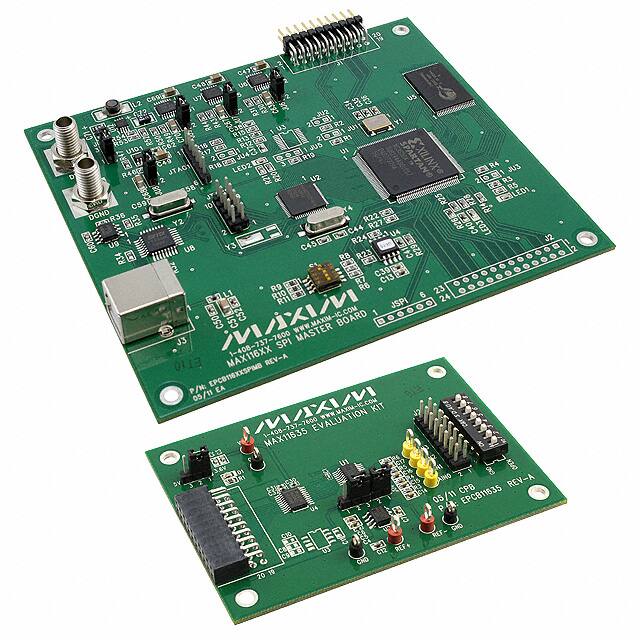

MAX11635EVSYS#KIT EVAL SYSTEM |
2,560 | - |
|
Datasheet | - | Box | Obsolete | 1 | 12 | 300k | MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF | - | MAX11635 | Board(s) |
|

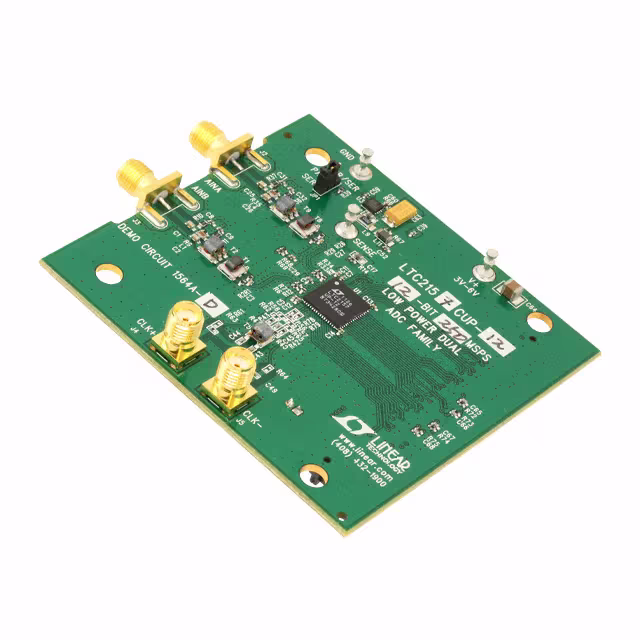

DC1564A-DBOARD DEMO 250MSPS LTC2157-12 |
4,961 | - |
|
Datasheet | - | Bulk | Obsolete | 2 | 12 | 250M | Parallel, Serial, SPI | 1.5Vpp | 679mW @ 250MSPS | LTC2157-12 | Board(s) |
|
|
DC751A-BEVAL BOARD FOR LTC2223 |
4,124 | - |
|
Datasheet | - | Box | Obsolete | 1 | 12 | 80M | CMOS, LVDS, Parallel | 1 ~ 2Vpp | 366mW @ 80MSPS | LTC2223 | Board(s) |
|

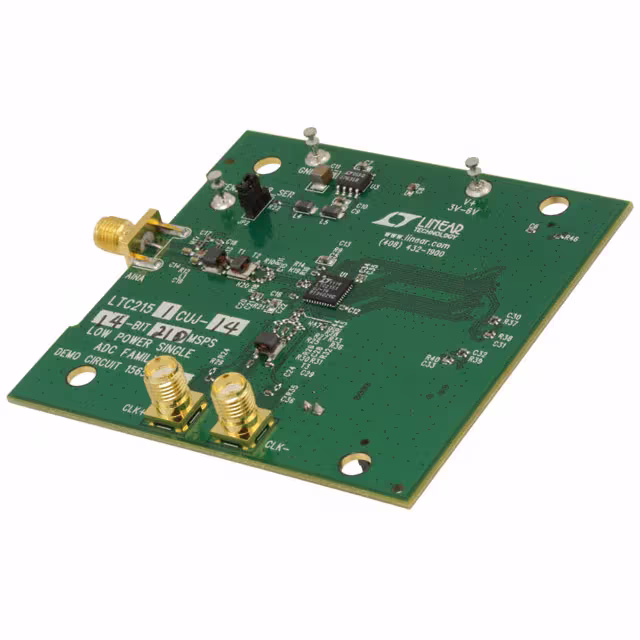

DC1565A-BBOARD DEMO 210MSPS LTC2151-14 |
2,864 | - |
|
Datasheet | - | Bulk | Active | 1 | 14 | 210M | Parallel, Serial, SPI | 1.5Vpp | 374mW @ 210MSPS | LTC2151-14 | Board(s) |
|

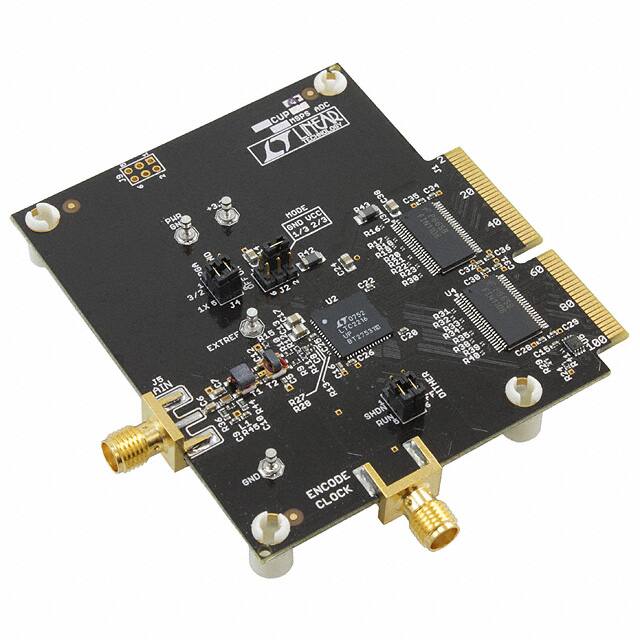

DC996B-GBOARD DEMO 16BIT 80MSPS LTC2216 |
3,786 | - |
|
Datasheet | - | Bulk | Active | 1 | 16 | 80M | Parallel | 2.25Vpp | 1.24W @ 80MSPS | LTC2216 | Board(s) |
|

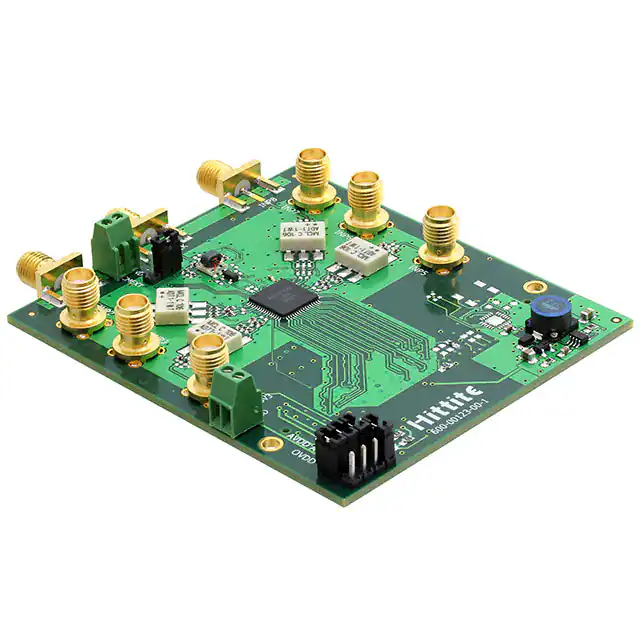

EVAL01-HMCAD1101EVAL BOARD HMCAD1101 |
4,740 | - |
|
Datasheet | EasyBoard™ | Box | Obsolete | 8 | 12, 13 | 65M | LVDS - Serial | 2Vpp | 405mW @ 65MSPS | HMCAD1101 | Board(s) |
|

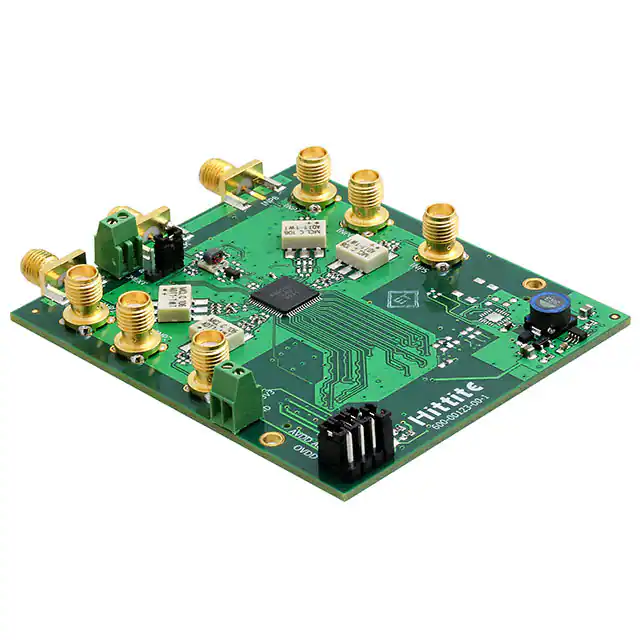

EVAL01-HMCAD1102EVAL BOARD HMCAD1102 |
2,327 | - |
|
Datasheet | EasyBoard™ | Box | Obsolete | 8 | 12 | 80M | LVDS - Serial | 2Vpp | 470mW @ 80MSPS | HMCAD1102 | Board(s) |
|

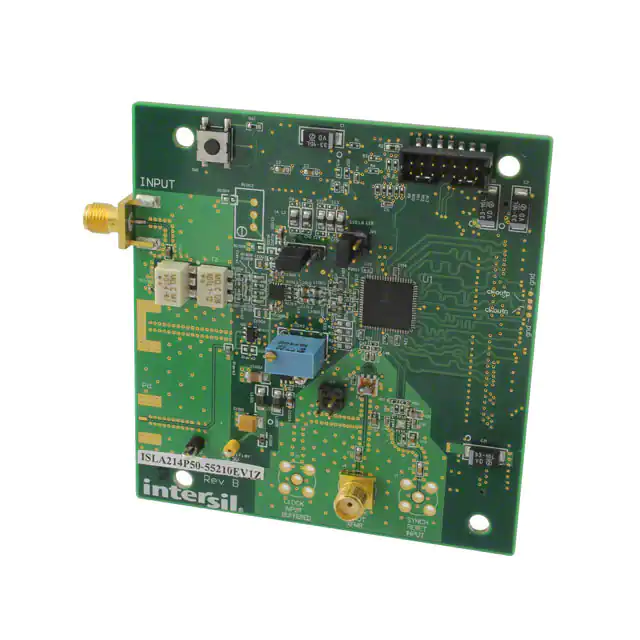

ISLA214P50-55210EV1ZBOARD EVAL FOR ISLA214P50 |
1,340 | - |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 14 | 500M | SPI | 2Vpp | 900mW @ 500MSPS | ISL55210, ISLA214P50 | Board(s) |
|
|
ADC12010EVAL/NOPBBOARD EVALUATION FOR ADC12010 |
4,415 | - |
|
Datasheet | - | - | Obsolete | 1 | 12 | 10M | Parallel | 1.4Vpp | - | ADC12010 | Board(s) |
|
ADS5231EVMADS5231EVM |
2,340 | - |
|
Datasheet | - | Box | Obsolete | 2 | 12 | 40M | Serial | 1.5 ~ 2Vpp | 320mW @ 40MSPS | ADS5231 | Board(s) |
|
ADS1146EVM-PDKKIT PERFORMANCE DEMO FOR ADS1146 |
2,684 | - |
|
Datasheet | - | Bulk | Obsolete | 1 | 16 | 5 ~ 2k | SPI | ±VREF/gain | 2.3mW @ 20sps | ADS1146 | Board(s) |
|
ADS1147EVM-PDKKIT PERFORMANCE DEMO FOR ADS1147 |
1,399 | - |
|
Datasheet | - | Bulk | Obsolete | 1 | 16 | 5 ~ 2k | SPI | ±VREF/gain | 2.3mW @ 20sps | ADS1147 | Board(s) |
|

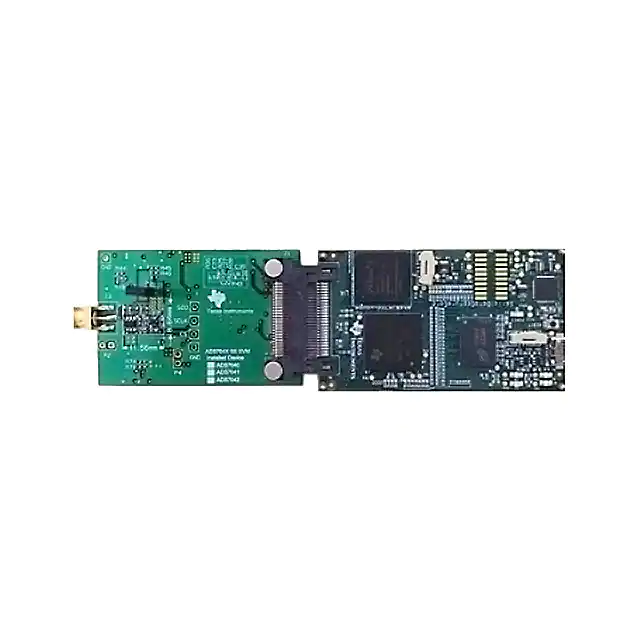

ADS7041EVM-PDKEVAL BOARD FOR ADS7041 |
1,946 | - |
|
Datasheet | - | Box | Obsolete | 1 | 10 | 1M | SPI | - | 0.189mW @ 1MSPS | ADS7041 | Board(s), Cable(s) |
|

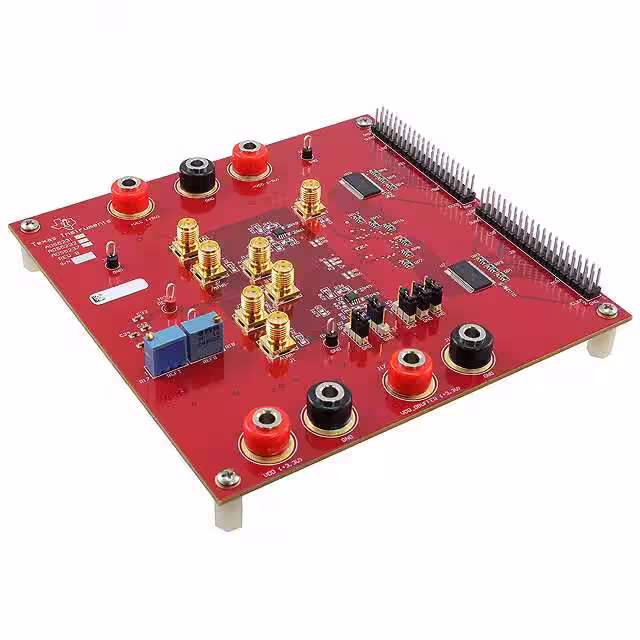

ADS5232EVMMODULE EVAL FOR ADS5232 |
2,097 | - |
|
Datasheet | - | Box | Obsolete | 2 | 12 | 65M | Serial | 1.5 ~ 2Vpp | 371mW @ 65MSPS | ADS5232 | Board(s) |
|

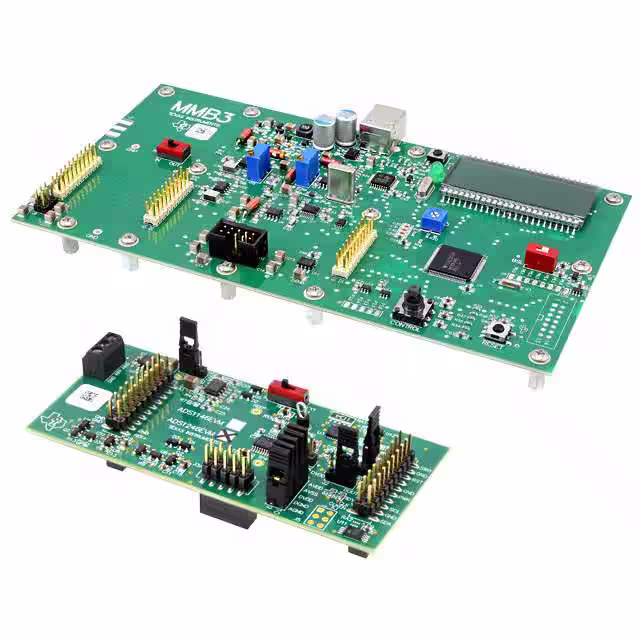

ADS1246EVM-PDKKIT DEMO FOR ADS1246 |
4,240 | - |
|
Datasheet | - | Box | Obsolete | 1 | 24 | 2k | SPI | - | - | ADS1246 | Board(s) |
