Analog to Digital Converters (ADCs) Evaluation Boards
Browse available Analog to Digital Converters (ADCs) Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADS1672EVM-PDKKIT DEMO FOR ADS1672 |
1,908 | - |
|
Datasheet | - | Box | Obsolete | 1 | 24 | 78.1k ~ 625k | Serial | ±VREF | - | ADS1672 | Board(s) |
|
ADS1262EVM-PDKEVAL BOARD FOR ADS1262 |
3,823 | - |
|
Datasheet | - | Box | Obsolete | 1 | 32 | 38k | Serial | ±VREF/gain | 24mW @ 38kSPS | ADS1262 | Board(s), Cable(s) |
|
ADS1263EVM-PDKEVAL BOARD FOR ADS1263 |
4,388 | - |
|
Datasheet | - | Box | Obsolete | 2 | 24, 32 | 38k | Serial | ±VREF/gain | 25mW @ 38kSPS | ADS1263 | Board(s), Cable(s) |
|
ADS7056EVM-PDKEVAL BOARD FOR ADS7056 |
1,474 | - |
|
Datasheet | - | Box | Obsolete | 1 | 14 | 2.5M | Serial, SPI | 0 ~ Vdd | 3.5mW @ 2.5MSPS | ADS7056 | Board(s), Cable(s) |
|
ADS9219EVMADS9219 EVALUATION MODULE |
1,204 | - |
|
Datasheet | - | Bulk | Active | 2 | 18 | 20M | LVDS - Serial | ±3.2V | 187mW @ 20MSPS | ADS9219 | Board(s) |
|
ADS1278EVM-PDKKIT EVAL/DEMO FOR ADS1278 |
4,600 | - |
|
Datasheet | - | Box | Obsolete | 8 | 24 | 128k | SPI | ±2.5V | 31mW @ 52kSPS | ADS1278 | Board(s) |
|
ADS1274EVM-PDKKIT PERFORMANCE DEV FOR ADS1274 |
2,388 | - |
|
Datasheet | - | Box | Obsolete | 4 | 24 | 128k | SPI | ±VREF | 31mW @ 52kSPS | ADS1274 | Board(s) |
|
ADC0801S040/DBBOARD EVALUATION FOR ADC0801S040 |
1,139 | - |
|
Datasheet | - | Box | Obsolete | 1 | 8 | 40M | Parallel | 1.8Vpp | 30mW @ 40MSPS | ADC0801S040 | Board(s) |
|

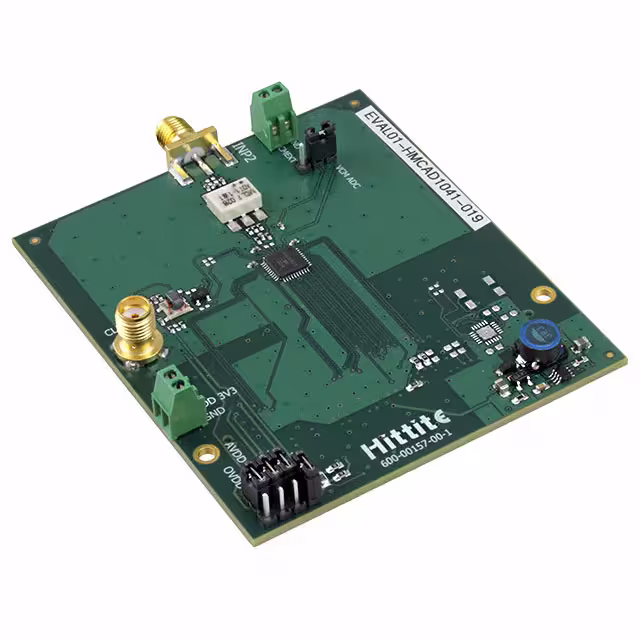

EVAL01-HMCAD1041BOARD EVALUATION HMCAD1041-80 |
1,531 | - |
|
Datasheet | EasyBoard™ | Box | Obsolete | 1 | 10 | 65M, 80M | Parallel | 2Vpp | - | HMCAD1041 | Board(s) |
|

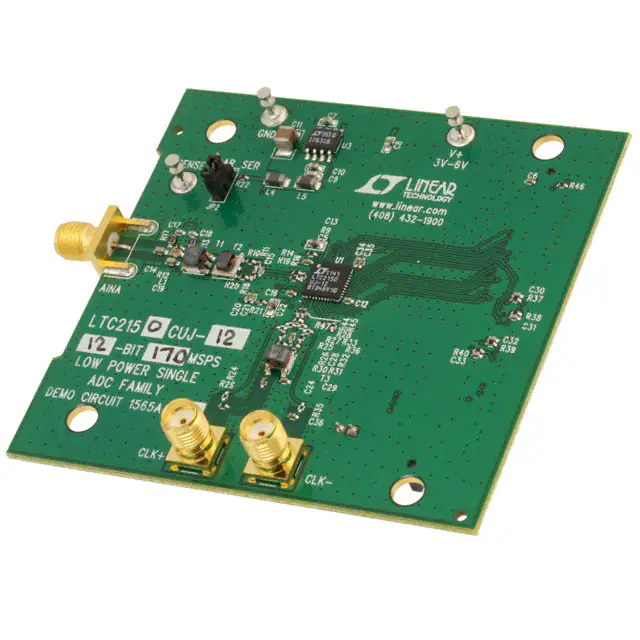

DC1565A-FBOARD DEMO 170MSPS LTC2150-12 |
4,530 | - |
|
Datasheet | - | Bulk | Active | 1 | 12 | 170M | Parallel, Serial, SPI | 1.5Vpp | 338mW @ 170MSPS | LTC2150-12 | Board(s) |
|
DC1370A-FBOARD DEMO 25MSPS LTC2256-14 |
3,814 | - |
|
Datasheet | - | Bulk | Active | 1 | 14 | 25M | Parallel, Serial, SPI | 1 ~ 2Vpp | 115.2mW @ 25MSPS | LTC2256-14 | Board(s) |
|

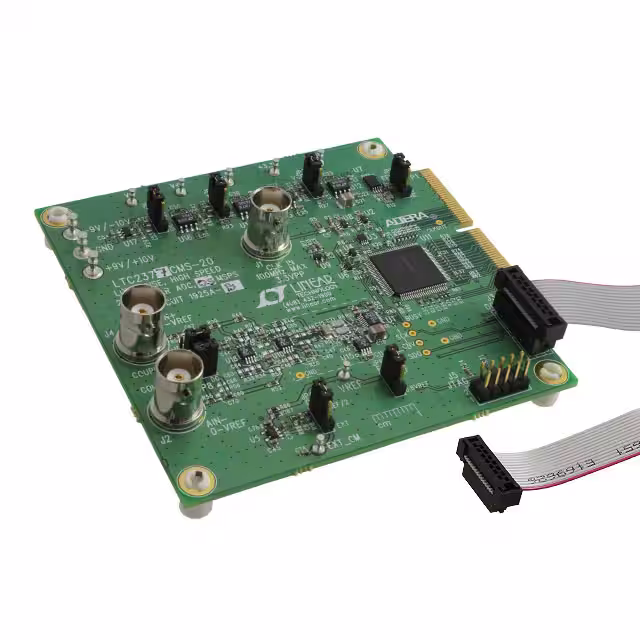

DC1925A-BEVAL BOARD FOR LTC2377-20 |
4,480 | - |
|
Datasheet | - | Box | Active | 1 | 20 | 500k | SPI | ±VREF | 10.5mW @ 500kSPS | LTC2377-20 | Board(s) |
|

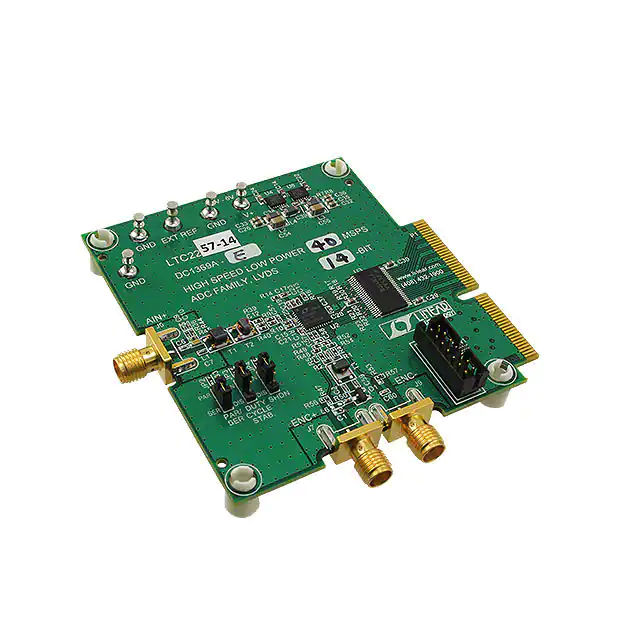

DC1369A-EBOARD EVAL LTC2257-14 |
1,959 | - |
|
Datasheet | - | Box | Active | 1 | 14 | 40M | Parallel | 1 ~ 2Vpp | 129.4mW @ 40MSPS | LTC2257-14 | Board(s) |
|

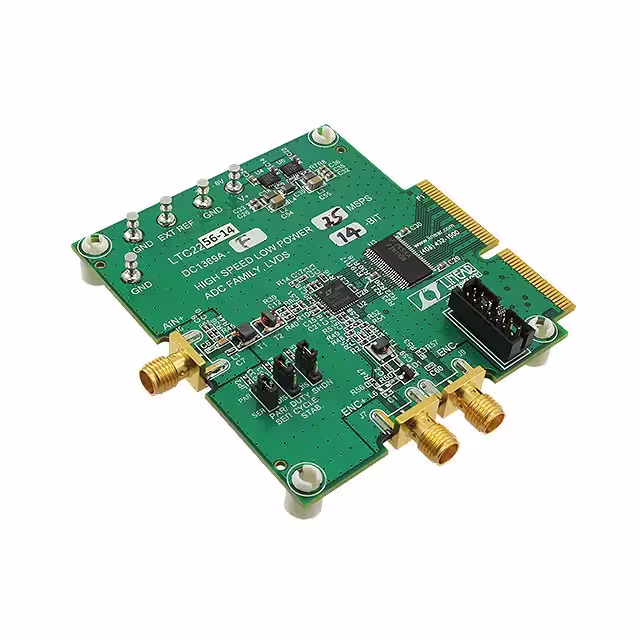

DC1369A-FBOARD EVAL LTC2256-14 |
3,354 | - |
|
Datasheet | - | Box | Active | 1 | 14 | 25M | Parallel | 1 ~ 2Vpp | 115.2mW @ 25MSPS | LTC2256-14 | Board(s) |
|
DC854D-HEVAL BOARD FOR LTC2216 |
1,894 | - |
|
Datasheet | - | Box | Active | 1 | 16 | 80M | Parallel | 2.25Vpp | 1.24W @ 80MSPS | LTC2216 | Board(s) |
|

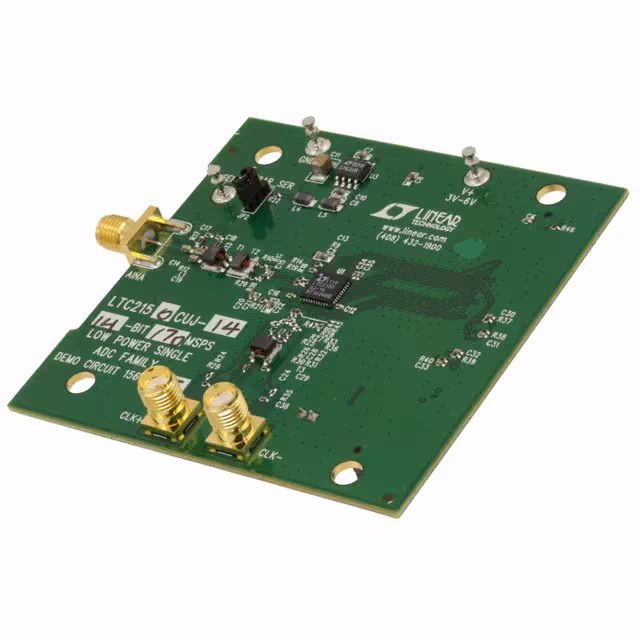

DC1565A-CBOARD DEMO 170MSPS LTC2150-14 |
3,240 | - |
|
Datasheet | - | Bulk | Active | 1 | 14 | 170M | Parallel, Serial, SPI | 1.5Vpp | 349mW @ 170MSPS | LTC2150-14 | Board(s) |
|

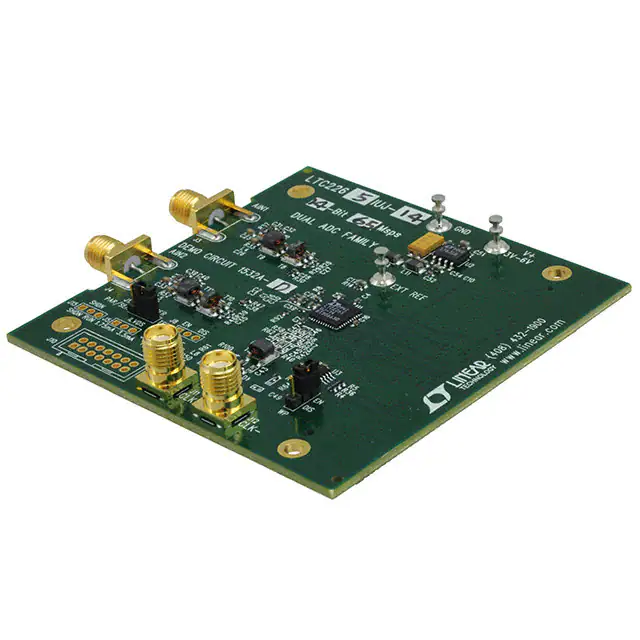

DC1532A-DBOARD DEMO 65MSPS LTC2265-14 |
2,609 | - |
|
Datasheet | - | Bulk | Active | 2 | 14 | 65M | Serial LVDS | 1 ~ 2Vpp | 202mW @ 65MSPS | LTC2265-14 | Board(s) |
|

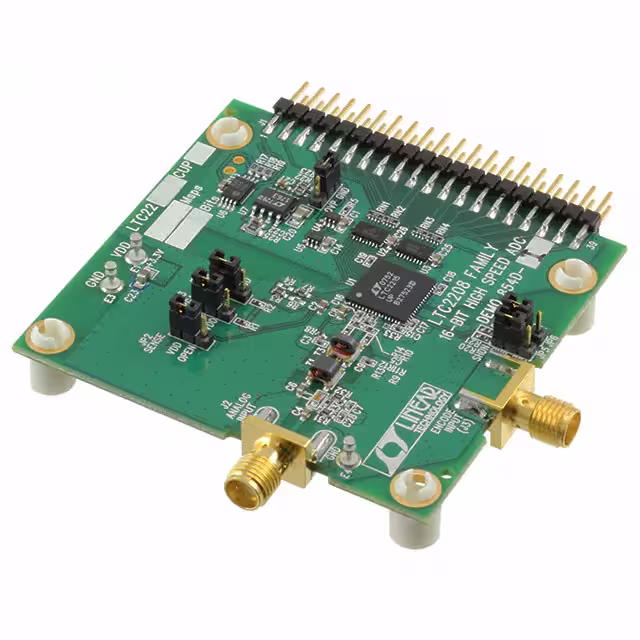

DC854D-IEVAL BOARD FOR LTC2215 |
2,322 | - |
|
Datasheet | - | Box | Active | 1 | 16 | 65M | Parallel | 2.25Vpp | 964mW @ 65MSPS | LTC2215 | Board(s) |
|
|
DC854D-JEVAL BOARD FOR LTC2215 |
2,786 | - |
|
Datasheet | - | Box | Active | 1 | 16 | 65M | Parallel | 2.25Vpp | 964mW @ 65MSPS | LTC2215 | Board(s) |
|
KDC5512H-Q48EVALDAUGHTER CARD FOR KAD5512 |
1,965 | - |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 12 | 250M | Parallel | 1.47Vpp | 429mW @ 250MSPS | KAD5512HP-25, KMB001 Motherboard | Board(s) |
Analog to Digital Converters (ADCs) Evaluation Boards FAQ
What Analog to Digital Converters (ADCs) Evaluation Boards components can I source from EGOO?
You can browse available Analog to Digital Converters (ADCs) Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Analog to Digital Converters (ADCs) Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
