DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

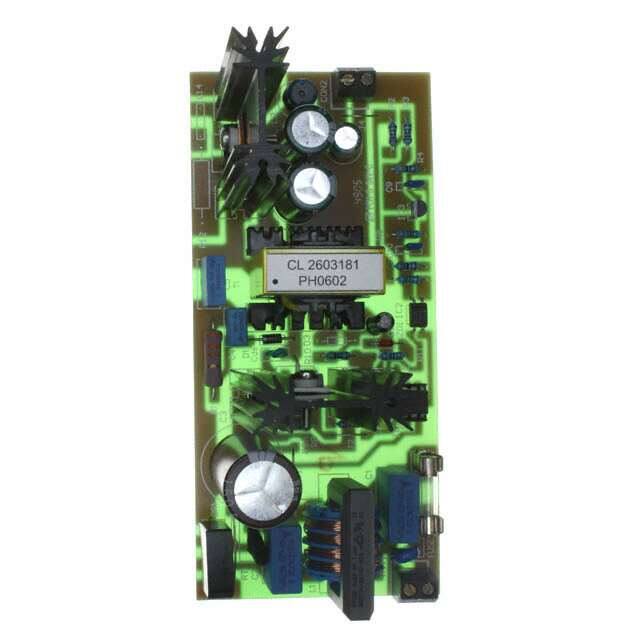

EVALSF3-ICE3DS01EVAL BOARD FOR ICE3DS01 |
3,459 | - |
|
Datasheet | CoolMOS™, CoolSET™ | Box | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 28 W | 5V, 12V | 2A, 1.5A | 90 ~ 270 VAC | Flyback | 110kHz | Board(s) | ICE3DS01 |
|

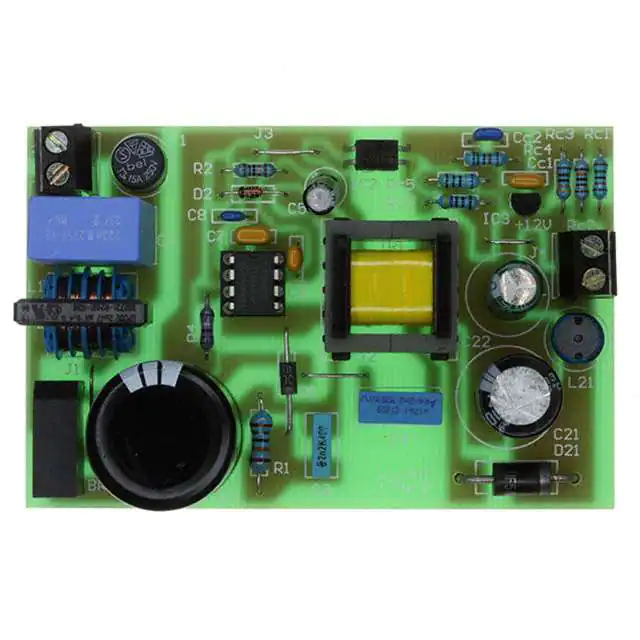

EVALSF3-ICE3B0565EVAL BOARD FOR ICE3B0565 |
3,670 | - |
|
Datasheet | CoolSET®F3 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | 67kHz | Board(s) | ICE3B0565 |
|

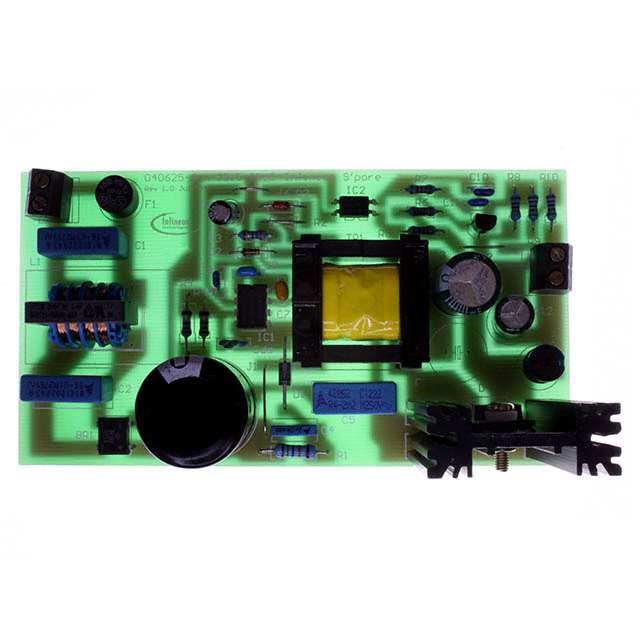

EVALSF3-ICE3B1565EVAL BOARD FOR ICE3B1565 |
4,098 | - |
|
Datasheet | CoolSET®F3 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 20 W | 16V | 1.25A | 85 ~ 265 VAC | Flyback | 67kHz | Board(s) | ICE3B1565 |
|

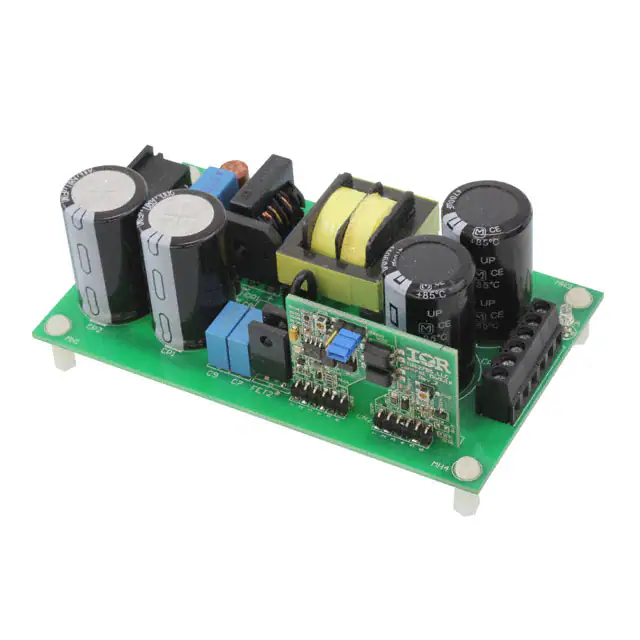

IRAUDPS3EVAL BOARD FOR IRS27952 |
2,985 | - |
|
Datasheet | - | Box | Discontinued at Digi-Key | AC/DC, Primary Side | 2 Non-Isolated Outputs | - | ±30V | - | 88 ~ 132 VAC, 176 ~ 264 VAC | Resonant | - | Board(s) | IRS27952 |
|
IRDC2085S-SEVAL BOARD FOR IR2085S IRF7493 |
3,002 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 200 W | 6V ~ 10V | 20A | 36V ~ 60V | Buck | 500kHz | Board(s) | IR2085S, IRF7493, IRF7832 |
|
|
IRDC2085S-DFEVAL BOARD FOR IR2085S IRF6618 |
3,272 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 200 W | 6V ~ 10V | 20A | 36V ~ 60V | Buck | 500kHz | Board(s) | IR2085S, IRF6618, IRF7493 |
|

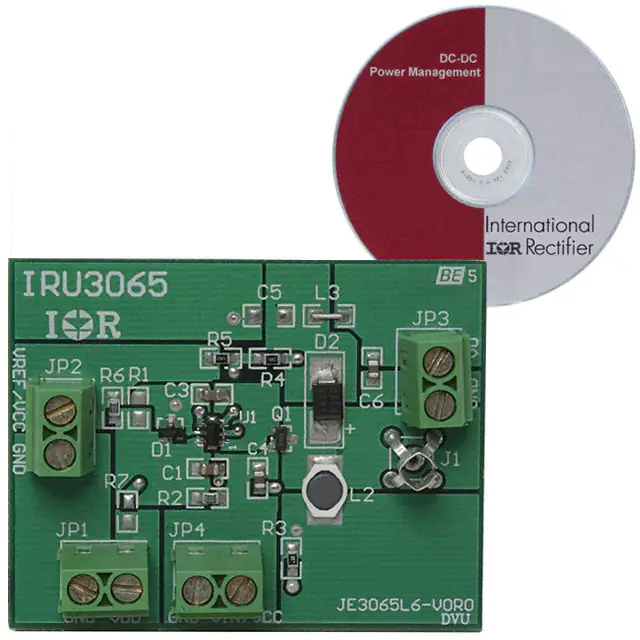

IRDC3065EVAL BOARD FOR IRU3065 |
4,549 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 200mA | 4V ~ 7V | Inverting | 1.2MHz | Board(s) | IRU3065 |

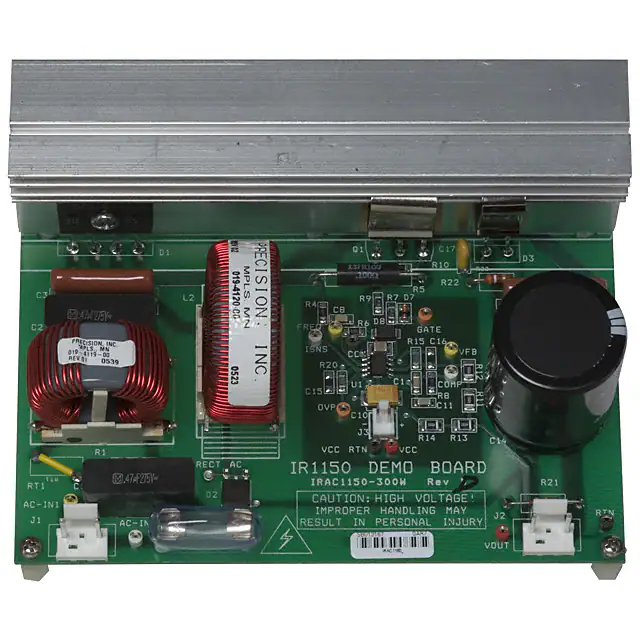

.JPG "IRAC1150-300W")
|
IRAC1150-300WEVAL BOARD FOR IR1150S |
3,557 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Secondary Side | 1 Non-Isolated Output | 300 W | 387V | - | 90 ~ 264 VAC | - | 100kHz | Board(s) | IR1150S |
|

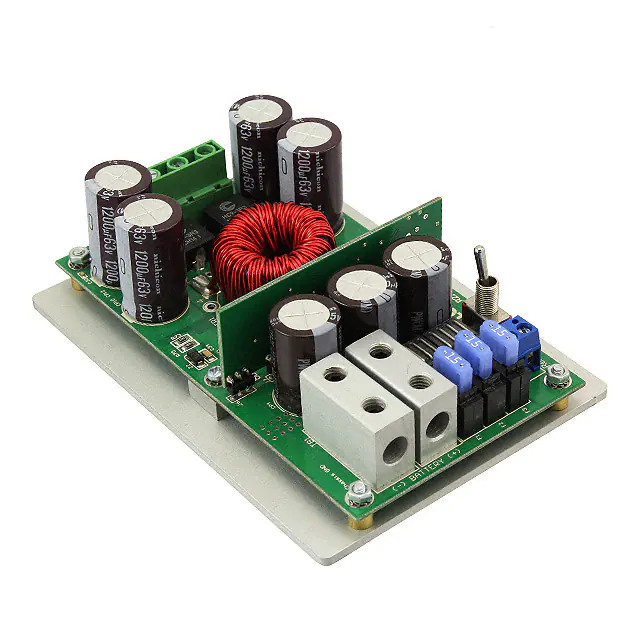

IRAUDPS1EVAL BOARD FOR IR2085 IRF6648 |
3,604 | - |
|
Datasheet | - | Box | Discontinued at Digi-Key | DC/DC, Positive and Negative | 1 Isolated Output | 500 W | ±35V | 7A | 10V ~ 18V | Boost | - | Board(s) | IR2085, IRF6648 |
|

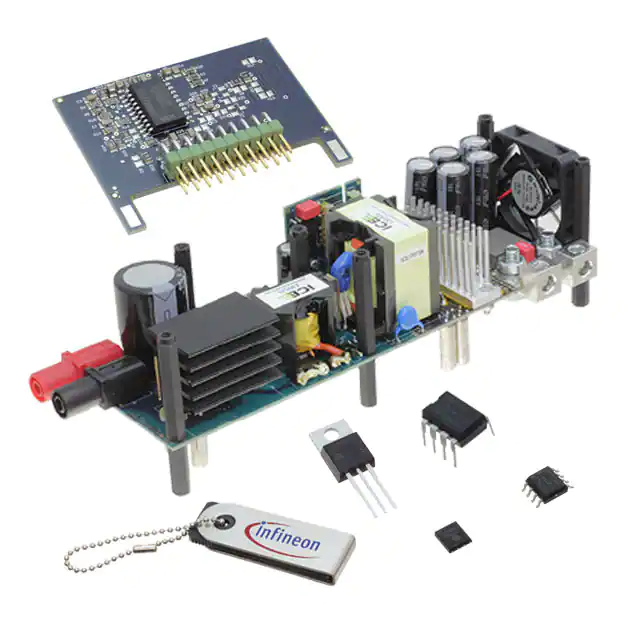

EVAL600W12VLLCP7TOBO1EVAL BOARD ICE2HS01G ICE2QR2280Z |
4,921 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 350V ~ 410V | Buck | - | Board(s) | ICE2HS01G, ICE2QR2280Z |
