DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

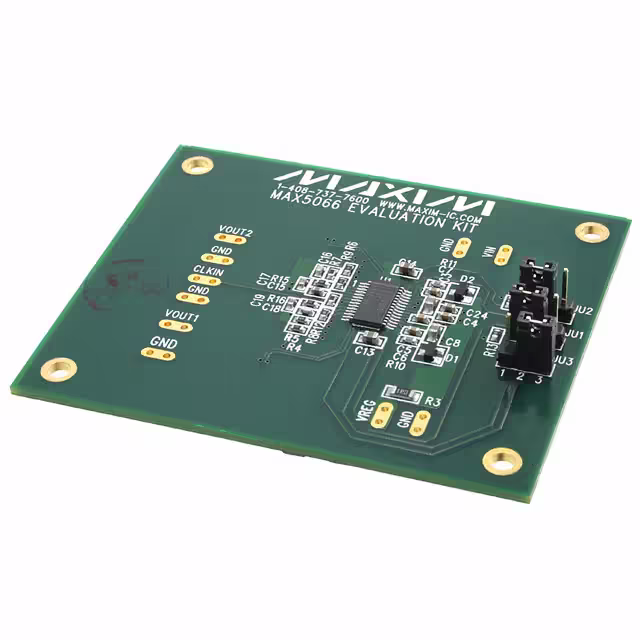

MAX5066EVKITEVAL BOARD FOR MAX5066 |
1,783 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.8V, 1.3V | 10A, 10A | 5V ~ 16V | Buck | 500kHz | Board(s) | MAX5066 |
|

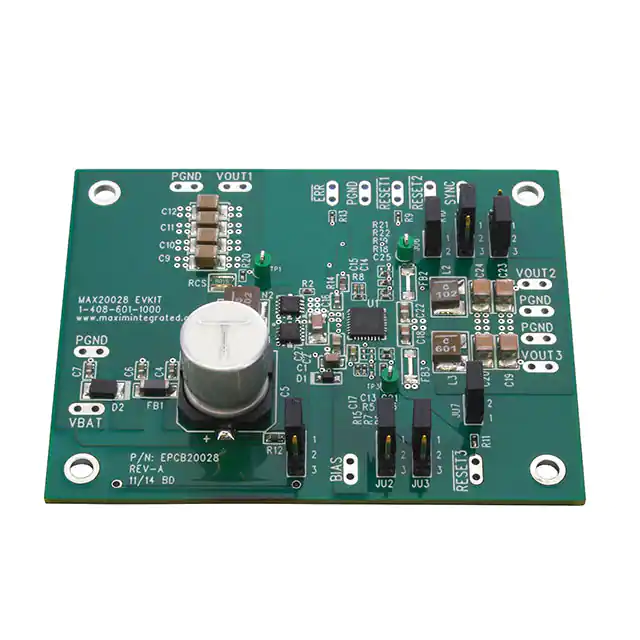

MAX20028EVKIT#EVAL BOARD FOR MAX20028 |
1,283 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX20028 |
|
MAX20073EVKIT#EVAL BOARD FOR MAX20073 |
2,611 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20073 |
|
|
MAX5090EVKITEVAL BOARD FOR MAX5090 |
1,167 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 7.5V ~ 76V | Buck | 125kHz | Board(s) | MAX5090 |
|

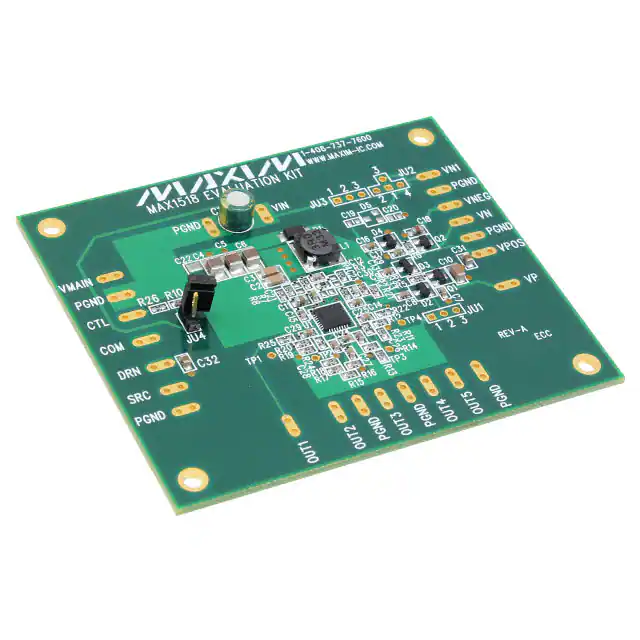

MAX1518EVKITEVAL BOARD FOR MAX1518 |
1,936 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | - | 13V, 25V, -8V | 650mA, 15mA, 10mA | 4.5V ~ 5.5V | Boost | 1.2MHz | Board(s) | MAX1518 |
|
MAX17062EVKIT+EVAL BOARD FOR MAX17062 |
4,881 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | - | 15V, 29V, -15V | 600mA, 30mA, 30mA | 4.5V ~ 5.5V | Boost | 1.2MHz | Board(s) | MAX17062 |
|
MAX17014EVKIT+EVAL BOARD FOR MAX17014 |
2,834 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 3.3V, 16V, 35V, -6V | 2A, 1.5A, 100mA, 50mA | 10.8V ~ 13.2V | Boost, Buck, Inverting | 1.2MHz | Board(s) | MAX17014 |
|
MAX17113EVKIT+EVAL BOARD FOR MAX17113 |
1,671 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 3.3V, 16V, 35V, -6V | 2A, 1.5A, 100mA, 100mA | 10.8V ~ 13.2V | Boost, Buck, Inverting | 450kHz | Board(s) | MAX17113 |
|

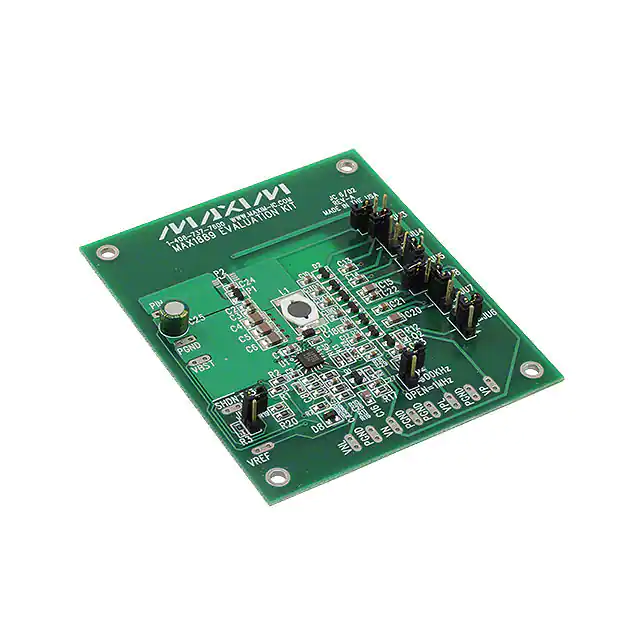

MAX1889EVKITEVAL BOARD FOR MAX1889 |
2,851 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | - | 9V, 20V, -7V | 200mA, 10mA, 10mA | 2.7V ~ 5.5V | Boost | 1MHz | Board(s) | MAX1889 |
|
MAX16920BEVKIT+EVAL BOARD FOR MAX16920B |
2,744 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V | 1.5A, 600mA, 150mA, 150mA | 5.5V ~ 18V | Buck | 2.2MHz | Board(s) | MAX16920B |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
