DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

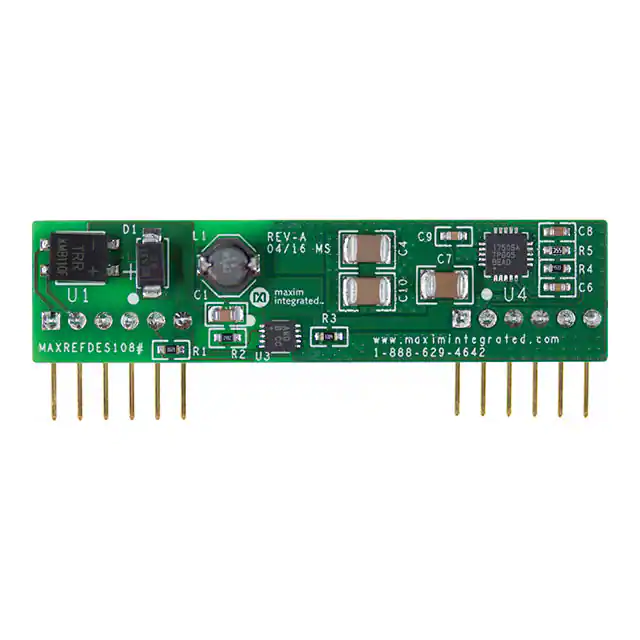

MAXREFDES108#EVAL BOARD FOR MAX5969A MAX17505 |
2,015 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | 12 W | 12V | 1A | 36V ~ 57V | Buck | 500kHz | Board(s) | MAX5969A, MAX17505 |
|
MAXREFDES98#EVAL BOARD FOR MAX5969A MAX17503 |
2,309 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | 12.5 W | 5V | 2.5A | 36V ~ 57V | Buck | 300kHz | Board(s) | MAX5969A, MAX17503 |
|
MAX17645DEVKITB#EVAL BOARD FOR MAX17645D |
3,230 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 7V ~ 36V | Buck | 650kHz | Board(s) | MAX17645D |
|
|
MAX17645BEVKITB#EVAL BOARD FOR MAX17645B |
4,762 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 7V ~ 36V | Buck | 650kHz | Board(s) | MAX17645B |
|

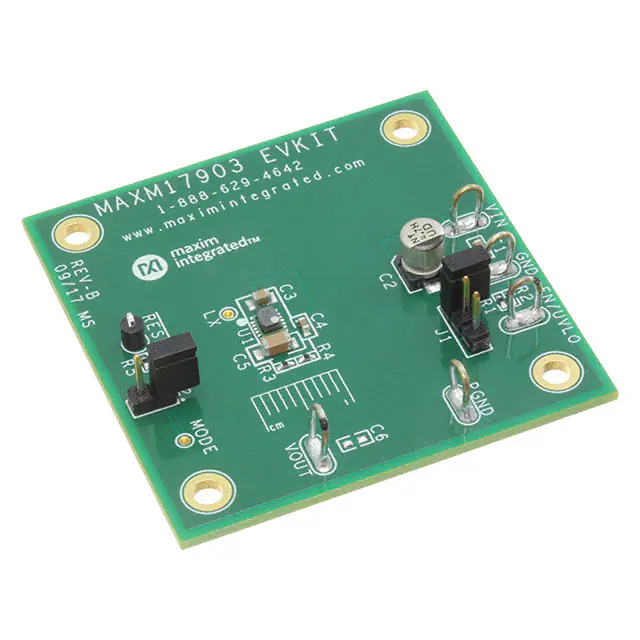

MAXM17903EVKIT#EVAL BOARD FOR MAXM17903 |
3,412 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 300mA | 4.5V ~ 21.5V | Buck | 500kHz | Board(s) | MAXM17903 |
|
|
MAX17573EVKITB#EVAL BOARD FOR MAX17573 |
2,678 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3.5A, 3.5A | 6.5V ~ 60V | Buck | 500kHz | Board(s) | MAX17573 |
|

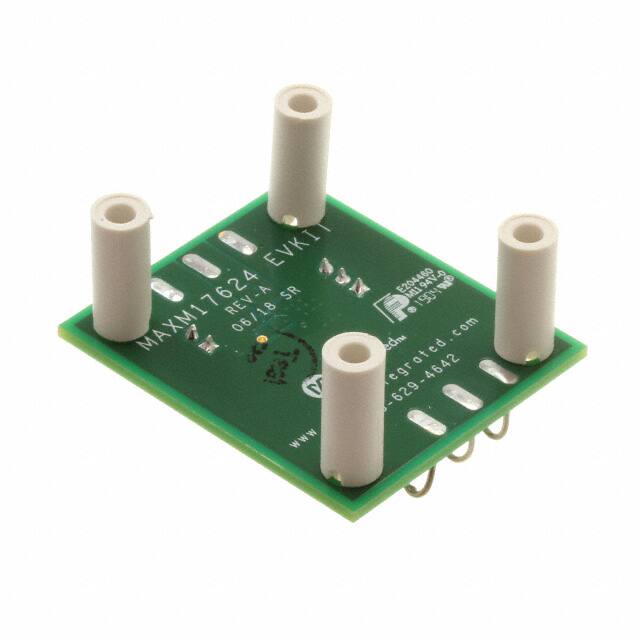

MAXM17624EVKIT#EVAL BOARD FOR MAXM17624 |
2,670 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3.6V ~ 5.5V | Buck | 4MHz | Board(s) | MAXM17624 |
|
MAX17761EVKITBE#EVAL BOARD FOR MAX17761 |
4,205 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.5V ~ 76V | Buck | 400kHz | Board(s) | MAX17761 |
|

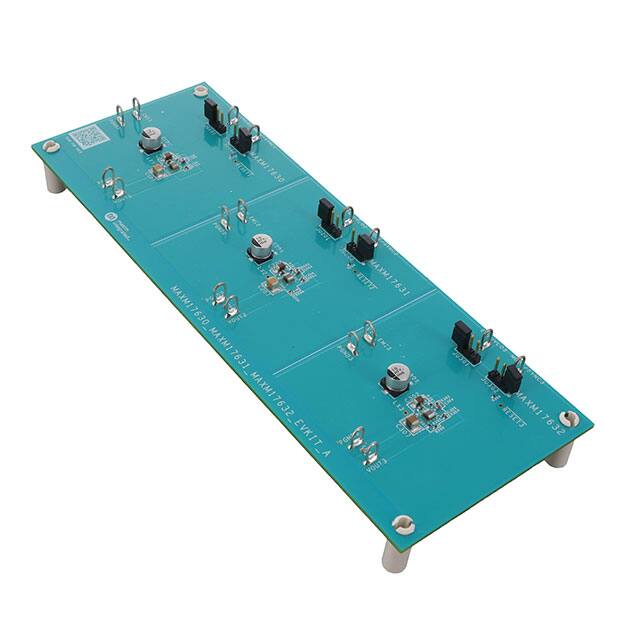

MAXM17632EVKIT#EVAL BOARD FOR MAXM17632 |
2,643 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 1A | 20V ~ 36V | Buck | 2.15MHz | Board(s) | MAXM17632 |
|

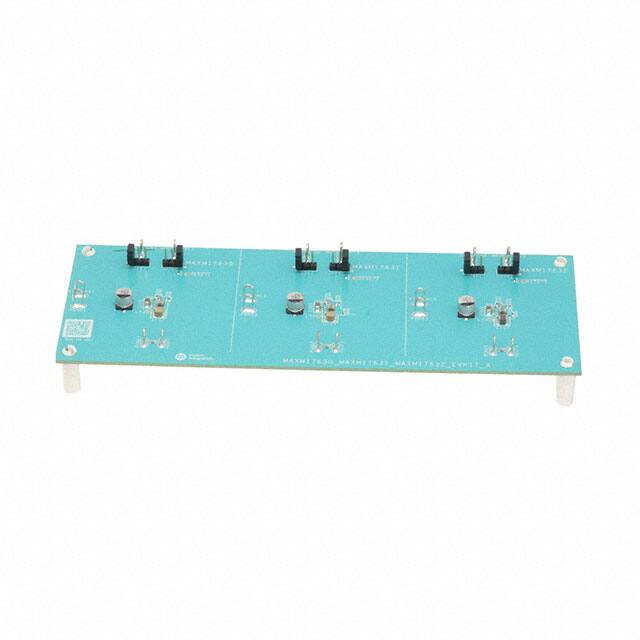

MAXM17630EVKIT#EVAL BOARD FOR MAXM17630 |
3,463 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4.5V ~ 36V | Buck | 900kHz | Board(s) | MAXM17630 |
