DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

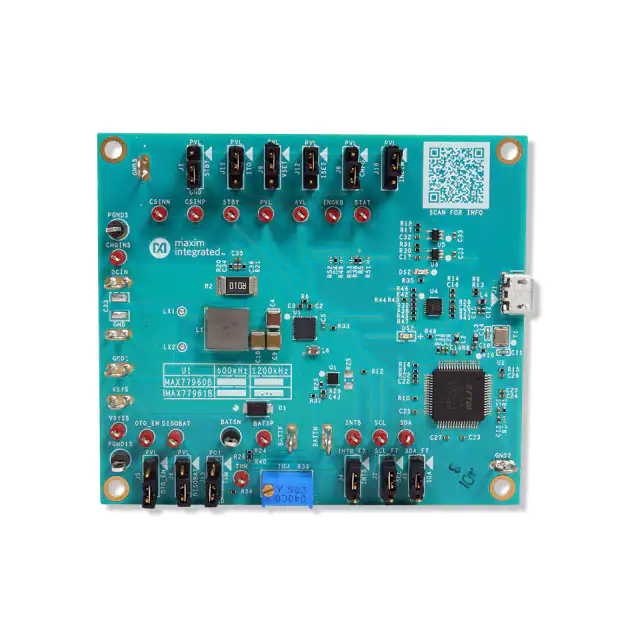

MAX77960BEVKIT12#EVAL BOARD FOR MAX77960B |
1,168 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Charger | 1 Non-Isolated Output | - | - | 3A | 3.5V ~ 25.4V | Buck-Boost | 1.2MHz | Board(s) | MAX77960B |
|

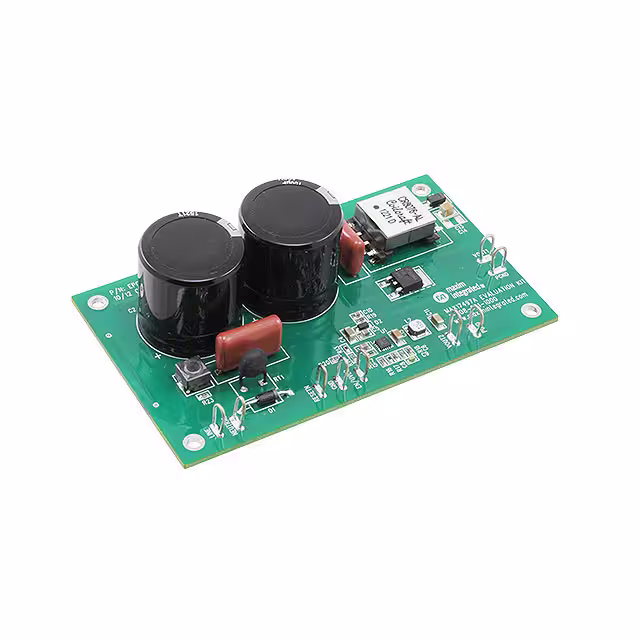

MAX17497AEVKIT#EVAL BOARD FOR MAX17497A |
4,735 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | - | 3.3V, 12V | 600mA, 300mA | 85 ~ 265 VAC | Flyback | 250kHz | Board(s) | MAX17497A |
|

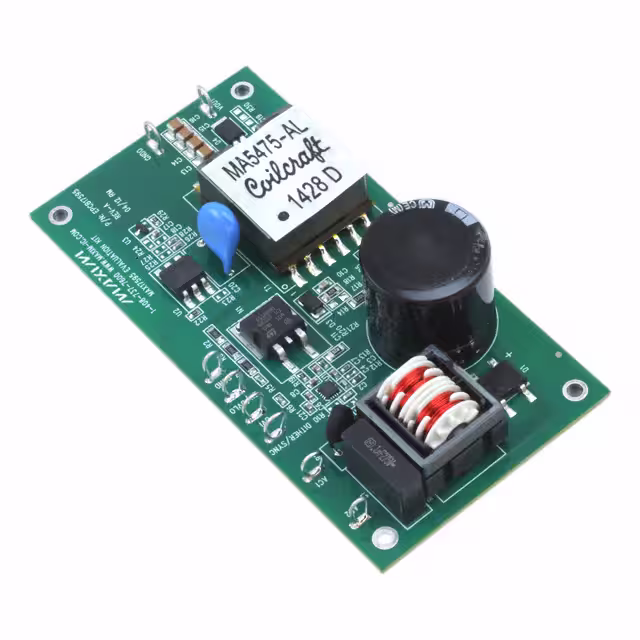

MAX17595EVKIT#EVAL BOARD FOR MAX17595 |
3,943 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 30 W | 15V | 2A | 85 ~ 265 VAC, 120V ~ 375V | Flyback | 100kHz | Board(s) | MAX17595 |
|

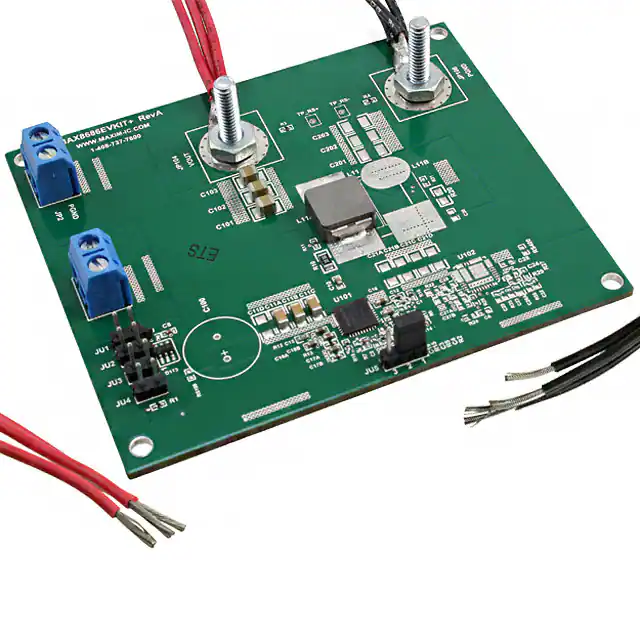

MAX8686EVKIT#EVAL BOARD FOR MAX8686 |
2,522 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V ~ 5.5V | 25A | 4.5V ~ 20V | Buck | 300kHz ~ 1MHz | Board(s) | MAX8686 |
|
MAX15059EVKIT+EVAL BOARD FOR MAX15059 |
2,061 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 70V | 4mA | 2.8V ~ 5.5V | Boost | 400kHz | Board(s) | MAX15059 |
|

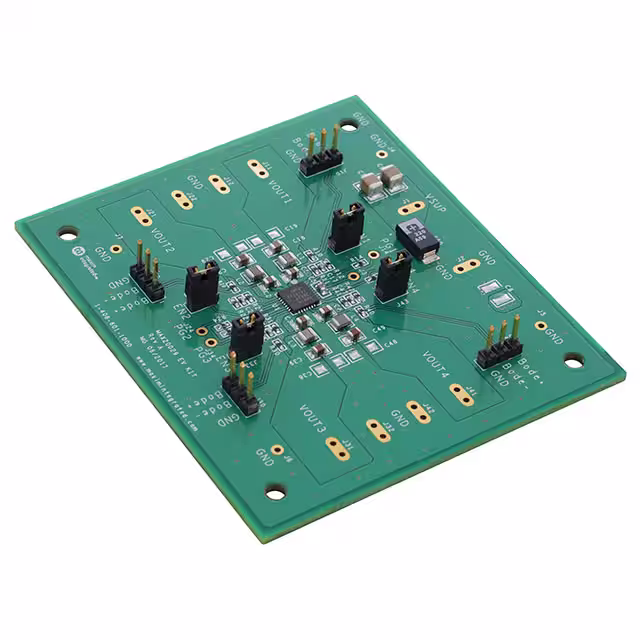

MAX20029EVKIT#EVAL BOARD FOR MAX20029 |
4,706 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V ~ 4V | 1.5A, 1.5A, 1.5A, 1.5A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20029 |
|

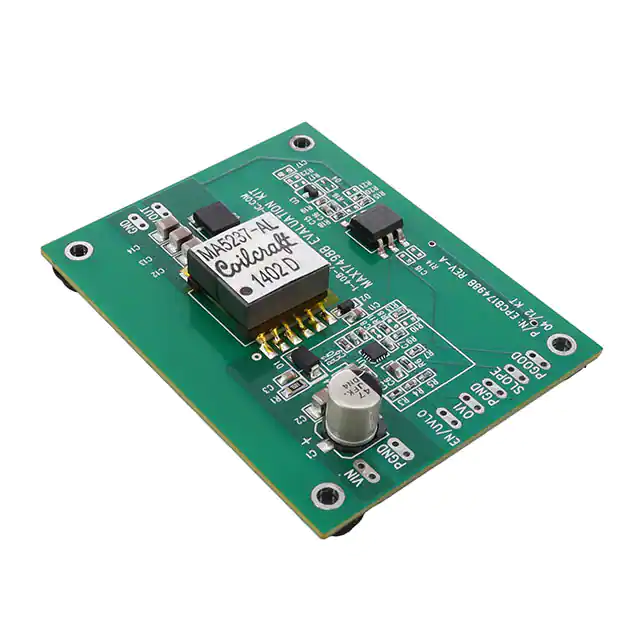

MAX17498BEVKIT#EVAL BOARD FOR MAX17498B |
3,534 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 1.5A | 18V ~ 36V | Flyback | 500kHz | Board(s) | MAX17498B |
|

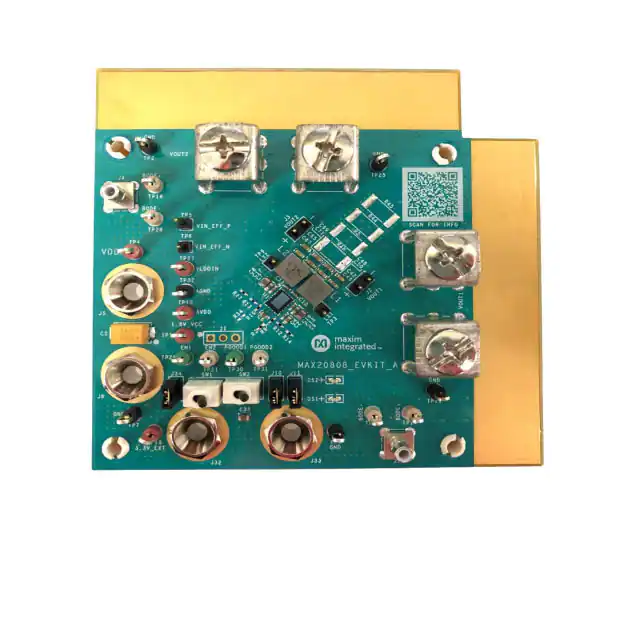

MAX20808EVKIT#EVAL BOARD FOR MAX20808 |
4,292 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 4A, 4A | 2.7V ~ 16V | Buck | - | Board(s) | MAX20808 |
|

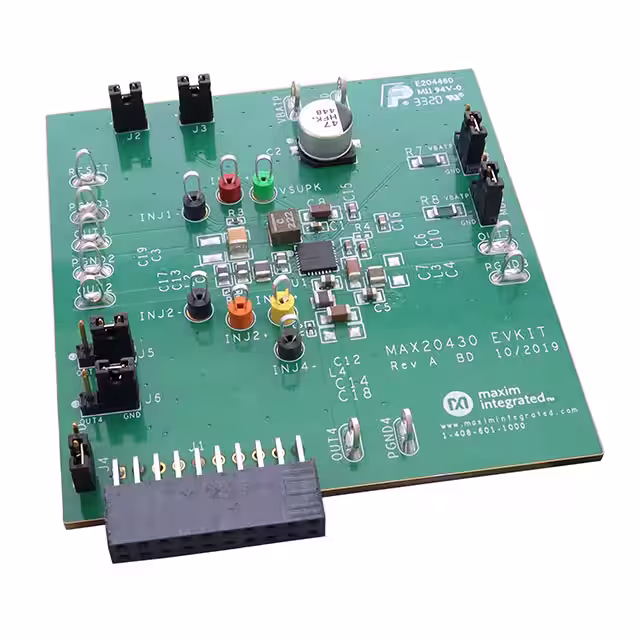

MAX20430EVKIT#EVAL BOARD FOR MAX20430 |
1,348 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 4 Non-Isolated Outputs | - | 1V, 1.2V, 3.3V, 5V | 3A, 3A, 2.5A, 500mA | 3.5V ~ 36V | - | 2.1MHz | Board(s) | MAX20430 |
|
MAX17554AEVKIT#EVAL BOARD FOR MAX17554A |
2,263 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 50mA | 10V ~ 60V | Buck | 70kHz | Board(s) | MAX17554A |
