DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX5022EVKITEVAL BOARD FOR MAX5022 |
4,748 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 85 ~ 265 VAC | Flyback | 262kHz | Board(s) | MAX5022 |
|

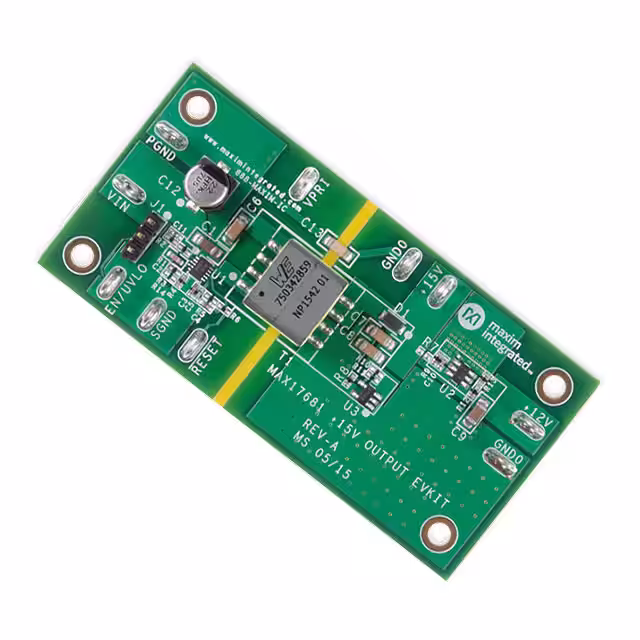

MAX17681EVKITC#EVAL BOARD 750342859 MAX17681 |
1,558 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 15V | 200mA | 17V ~ 36V | Buck | 200kHz | Board(s) | 750342859, MAX17681 |
|

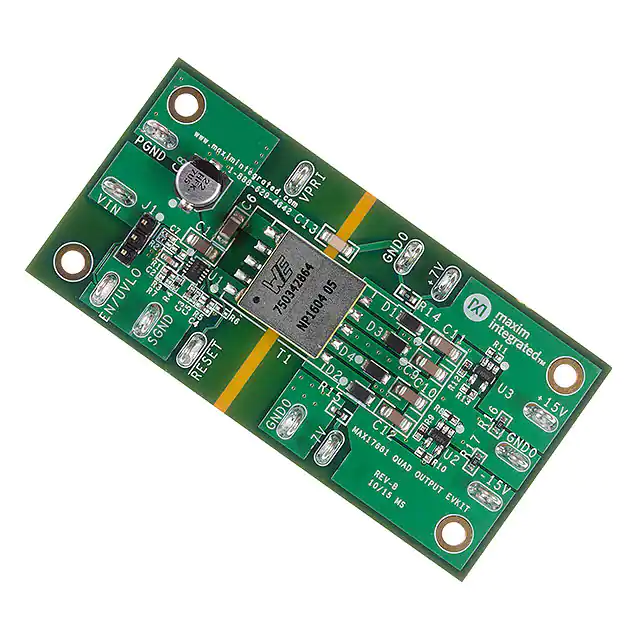

MAX17681EVKITE#EVAL BOARD 750342864 MAX17681 |
2,209 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±15V | 75mA | 17V ~ 36V | Buck | 200kHz | Board(s) | 750342864, MAX17681 |
|
MAX20012EVKIT#EVAL BOARD FOR MAX20012 |
4,554 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V, 1.5875V | 24A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20012 |
|

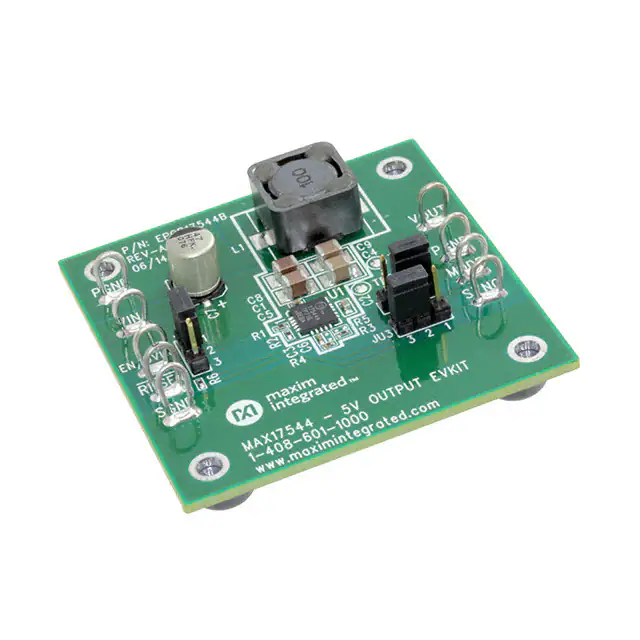

MAX17544EVKITB#EVAL BOARD FOR MAX17544 |
4,771 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 7.5V ~ 42V | Buck | 500kHz | Board(s) | MAX17544 |
|

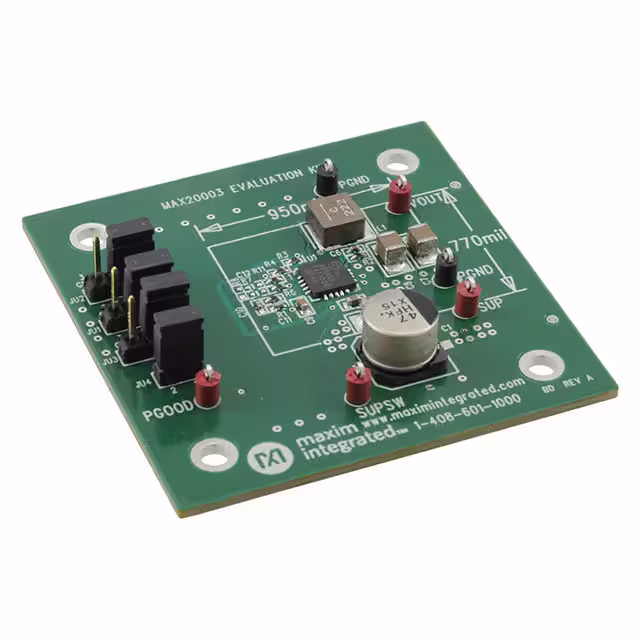

MAX20003EVKIT#EVAL BOARD FOR MAX20002 MAX20003 |
3,141 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3.5V ~ 36V | Buck | - | Board(s) | MAX20002, MAX20003 |
|

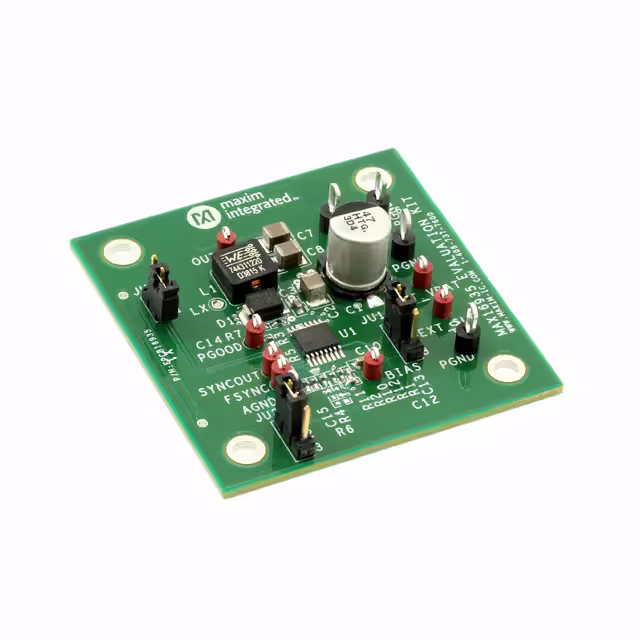

MAX16935EVKIT#EVAL BOARD FOR MAX16935 |
3,962 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.5V ~ 36V | Buck | - | Board(s) | MAX16935 |
|
MAX16992EVKIT#EVAL BOARD FOR MAX16992 |
4,498 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 8V | 2A | 4.5V ~ 36V | Boost | 2.2MHz | Board(s) | MAX16992 |
|
|
MAX25223EVKIT#EVAL BOARD FOR MAX25223 |
1,531 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3.5A | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | MAX25223 |
|

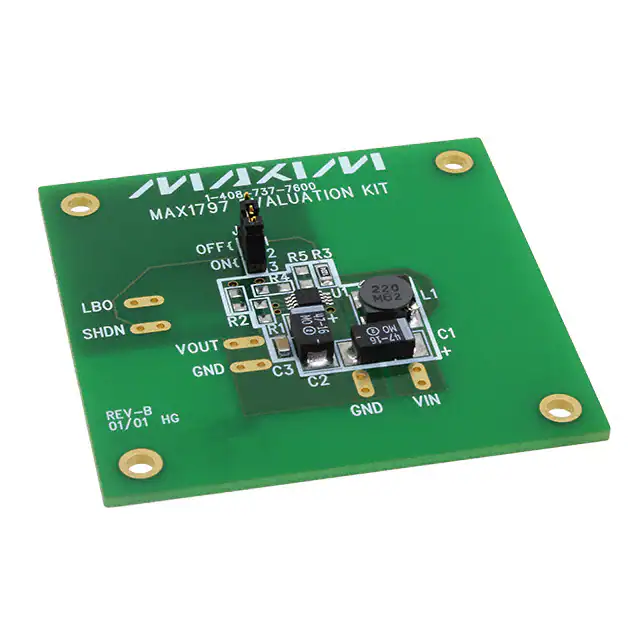

MAX1797EVKITEVAL BOARD FOR MAX1797 |
1,046 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 500mA | 2V ~ 3.3V | Boost | - | Board(s) | MAX1797 |
