DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADM00821EVAL BOARD FOR MIC4684 |
2,457 | - |
|
Datasheet | SuperSwitcher™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V, 3.3V or 5V | 2A | 4V ~ 30V | Buck | 200kHz | Board(s) | MIC4684 |
|
MCP1650EVEVAL BOARD FOR MCP1650 MCP1651 |
4,459 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 5V, 12V | 1A, 400mA | - | Boost | 750kHz | Board(s) | MCP1650, MCP1651, MCP1652, MCP1653 |
|
ADM00845EVAL BOARD FOR MIC28515 |
1,078 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 4.5V ~ 75V | Buck | 300kHz | Board(s) | MIC28515 |
|
ADM00812EVAL BOARD FOR MIC7401 |
2,180 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 6 Non-Isolated Outputs | - | 1.05V, 1.1V, 1.25V, 1.8V, 1.8V or 12V | 3A, 1A, 800mA, 500mA, 500mA or 200mA | 2.4V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | MIC7401 |
|
ADM00826EVAL BOARD FOR MIC24045 |
1,647 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.64V ~ 5.25V | 5A | 4.5V ~ 19V | Buck | - | Board(s), Cable(s) | MIC24045 |
|
ADM00809EVAL BOARD FOR MIC45404 |
2,586 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V, 0.8V, 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 5A | 4.5V ~ 19V | Buck | - | Board(s) | MIC45404 |
|

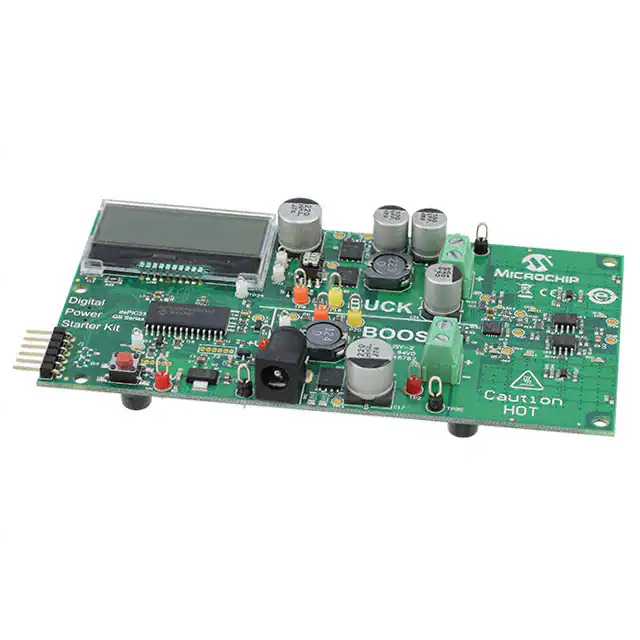

DM330017-2EVAL BOARD FOR DSPIC33EP64GS502 |
4,215 | - |
|
Datasheet | MPLAB® | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 15V | 2.5A, 370mA | 7V ~ 11V | Boost, Buck | 350kHz | Board(s), Cable(s), Power Supply | dsPIC33EP64GS502 |
|
EV66P64AEVAL BOARD FOR MIC2133 |
1,755 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 32V | 50A | 4.5V ~ 75V | Buck | 800kHz | Board(s) | MIC2133 |
|

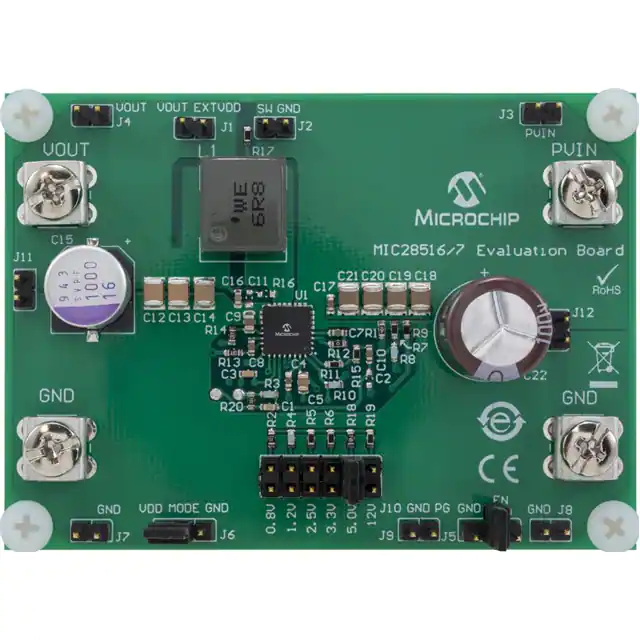

ADM00995EVAL BOARD FOR MIC28517 |
1,659 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 32V | 8A | 4.5V ~ 70V | Buck | - | Board(s) | MIC28517 |
|
|
EV71S00AEVAL BOARD FOR MIC21LV32 |
2,233 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.82V | 50A | 4.5V ~ 36V | Buck | - | Board(s) | MIC21LV32 |
