DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

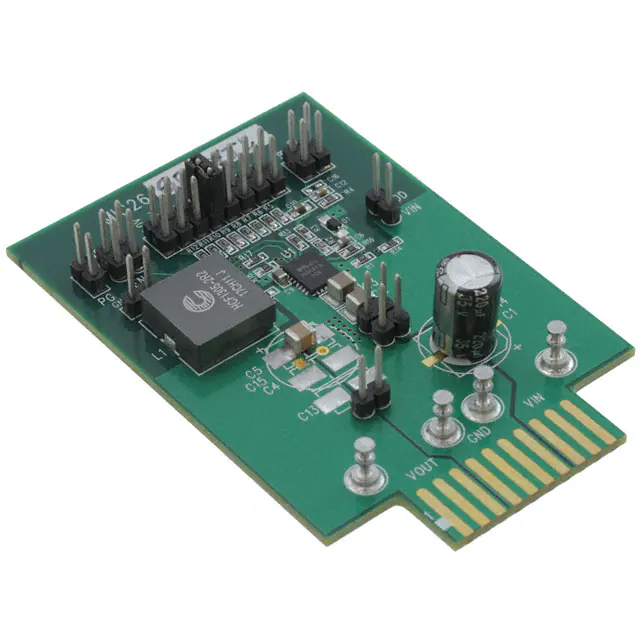

MIC26603YJL-EVEVAL BOARD FOR MIC26603 |
1,724 | - |
|
Datasheet | HyperLight Load®, SuperSwitcher IIG™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 5V | Buck | 600kHz | Board(s) | MIC26603 |
|

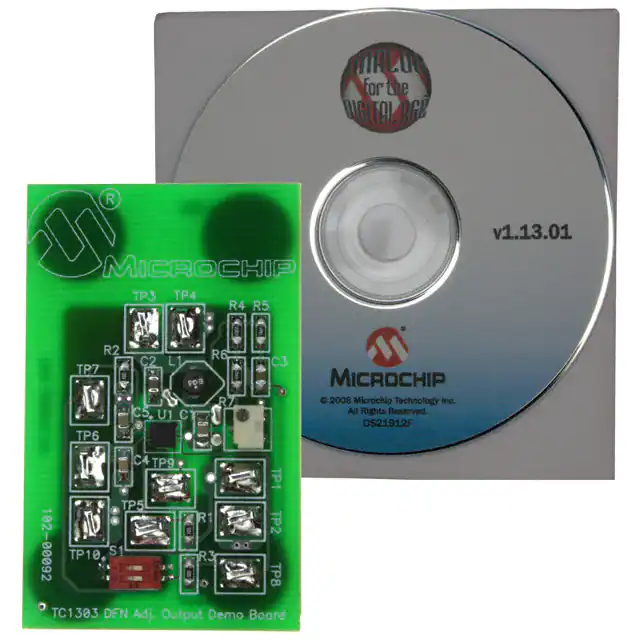

TC1303DM-DDBK2EVAL BOARD FOR TC1303 |
2,394 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 500mA, 300mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | TC1303 |
|
ADM00360EVAL BOARD FOR MCP16301 |
4,183 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 4V ~ 26V | Buck | 500kHz | Board(s) | MCP16301 |
|

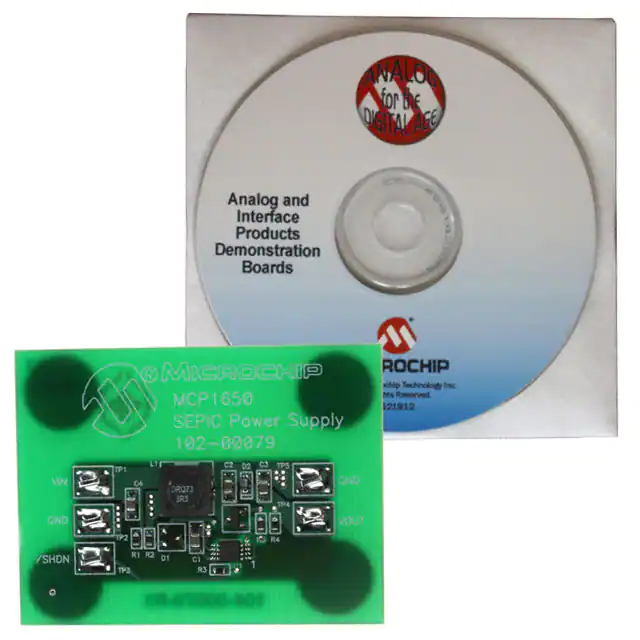

MCP1650DM-DDSC1EVAL BOARD FOR MCP1650 |
1,531 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 160mA | 3V ~ 7V | Boost | 750kHz | Board(s) | MCP1650 |
|

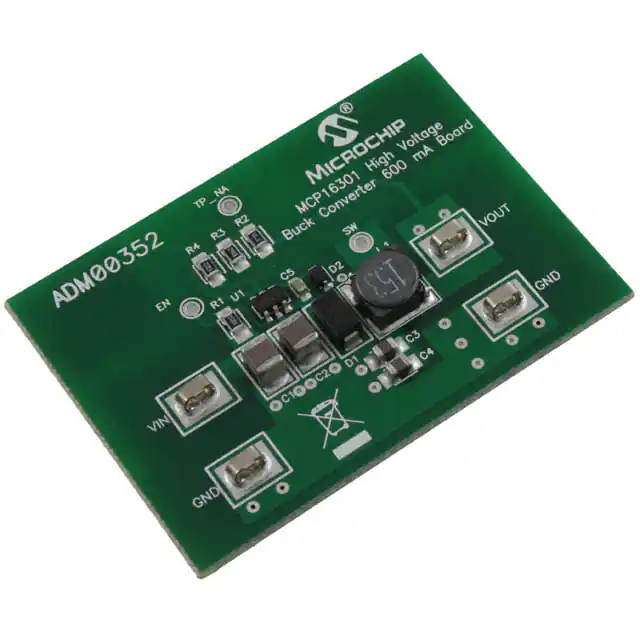

ADM00352EVAL BOARD FOR MCP16301 |
3,591 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 4V ~ 30V | Buck | 500kHz | Board(s) | MCP16301 |
|

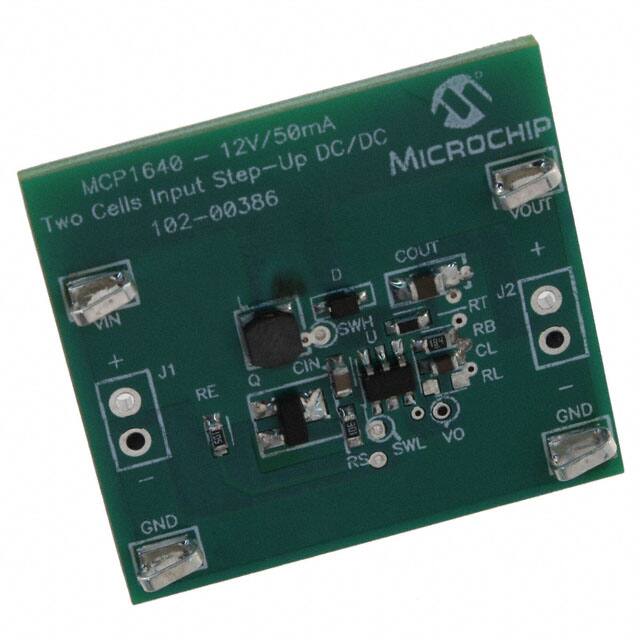

ARD00386EVAL BOARD FOR MCP1640 |
1,177 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 50mA | 2V ~ 3V | Boost | 500kHz | Board(s) | MCP1640 |
|

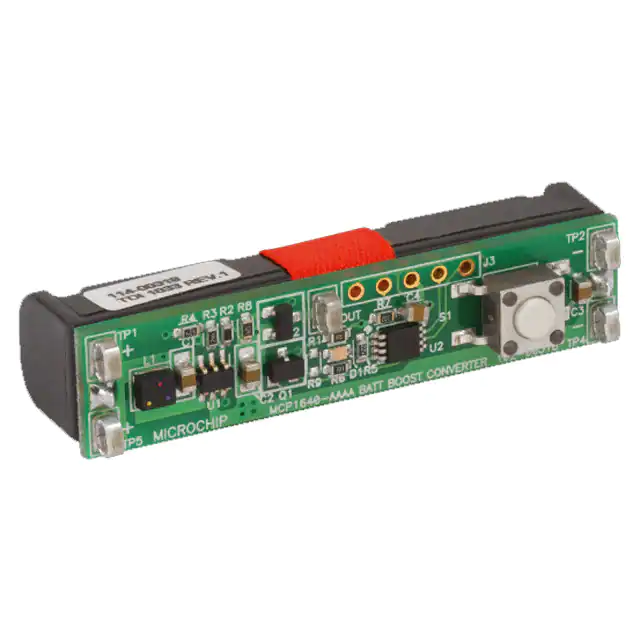

MCP1640RD-4ABCEVAL BOARD FOR MCP1640 |
2,817 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 130mA | 1.5V | Boost | 500kHz | Board(s) | MCP1640 |
|

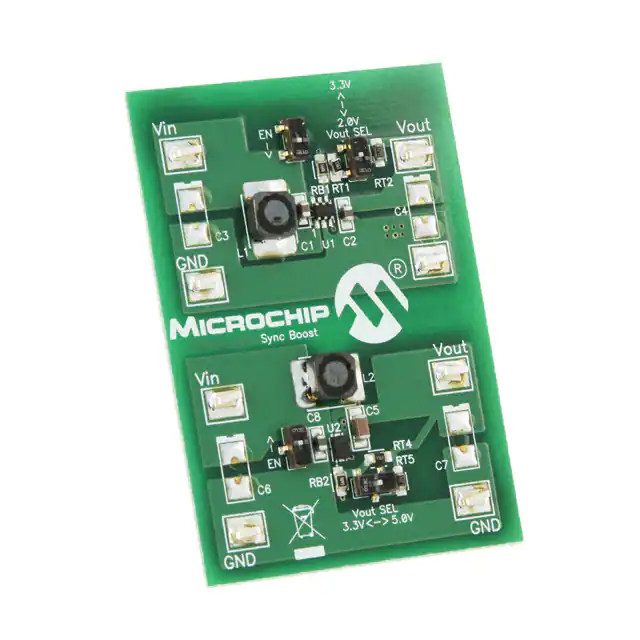

MCP1640EV-SBCEVAL BOARD FOR MCP1640 |
1,564 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 2V, 3.3V or 5V | 100mA, 350mA | 0.35V ~ 5.5V | Boost | 500kHz | Board(s) | MCP1640 |
|

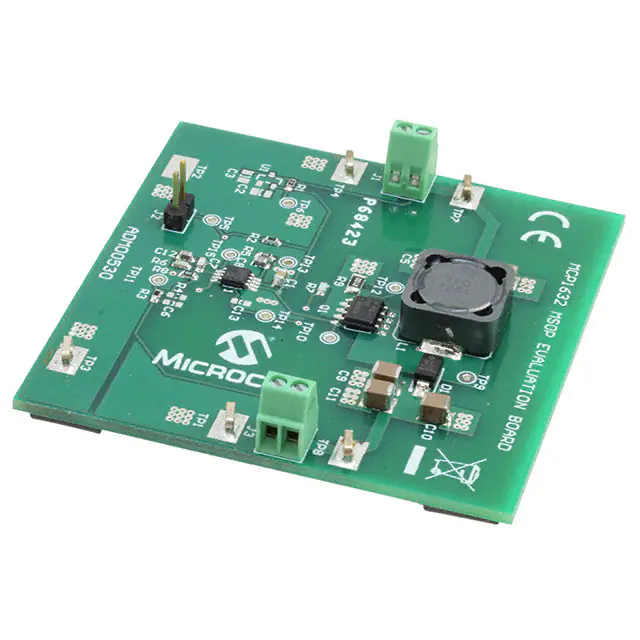

ADM00530EVAL BOARD FOR MCP1632 |
4,047 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 900mA | 3.6V ~ 5.5V | Boost | 300kHz | Board(s) | MCP1632 |
|

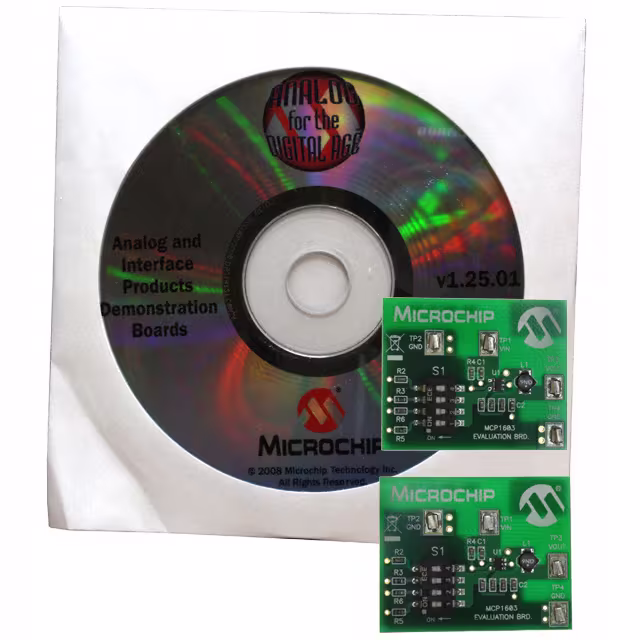

MCP1603EVEVAL BOARD FOR MCP1603 |
4,857 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.8V, 2.5V, or 3.3V | 500mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | MCP1603 |
