DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX15020EVKIT+EVAL BOARD FOR MAX15020 |
4,818 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 30V | 2A | 7.5V ~ 40V | Buck | - | Board(s) | MAX15020 |
|
MAX1709EVKITEVAL BOARD FOR MAX1709 |
2,488 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | - | Boost | 600kHz | Board(s) | MAX1709 |
|

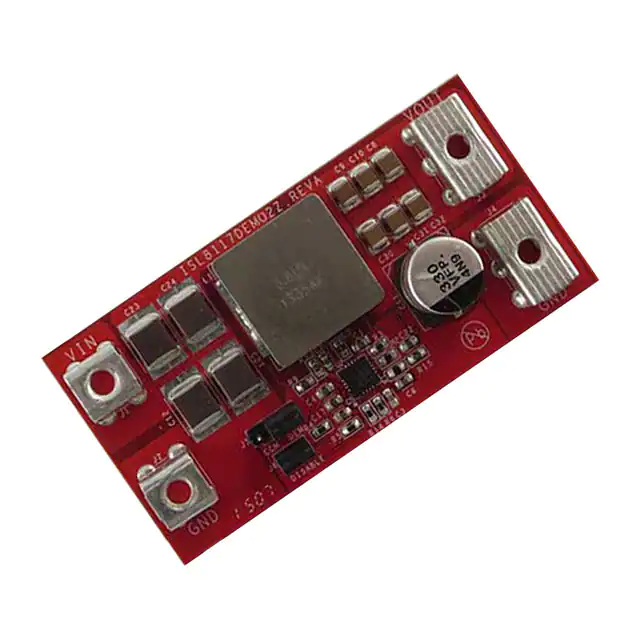

ISL8117DEMO2ZEVAL BOARD FOR ISL8117 |
1,743 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 60V | Buck | 200kHz | Board(s) | ISL8117 |
|
MAX16990EVKIT#EVAL BOARD FOR MAX16990 |
3,698 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 8V | 2A | 4.5V ~ 36V | Boost | 400kHz | Board(s) | MAX16990 |
|
ADP2108-3.3-EVALZEVAL BOARD FOR ADP2108 |
4,986 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2108 |
|
EV04B27AEVAL BOARD FOR MIC2128 UCS3205 |
4,467 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 100 W | 5V, 9V, 15V or 20V | 5A | 24V | Buck | - | Board(s) | MIC2128, UCS3205 |
|
SI3404FB5V3KITEVAL BOARD FOR SI3404 |
2,377 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 15 W | 5V | 2.5A | 37V ~ 57V | Flyback | 220kHz | Board(s) | Si3404 |
|
MAX22258EVKIT#EVAL BOARD FOR MAX22258 |
1,487 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | - | 24V | 200mA | 5V ~ 36V | - | - | Board(s) | MAX22258 |
|
MAX13256EVKIT#EVAL BOARD FOR MAX13256 |
4,263 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 6.8V ~ 34.8V | 300mA | 8V ~ 36V | Full-Bridge | 425kHz | Board(s) | MAX13256 |
|
DC1588AEVAL BOARD FOR LTM4611 |
3,301 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 15A | 1.5V ~ 5.5V | Buck | 500kHz | Board(s) | LTM4611 |
|
DC1392AEVAL BOARD FOR LTM4604A |
3,047 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 4A | 2.375V ~ 5.5V | Buck | 1.25MHz | Board(s) | LTM4604A |
|
DC2081A-BEVAL BOARD FOR LTM46301 |
4,330 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 36A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630-1 |
|
DC2367AEVAL BOARD FOR LTM4632 |
3,510 | - |
|
Datasheet | µModule® | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 3 Non-Isolated Outputs | - | - | 3A, 3A, 10mA | 3.6V ~ 15V | Buck | 1MHz | Board(s) | LTM4632 |
|
DC2569AEVAL BOARD FOR LTM4661 |
1,219 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1A | 1.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTM4661 |
|
DC2753AEVAL BOARD FOR LTM8074 |
4,309 | - |
|
Datasheet | µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 3.4V ~ 40V | Buck | 2MHz | Board(s) | LTM8074 |
|
DC2777AEVAL BOARD FOR LTM8078 |
4,889 | - |
|
Datasheet | Silent Switcher®, µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 1.4A, 1.4A | 7V ~ 40V | Buck | 1.6MHz | Board(s) | LTM8078 |
|

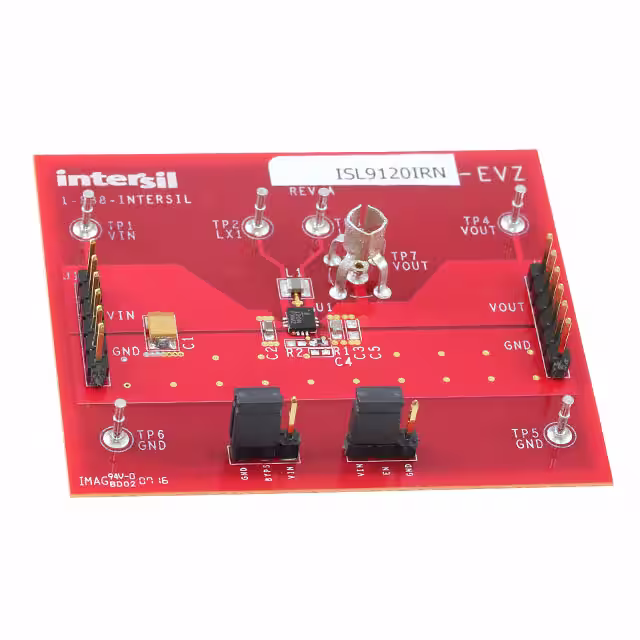

ISL9120IRN-EVZEVAL BOARD FOR ISL9120IR |
3,560 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | ISL9120IR |
|

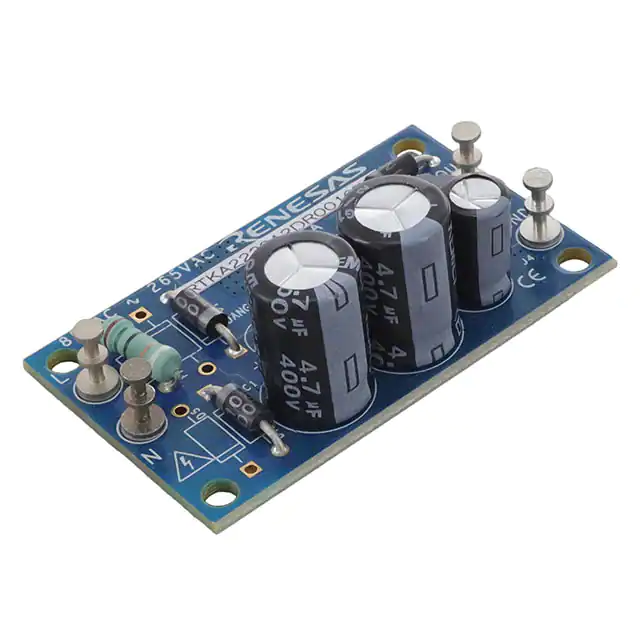

RTKA223012DR0010BUEVAL BOARD FOR RAA223012 |
2,269 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 750 mW | 5V | 150mA | 85 ~ 265 VAC | Buck | - | Board(s) | RAA223012 |
|

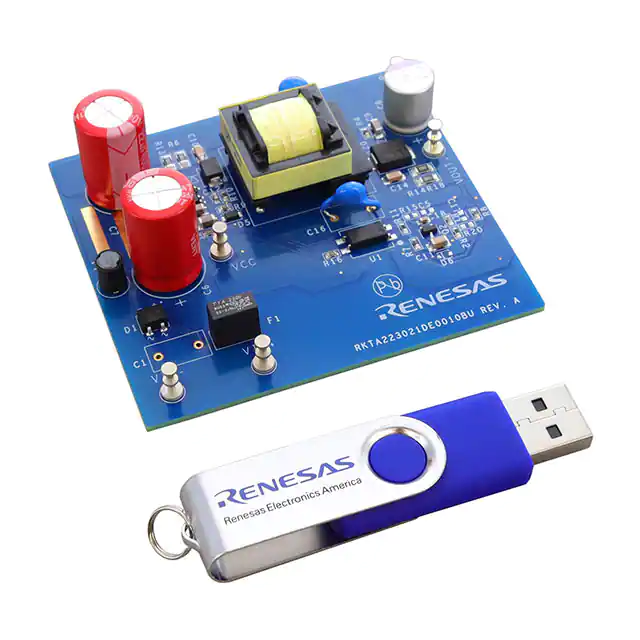

RTKA223021DE0010BUEVAL BOARD FOR RAA223021 |
3,667 | - |
|
Datasheet | - | Bulk | Active | AC/DC Converter | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | RAA223021 |
|
|
RTKA223011DR0040BUEVAL BOARD FOR RAA223011 |
2,530 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 24V | 200mA | 85 ~ 265 VAC | Buck | 30kHz | Board(s) | RAA223011 |
