DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDK-313EVAL BOARD FOR LNK6766 |
1,804 | - |
|
Datasheet | LinkSwitch™-HP | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 30 W | 12V | 2.5A | 90 ~ 265 VAC | Flyback | 132kHz | Board(s) | LNK6766 |
|
|
RDK-723EVAL BOARD FOR LNK3209D |
2,417 | - |
|
Datasheet | LinkSwitch™-TN2 | Box | Active | AC/DC Converter | 1 Non-Isolated Output | 9.6 W | 12V | 800mA | 85 ~ 265 VAC | Buck | 66kHz | Board(s) | LNK3209D |
|
ADM00770EVAL BOARD FOR MIC2128 |
2,909 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 75V | Buck | 300kHz | Board(s) | MIC2128 |
|
NCP1034BCK5VGEVBEVAL BOARD FOR NCP1034 |
3,051 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 38.4V ~ 57.6V | Buck | 500kHz | Board(s) | NCP1034 |
|

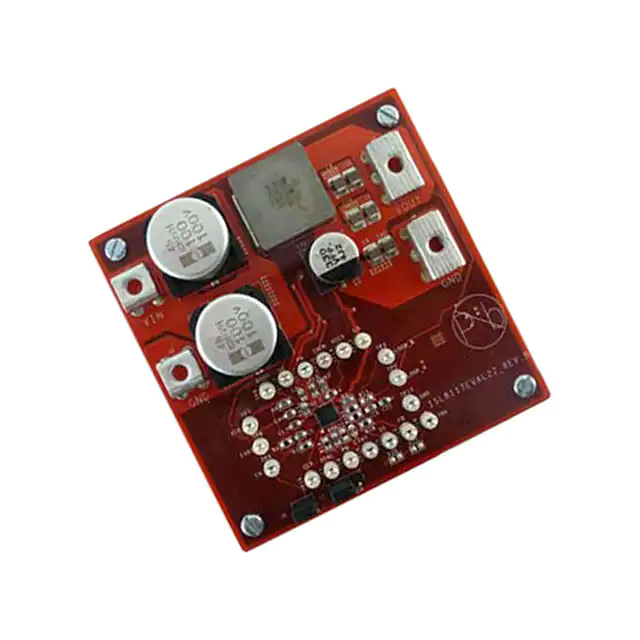

ISL8117EVAL2ZEVAL BOARD FOR ISL8117 |
3,007 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 60V | Buck | 300kHz | Board(s) | ISL8117 |
|
DC1708AEVAL BOARD FOR LTC3634 |
4,136 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 2 Non-Isolated Outputs | - | - | 3A | 3.6V ~ 15V | Buck | 1MHz | Board(s) | LTC3634 |
|
DC1958AEVAL BOARD FOR LTC3633A2 |
2,952 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 3.6V ~ 20V | Buck | - | Board(s) | LTC3633A-2 |
|
DC1768AEVAL BOARD FOR LTC3626 |
1,352 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 6V | 2.5A | 3.6V ~ 20V | Buck | 2MHz | Board(s) | LTC3626 |
|
DC2329AEVAL BOARD FOR LTC7124 |
4,907 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 3.5A, 3.5A | 3.1V ~ 17V | Buck | 1MHz | Board(s) | LTC7124 |
|
DC2836AEVAL BOARD FOR LT7182S |
3,478 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 9A, 9A | 4V ~ 20V | Buck | 1MHz | Board(s) | LT7182S |
|
178032401EVAL BOARD FOR WPMDH1302401 |
4,883 | - |
|
Datasheet | MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V ~ 24V | 3A | 6V ~ 42V | Buck | - | Board(s) | WPMDH1302401 |
|
BM2P151X-EVK-001EVAL BOARD FOR BM2P151X |
1,669 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 12 W | 15V | 800mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P151X |
|
|
EVAL5BR4780BZ450MA1TOBO1EVAL BOARD FOR ICE5BR4780BZ |
4,910 | - |
|
Datasheet | CoolSET™ | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 6.75 W | 15V | 450mA | 85 ~ 264 VAC | Buck | - | Board(s) | ICE5BR4780BZ |
|
DC2745AEVAL BOARD FOR LTC3309A |
2,394 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3309A |
|
DC187A-AEVAL BOARD FOR LT1374 |
2,544 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | 5.5V ~ 25V | Buck | 500kHz | Board(s) | LT1374 |
|

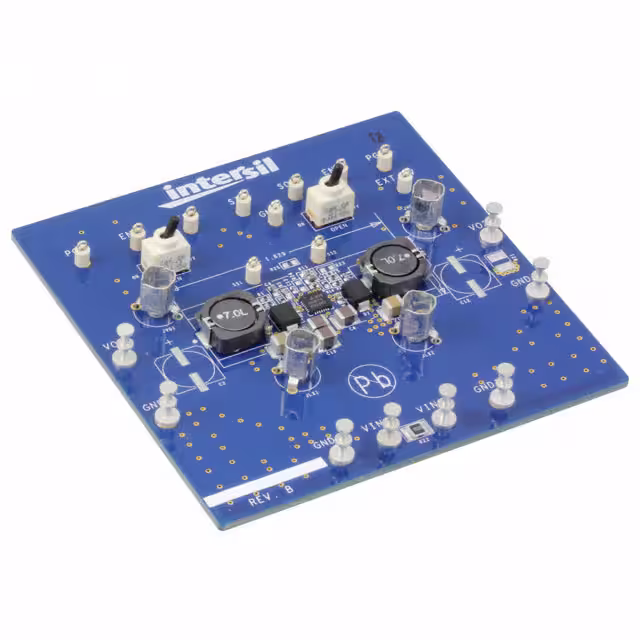

ISL85033DUALEVAL1ZEVAL BOARD FOR ISL85033 |
4,992 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 4.5V ~ 28V | Buck | 300kHz ~ 2MHz | Board(s) | ISL85033 |
|
DC992AEVAL BOARD FOR LTC3549 |
4,330 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 1.8V | 250mA | 1.6V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3549 |
|

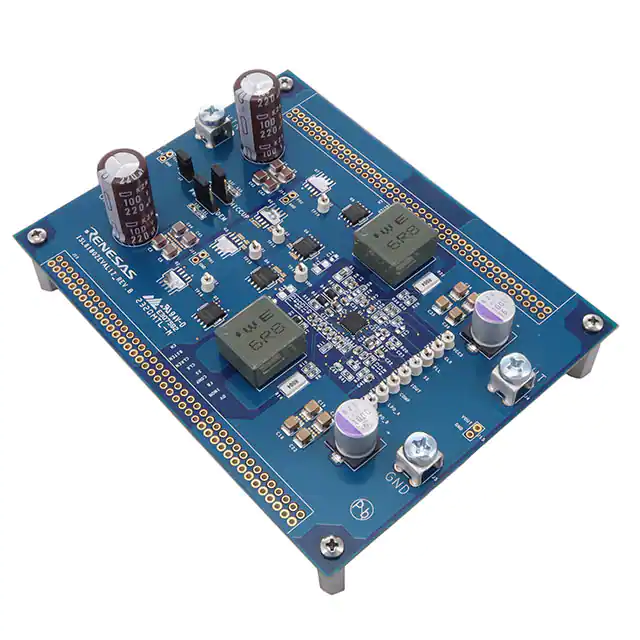

ISL81802EVAL1ZEVAL BOARD FOR ISL81802 |
1,671 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 80V | Buck | 200kHz | Board(s) | ISL81802 |
|
DC1607AEVAL BOARD FOR LTC3675 |
2,368 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down with LDO | 7 Non-Isolated Outputs | - | 1.2V, 1.2V, 1.6V, 1.8V, 2.5V, 3.3V, 5V | 1A, 1A, 1A, 1A, 500mA, 500mA, 25mA | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3675 |
|
BD7F100HFN-EVK-003EVAL BOARD FOR BD7F100 |
4,322 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±15V | 165mA, 165mA | 24V | Flyback | 400kHz | Board(s) | BD7F100 |
