DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2014AEVAL BOARD FOR LT8302 |
2,837 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2.2A | 10V ~ 30V | Flyback | 345kHz | Board(s) | LT8302 |
|
MAX20076EVKIT#EVAL BOARD FOR MAX20076 |
1,242 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 3.5V ~ 36V | Buck | - | Board(s) | MAX20076 |
|
MAX20429EVKIT#EVAL BOARD FOR MAX20429 |
3,915 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | 30 W | 0.5V ~ 3.8V | 6A | 3V ~ 5.5V | Buck | - | Board(s) | MAX20429 |
|
ADM00799EVAL BOARD FOR MCP19215 |
2,849 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | - | - | - | Boost | - | Board(s) | MCP19215 |
|

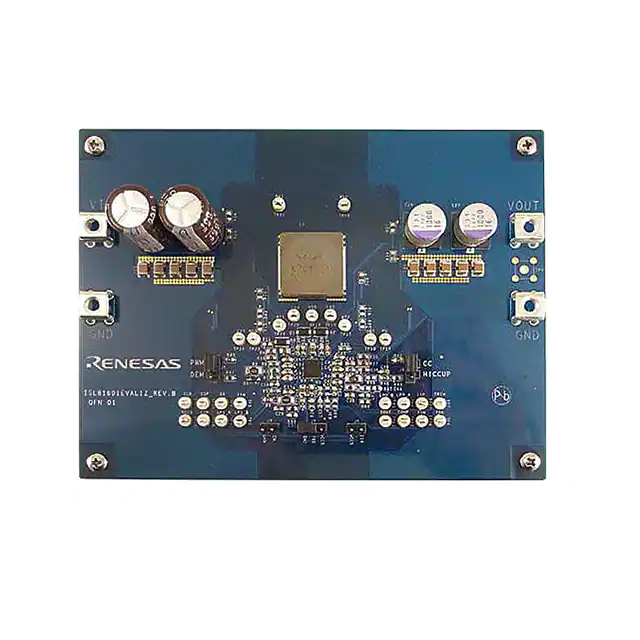

ISL81601EVAL1ZEVAL BOARD FOR ISL81601 |
1,502 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 10A | 9V ~ 60V | Buck-Boost | 200kHz | Board(s) | ISL81601 |
|
MAX25431EVKIT#EVAL BOARD FOR MAX25431 |
1,965 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 6V ~ 36V | Buck-Boost | 420kHz | Board(s) | MAX25431 |
|
DC1807A-AEVAL BOARD FOR LTC3869 |
4,886 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3869 |
|
EVAL-LT8333-BZEVAL BOARD FOR LT8333 |
4,316 | - |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 24V | 2A | 4.5V ~ 20V | Boost, SEPIC | 2MHz | Board(s) | LT8333 |
|
DC524AEVAL BOARD FOR LTC3704 |
2,687 | - |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5.2V | 2.5A | 5V ~ 15V | Inverting | 300kHz | Board(s) | LTC3704 |
|
|
ISL68200DEMO1ZEVAL BOARD FOR ISL68200 |
3,487 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 4.75V ~ 14.5V | Buck | 400kHz | Board(s) | ISL68200 |
|
|
DC2784B-AEVAL BOARD FOR LTM4700 |
4,374 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4700 |
|
DC1731A-AEVAL BOARD FOR LTC3646 |
2,411 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 4V ~ 40V | Buck | 1.5MHz | Board(s) | LTC3646 |
|
DC2598AEVAL BOARD FOR LT8390A |
1,933 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 4A | 4V ~ 24V | Buck-Boost | 2MHz | Board(s) | LT8390A |
|

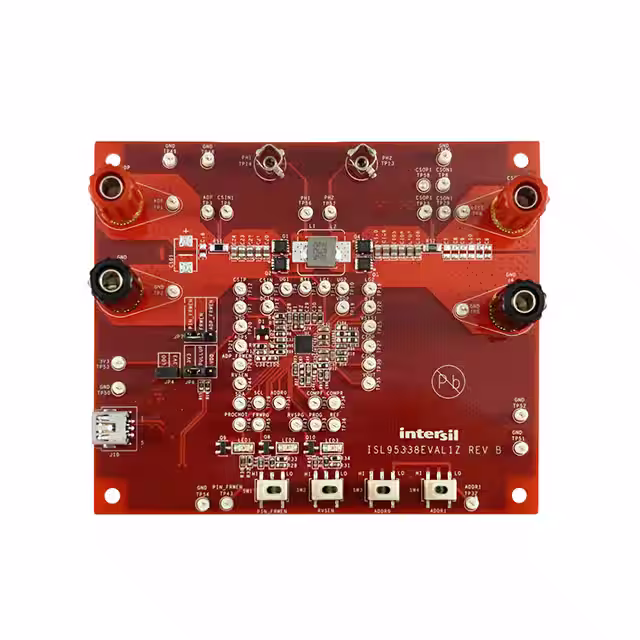

ISL95338EVAL1ZEVAL BOARD FOR ISL95338 |
2,921 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.4V ~ 20V | - | 3.8V ~ 24V | Buck-Boost | - | Board(s) | ISL95338 |
|
LM5033SD-EVALEVAL BOARD FOR LM5033 |
1,434 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 9V | 20A | 40V ~ 60V | Buck | 315kHz | Board(s) | LM5033 |
|
LM25119EVAL/NOPBEVAL BOARD FOR LM25119 |
4,372 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 16A | 6V ~ 36V | Buck | 230kHz | Board(s) | LM25119 |
|
LM5026EVAL/NOPBEVAL BOARD FOR LM5026 |
4,557 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 78V | Buck | 230kHz | Board(s) | LM5026 |
|
TPS40428EVM-594EVAL BOARD FOR TPS40428 |
4,668 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 20A, 20A | 7V ~ 14V | Buck | 500kHz | Board(s) | TPS40428 |
|
LM34936EVMEVAL BOARD FOR LM34936 |
4,669 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 6A | 6V ~ 24V | Buck-Boost | 300kHz | Board(s) | LM34936 |
|
LM5032EVAL/NOPBEVAL BOARD FOR LM5032 |
2,948 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 4A | 18V ~ 45V | Boost | - | Board(s) | LM5032 |
