DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC3204AEVAL BOARD FOR LTC3314A |
4,816 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 4A, 4A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3314A |
|

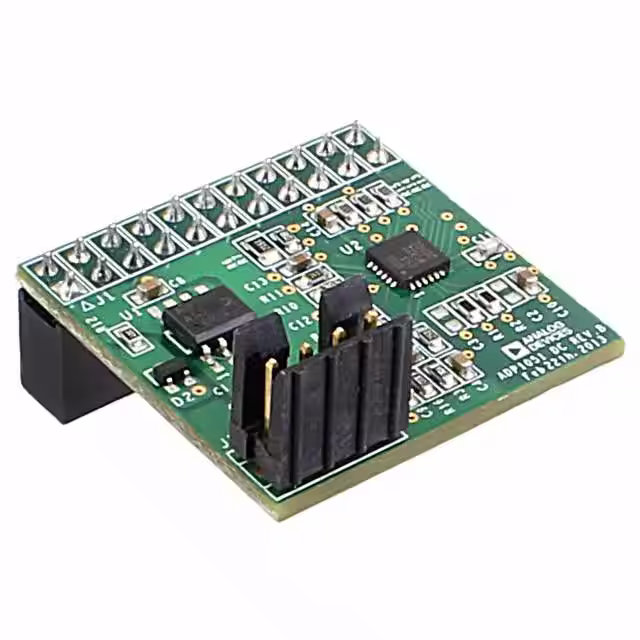

ADP1051DC1-EVALZEVAL BOARD FOR ADP1051 |
4,364 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 12V | 20A | 36V ~ 75V | Buck | 120kHz | Board(s) | ADP1051 |
|

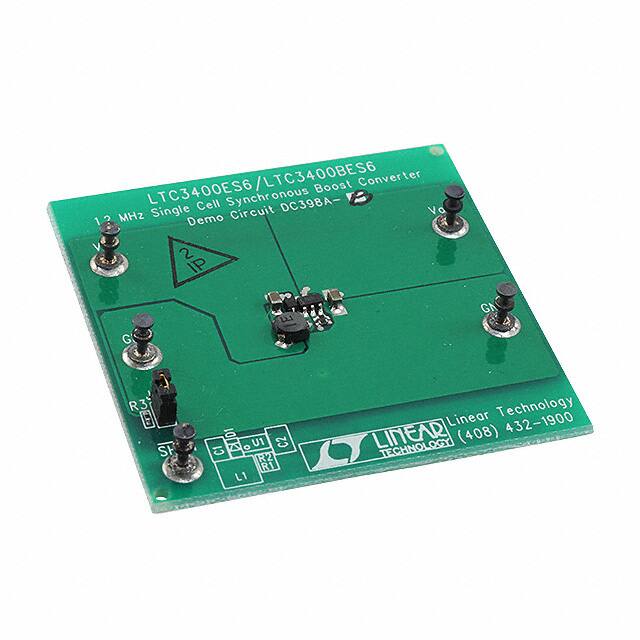

DC398A-BEVAL BOARD FOR LTC3400B |
4,546 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 90mA | 1V ~ 3V | Boost | 1.2MHz | Board(s) | LTC3400B |
|

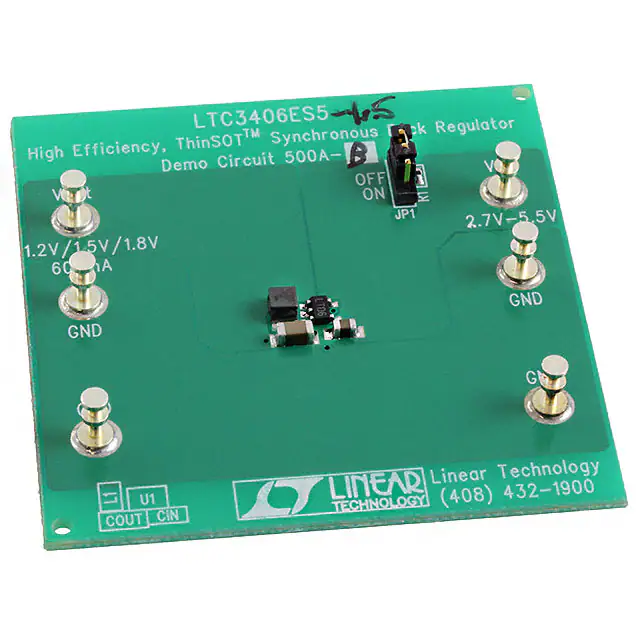

DC500A-BEVAL BOARD FOR LTC3406 |
3,283 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3406 |
|
DC623AEVAL BOARD FOR LTC3801 |
1,778 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1A | 2.5V ~ 9.8V | Buck | 550kHz | Board(s) | LTC3801 |
|

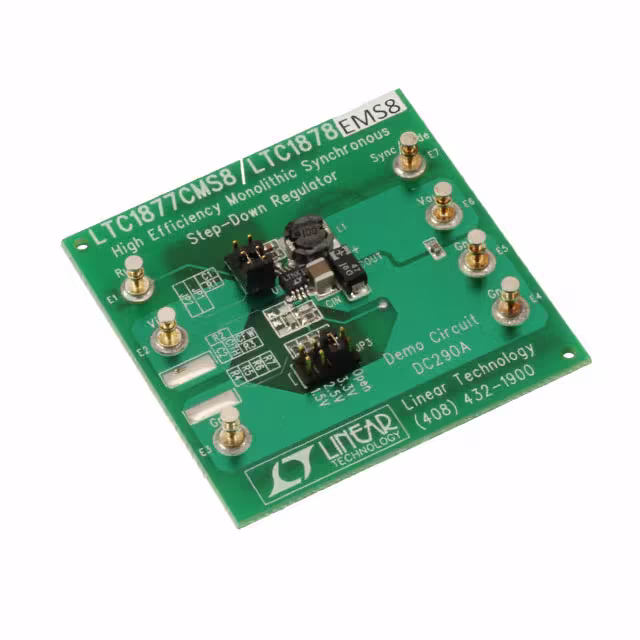

DC290A-BEVAL BOARD FOR LTC1878 |
3,867 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V, 2.5V or 3.3V | 600mA | 2.65V ~ 6V | Buck | 550kHz | Board(s) | LTC1878 |
|

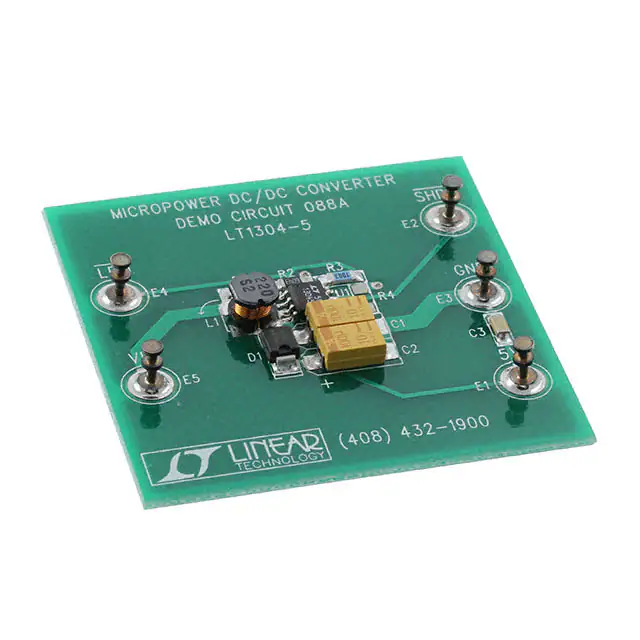

DC088AEVAL BOARD FOR LT13045 |
2,507 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.05V | 500mA | 1.65V ~ 5.5V | Boost | - | Board(s) | LT1304-5 |
|

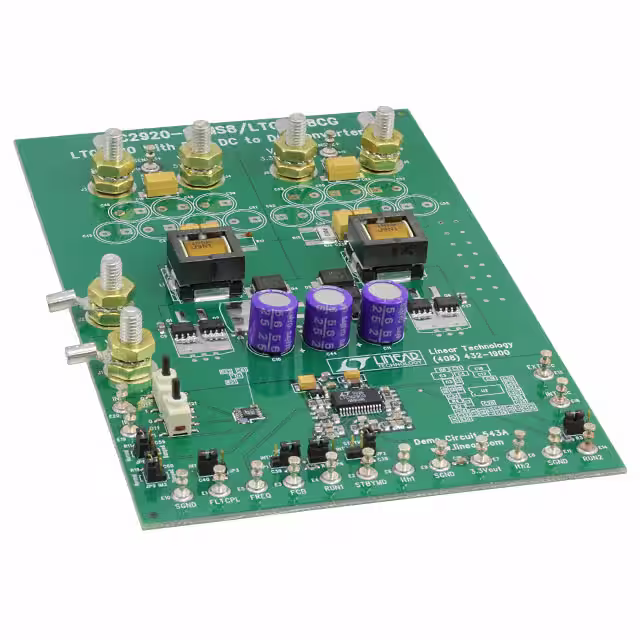

DC543AEVAL BOARD FOR LTC1628 LTC29202 |
3,175 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 12A, 12A | 7V ~ 24V | Buck | - | Board(s) | LTC1628, LTC2920-2 |
|
|
DC092A-AEVAL BOARD FOR LTC15504.1 |
3,356 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -4.1V | - | 4.5V ~ 6.5V | Inverting | 900kHz | Board(s) | LTC1550-4.1 |
|

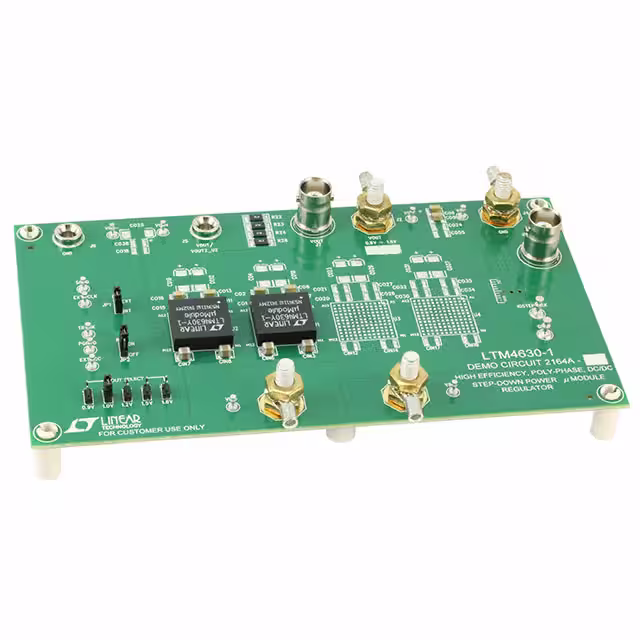

DC2164A-AEVAL BOARD FOR LTM46301 |
4,218 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 70A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630-1 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
