DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2906AEVAL BOARD FOR LT8302 |
1,194 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 3 Isolated Outputs | - | ±15V, 5V | 400mA, 100mA, 100mA | 4.5V ~ 28V | Flyback | - | Board(s) | LT8302 |
|

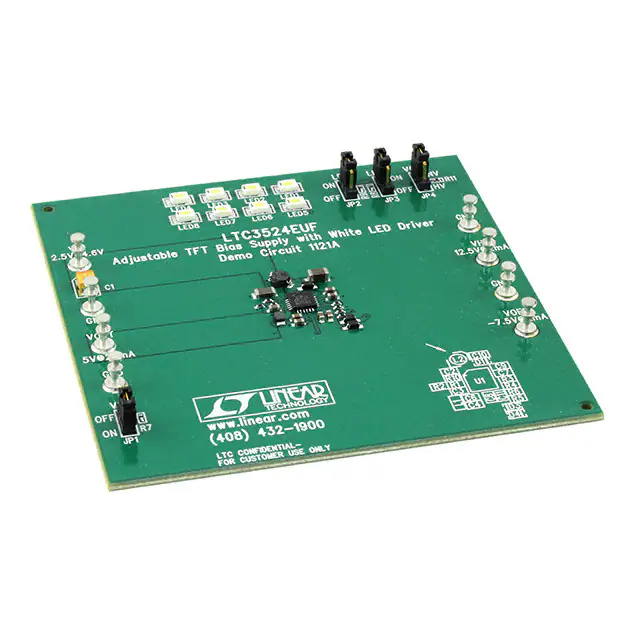

DC1121AEVAL BOARD FOR LTC3524 |
4,223 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | - | 5V, 12.5V, -7.5V | 25mA, 2mA, 2mA | 2.5V ~ 4.6V | Boost | 1.5MHz | Board(s) | LTC3524 |
|

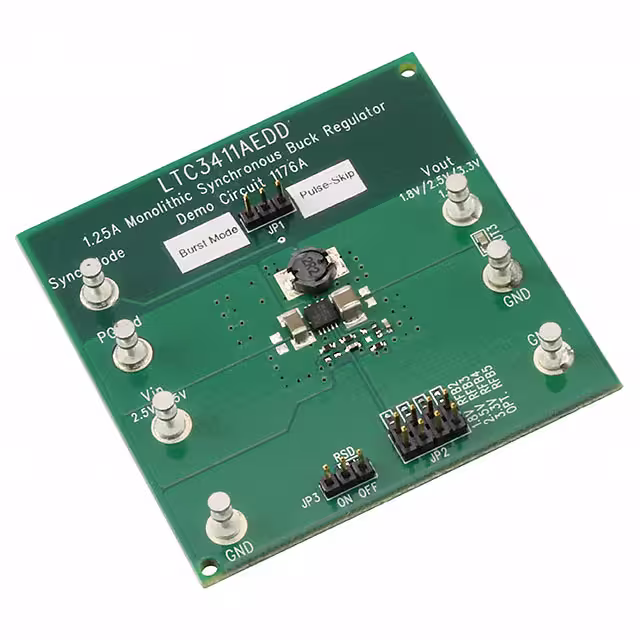

DC1176AEVAL BOARD FOR LTC3411A |
4,865 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V or 3.3V | 1.25A | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | LTC3411A |
|

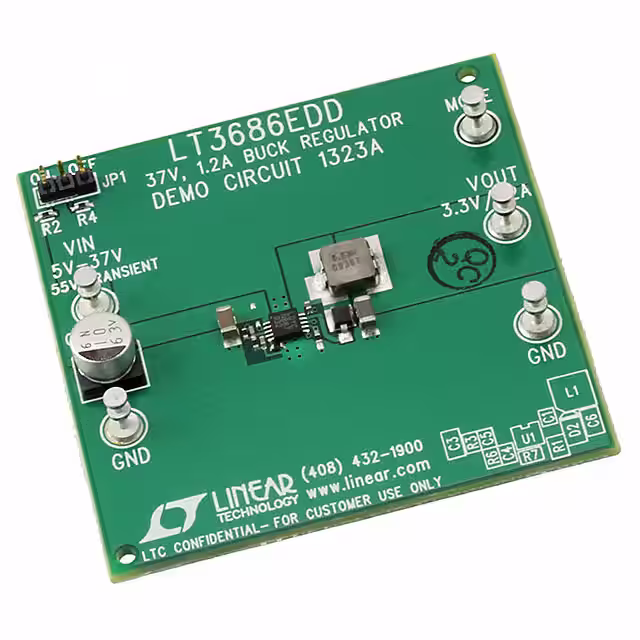

DC1323AEVAL BOARD FOR LT3686 |
2,659 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 5V ~ 37V | Buck | 1MHz | Board(s) | LT3686 |
|
DC1541A-BEVAL BOARD FOR LT36941 |
1,700 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.8V, 2.5V, 3.3V | 1.7A, 450mA, 450mA | 4.5V ~ 36V | Buck | 800kHz | Board(s) | LT3694-1 |
|

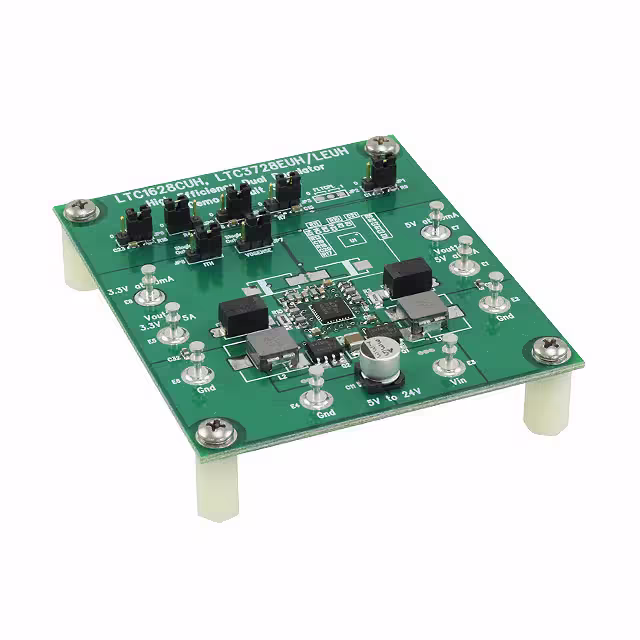

DC392A-BEVAL BOARD FOR LTC3728 |
3,523 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 4A | 5V ~ 24V | Buck | - | Board(s) | LTC3728 |
|

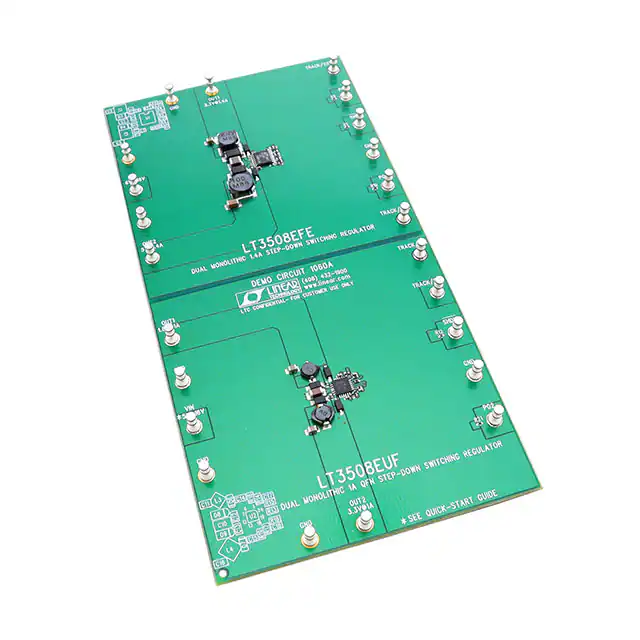

DC1060AEVAL BOARD LT3508EFE LT3508EUF |
3,517 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 4 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | 1.4A, 1A | 5V ~ 16V, 6V ~ 36V | Buck | 700kHz, 1.6MHz | Board(s) | LT3508EFE, LT3508EUF |
|

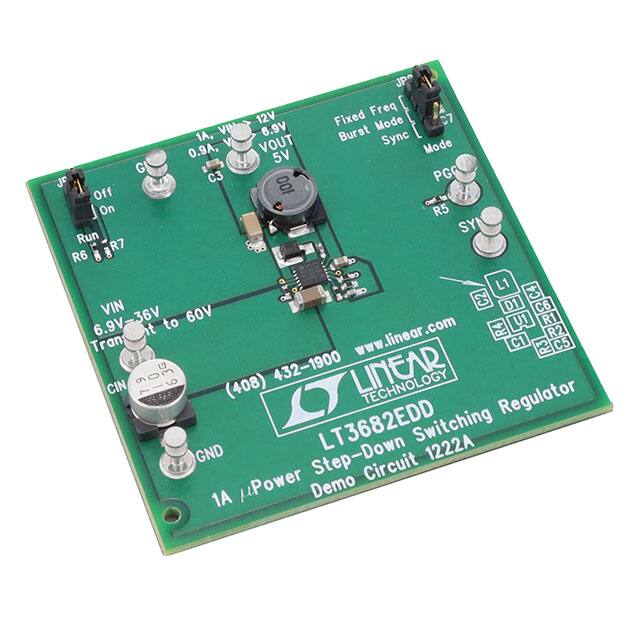

DC1222AEVAL BOARD FOR LT3682 |
2,015 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.9V ~ 36V | Buck | 800kHz | Board(s) | LT3682 |
|

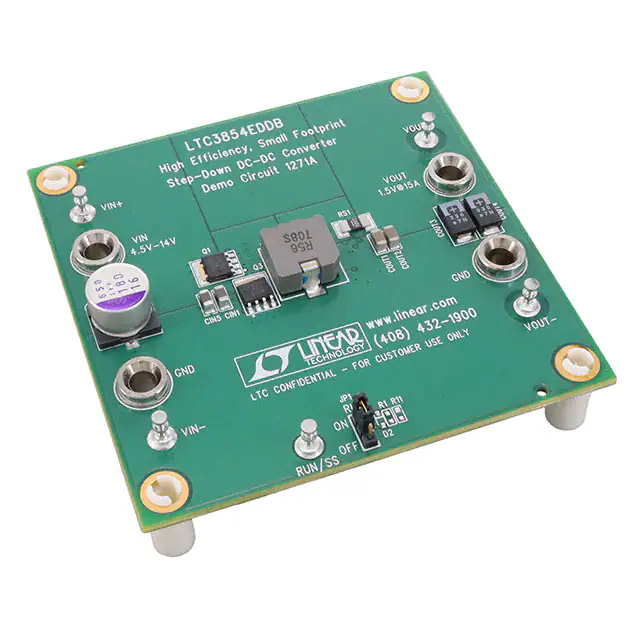

DC1271AEVAL BOARD FOR LTC3854 |
2,525 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3854 |
|

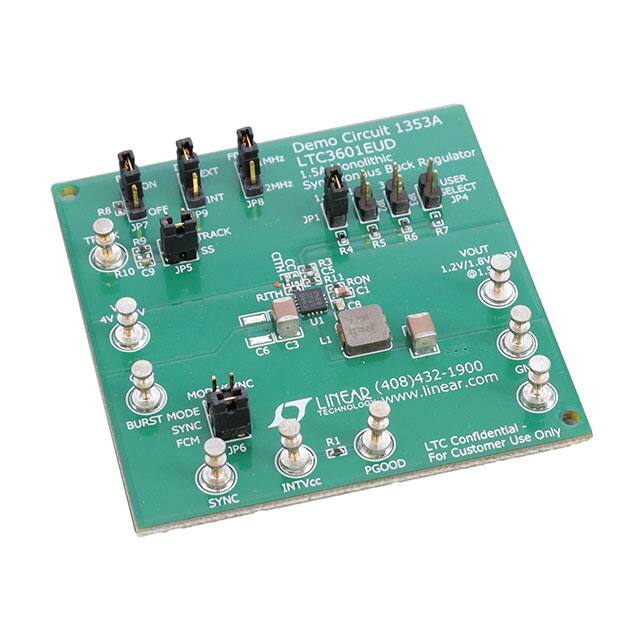

DC1353AEVAL BOARD FOR LTC3601 |
1,580 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.5A | 4V ~ 15V | Buck | 4MHz | Board(s) | LTC3601 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
