DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-ILL069V1EVAL BOARD FOR HVLED001 |
3,627 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 48V | 730mA | 90 ~ 305 VAC | Flyback | - | Board(s) | HVLED001 |
|

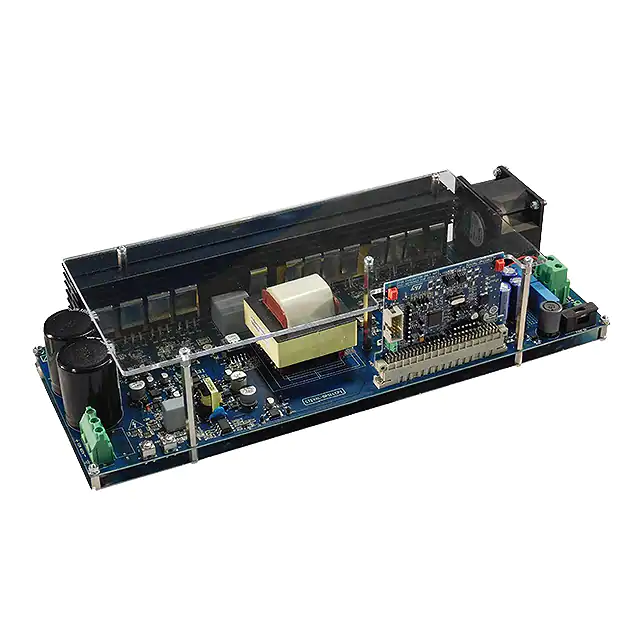

STEVAL-DPSLLCK1EVAL BOARD FOR VIPER27 |
4,642 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 3 kW | 48V | 62.5A | 375V ~ 425V | - | - | Board(s) | VIPer27 |
|
STEVAL-L3751V12EVAL BOARD FOR L3751 |
2,838 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 15A, 15A | 6V ~ 75V | Buck | 230kHz | Board(s) | L3751 |
|
|
EVL400W-80PLEVAL BOARD L4985A L6699 SRK2001 |
3,840 | - |
|
Datasheet | - | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 400 W | 12V | 33A | 90 ~ 264 VAC | Half-Bridge | - | Board(s) | L4985A, L6699, SRK2001 |
|

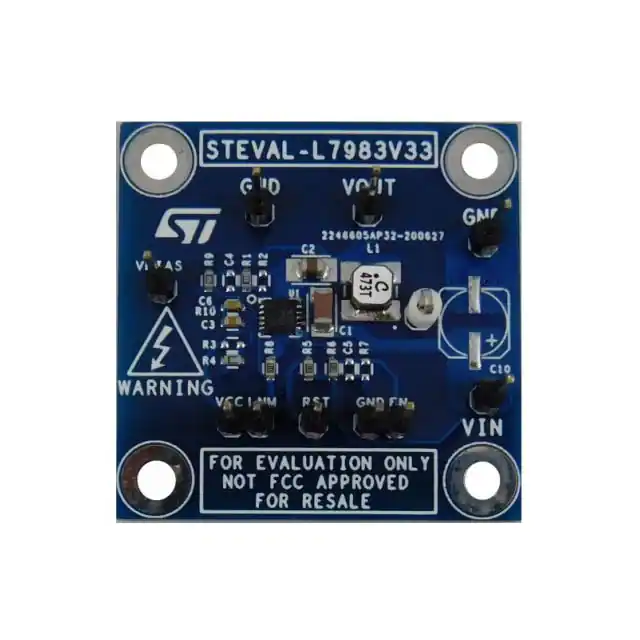

STEVAL-L7983V33EVAL BOARD FOR L7983PU33R |
3,730 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.5V ~ 60V | Buck | 1MHz | Board(s) | L7983PU33R |
|

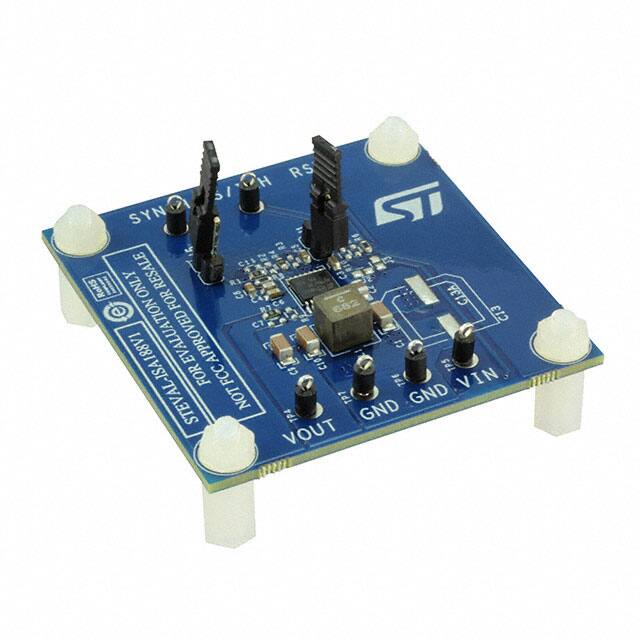

STEVAL-ISA188V1EVAL BOARD FOR A6986F3V3 |
1,930 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 38V | Buck | 500kHz | Board(s) | A6986F3V3 |
|

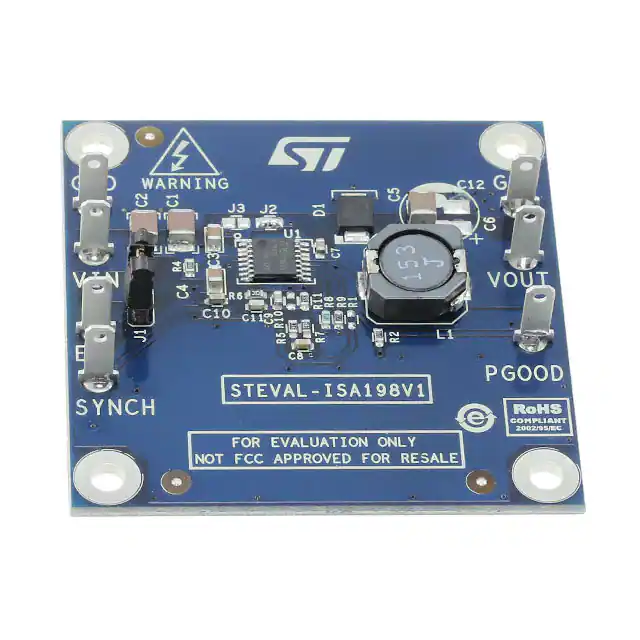

STEVAL-ISA198V1EVAL BOARD FOR L7987L |
1,099 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 4.5V ~ 60V | Buck | 500kHz | Board(s) | L7987L |
|

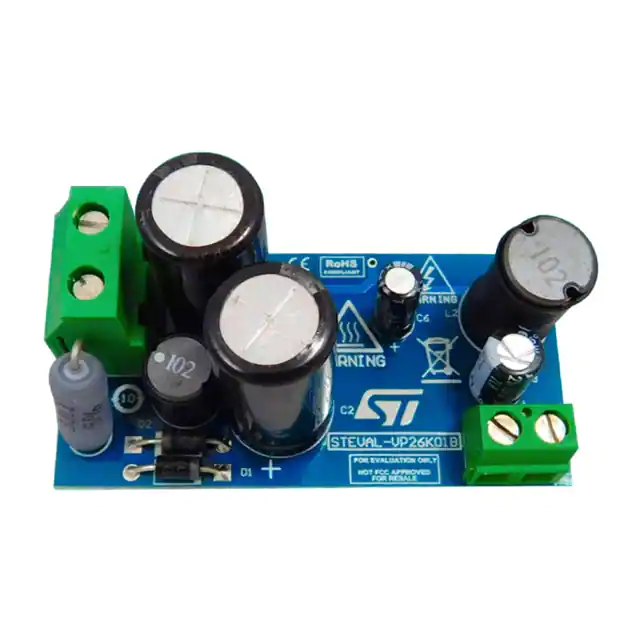

STEVAL-VP26K01BEVAL BOARD FOR VIPER26K |
1,609 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 1.5 W | 15V | 100mA | 90 ~ 600 VAC, 60V ~ 870V | Buck | 60kHz | Board(s) | VIPer26K |
|

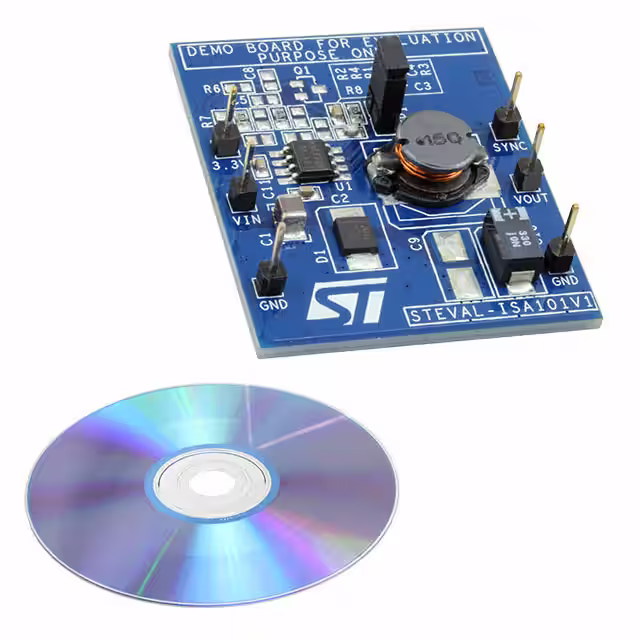

STEVAL-ISA101V1EVAL BOARD FOR L5973D |
4,594 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.235V ~ 36V | 2A | 4V ~ 36V | Buck | 250kHz | Board(s) | L5973D |
|

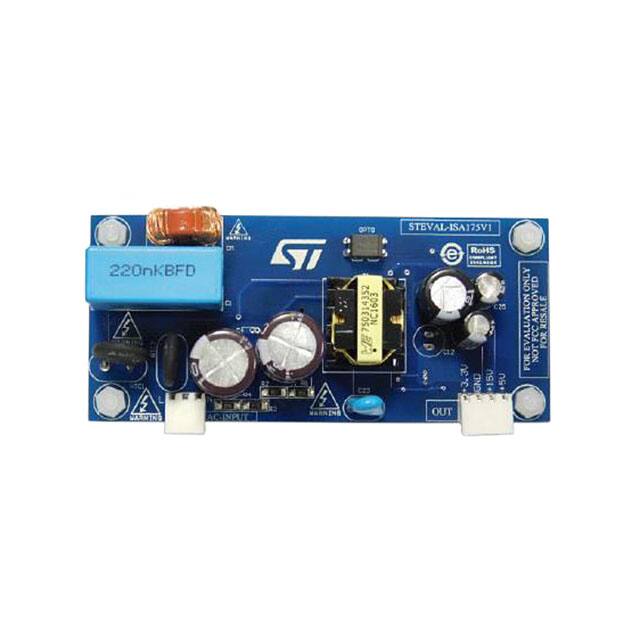

STEVAL-ISA175V1EVAL BOARD FOR VIPER26 |
2,319 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 3 Isolated Outputs | - | 3.3V, 5V, 15V | 550mA, 200mA, 100mA | 90 ~ 440 VAC | Flyback | 115kHz | Board(s) | VIPer26 |
