DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

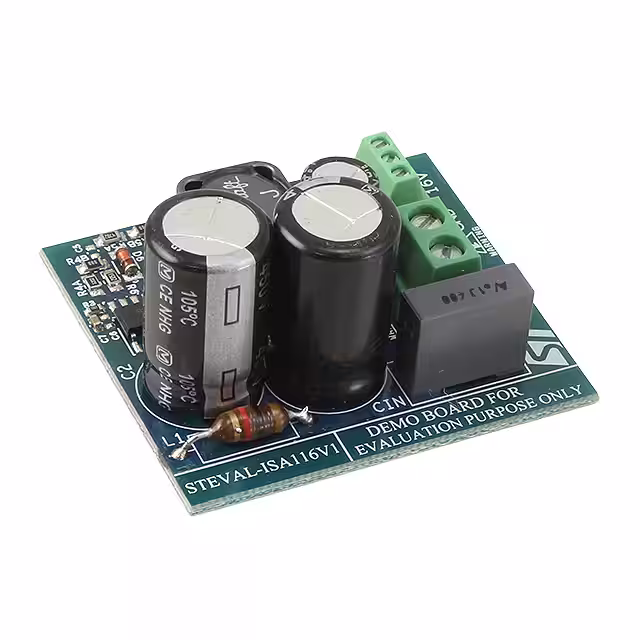

STEVAL-ISA116V1EVAL BOARD FOR VIPER26 |
4,601 | - |
|
Datasheet | VIPer™ plus | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | 5 W | 5V, 16V | 300mA | 80 ~ 280 VAC | Buck | 60kHz | Board(s) | VIPer26 |
|

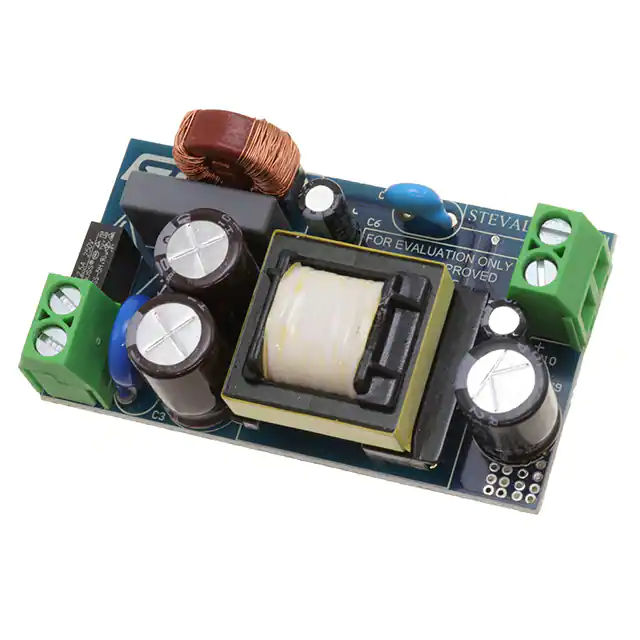

STEVAL-ISA171V1EVAL BOARD FOR VIPER35HD |
4,368 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | - | 12V | 1.25A | 90 ~ 264 VAC | Resonant | 225kHz | Board(s) | VIPER35HD |
|

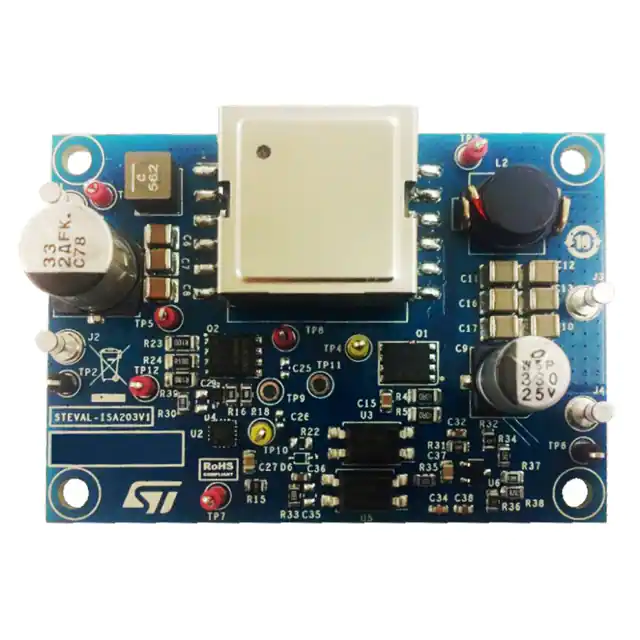

STEVAL-ISA203V1EVAL BOARD FOR PM8804 SRK1000 |
2,723 | - |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | 60 W | 12V | 5A | 42V ~ 56V | Flyback | 200kHz | Board(s) | PM8804, SRK1000 |
|
STEVAL-VP318L2FEVAL BOARD FOR VIPer318L |
1,091 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 18 W | 15V | 1.2A | 90 ~ 265VAC | Flyback | - | Board(s) | VIPer318L |
|

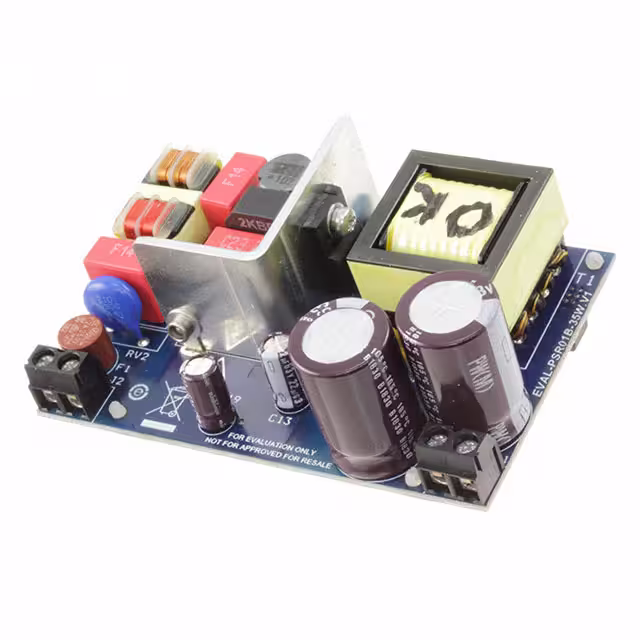

EVAL-PSR01B-35WEVAL BOARD HVLED001B STF10LN80K5 |
4,873 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 35 W | 48V | 730mA | 90 ~ 265 VAC | Flyback | - | Board(s) | HVLED001B, STF10LN80K5 |
|
EVLHV101SSR50WEVAL BOARD FOR HVLED101 |
1,943 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Secondary Side | 1 Isolated Output | - | 60V | 833mA | 90 ~ 265 VAC | Flyback | - | Board(s) | HVLED101 |
|
|
EVLHV101PSR50WEVAL BOARD FOR HVLED101 |
1,661 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | - | 60V | 833mA | 90 ~ 265 VAC | Flyback | - | Board(s) | HVLED101 |
|

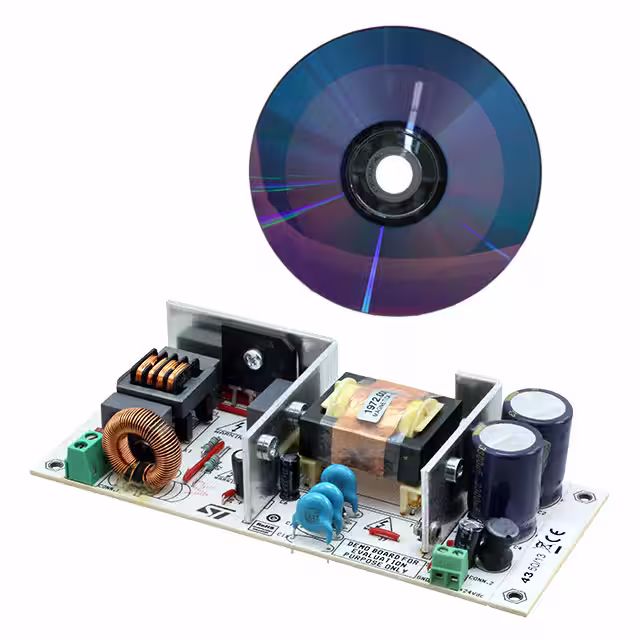

STEVAL-ISA142V1EVAL BOARD FOR L6564 |
2,014 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 50 W | 24V | 2.1A | 90 ~ 265 VAC | Flyback | 44kHz | Board(s) | L6564 |
|

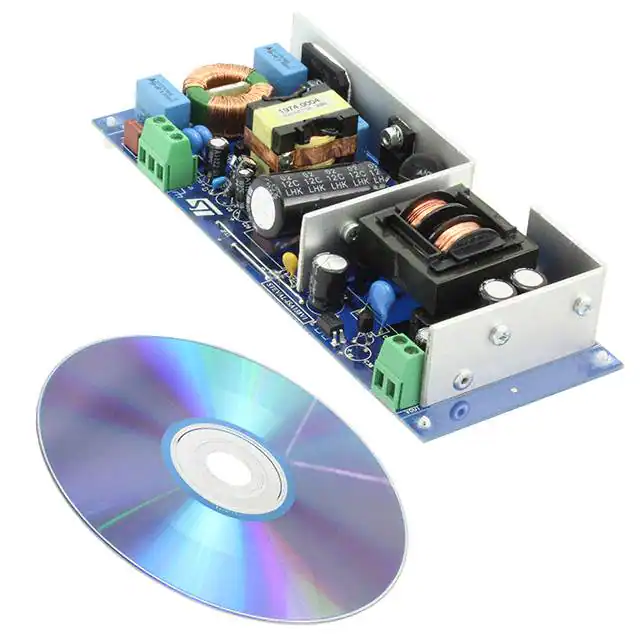

STEVAL-ISA138V1EVAL BOARD FOR L6563H L6699 |
3,345 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | 90 W | 19V | 4.75A | 90 ~ 264 VAC | Flyback | - | Board(s) | L6563H, L6699 |
|

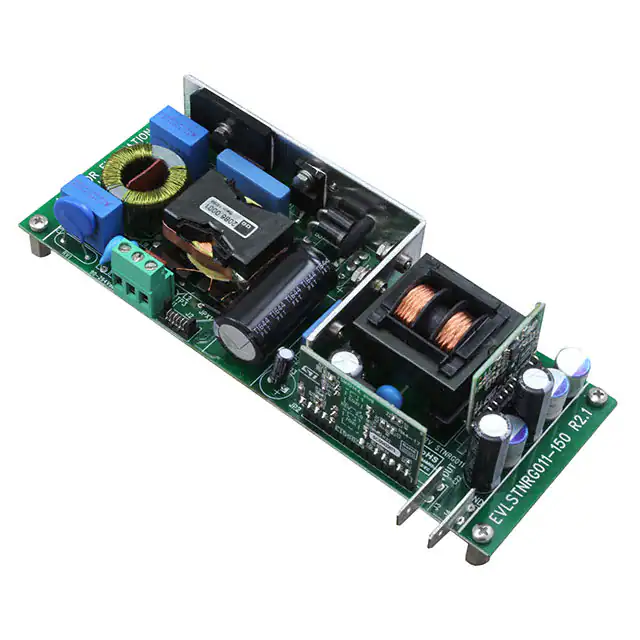

EVLSTNRG011-150EVAL BOARD FOR STNRG011 |
2,248 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 150 W | 12V | - | 90 ~ 264 VAC | Resonant | - | Board(s) | STNRG011 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
