DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX17644C5EVKIT#EVAL BOARD FOR MAX17644C |
4,123 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 1.847 W | 5V | 2.7A | 6.5V ~ 36V | Buck | 500kHz | Board(s) | MAX17644C |
|
MAX17634AEVKIT#EVAL BOARD FOR MAX17634A |
4,582 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4.25A | 4.5V ~ 36V | Buck | 400kHz | Board(s) | MAX17634A |
|
MAX17672CEVKIT#EVAL BOARD FOR MAX17672 |
2,500 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 150mA | 6.5V ~ 60V | Buck | 600kHz | Board(s) | MAX17672 |
|
|
MAXM17724EVKIT#EVAL BOARD FOR MAXM17724 |
1,758 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | MAXM17724 |
|
|
MAX17521EVKITE#EVAL BOARD FOR MAX17521 |
4,288 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 55.2V | 1A | 4.5V ~ 60V | Buck | 300kHz | Board(s) | MAX17521 |
|

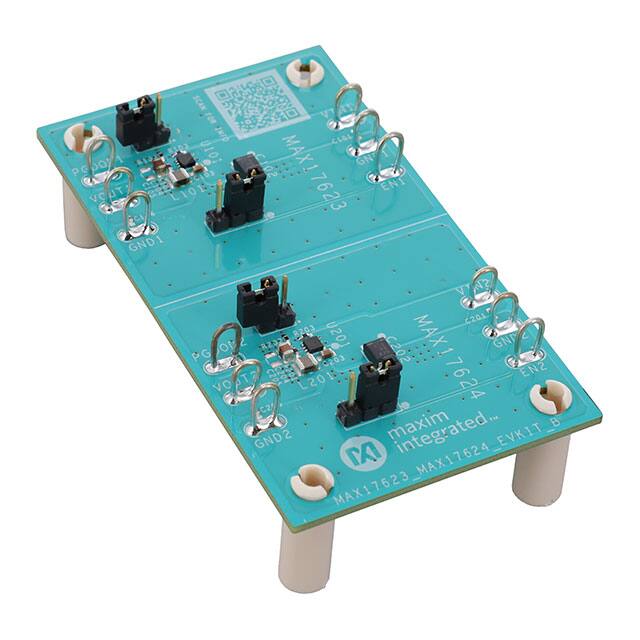

MAX17623EVKIT#EVAL BOARD FOR MAX17623 |
2,345 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 1A | 2.9V ~ 5.5V | Buck | 2MHz | Board(s) | MAX17623 |
|

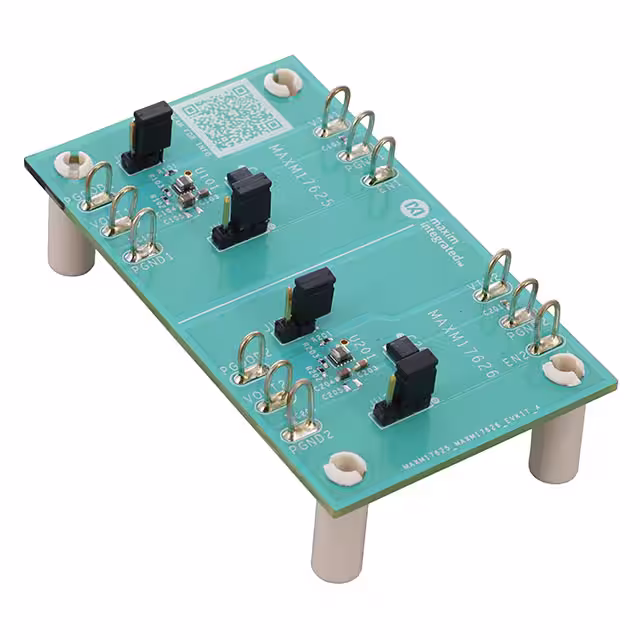

MAXM17626EVKIT#EVAL BOARD FOR MAXM17626 |
3,169 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 3.6V ~ 5.5V | Buck | 4MHz | Board(s) | MAXM17626 |
|
|
MAX17690EVKITG#EVAL BOARD FOR MAX17690 |
1,980 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | 5 W | 5V | 1A | 4.5V ~ 5.5V | Flyback | 180kHz | Board(s) | MAX17690 |
|
|
MAX17576EVKITA#EVAL BOARD FOR MAX17576 |
3,393 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4.5V ~ 60V | Buck | 350kHz | Board(s) | MAX17576 |
|
|
MAX17631BEVKIT#EVAL BOARD FOR MAX17631 |
2,024 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 6.5V ~ 36V | Buck | 400kHz | Board(s) | MAX17631 |
|
|
MAX17631AEVKIT#EVAL BOARD FOR MAX17631 |
2,942 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4.5V ~ 36V | Boost | 400kHz | Board(s) | MAX17631 |
|
LM5010AEVALEVAL BOARD FOR LM5010A |
3,641 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 75V | Buck | 200kHz | Board(s) | LM5010A |
|
|
XCL240B333F-EVB-01EVAL BOARD FOR XCL240 |
4,379 | - |
|
Datasheet | - | Case | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 2.5V ~ 5.5V | Buck | 3MHz | Board(s) | XCL240 |
|
|
XC9291B12E0-EVB-01EVAL BOARD FOR XC9291 |
1,971 | - |
|
Datasheet | - | Case | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.5V ~ 6V | Buck | 6MHz | Board(s) | XC9291 |
|
|
XCL240B183F-EVB-01EVAL BOARD FOR XCL240 |
3,717 | - |
|
Datasheet | - | Case | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | 3MHz | Board(s) | XCL240 |
|
|
XC9291B18E0-EVB-01EVAL BOARD FOR XC9291 |
3,675 | - |
|
Datasheet | - | Case | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.5V ~ 6V | Buck | 6MHz | Board(s) | XC9291 |
|
MAXM17761EVKIT#EVAL BOARD FOR MAXM17761 |
2,222 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 10V ~ 76V | Buck | 537kHz | Board(s) | MAXM17761 |
|

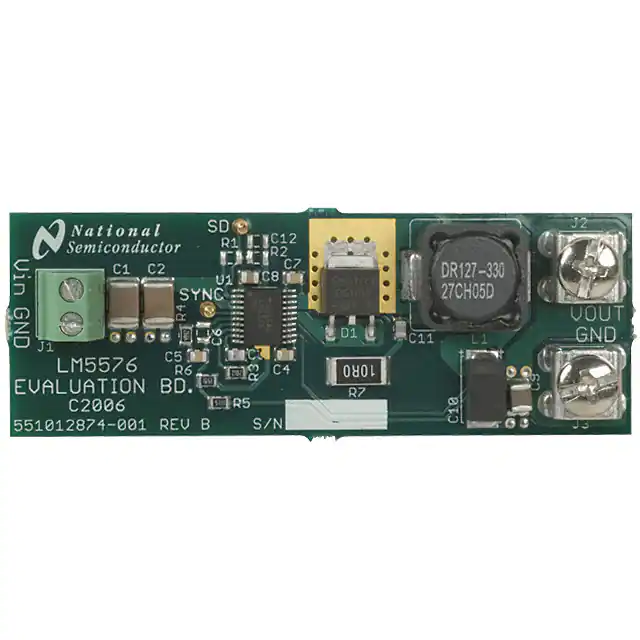

LM5576EVALEVAL BOARD FOR LM5576 |
3,086 | - |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 75V | Buck | 300kHz | Board(s) | LM5576 |
|
LM2735XMFEVALEVAL BOARD FOR LM2735 |
3,764 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 5.5V | Boost | 1.6MHz | Board(s) | LM2735 |
|
MAXM17504EVKIT#EVAL BOARD FOR MAXM17504 |
4,791 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 11V ~ 60V | Buck | 500kHz | Board(s) | MAXM17504 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
