DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAXM17543EVKIT#EVAL BOARD FOR MAXM17543 |
1,052 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 2.5A | 4.5V ~ 42V | Buck | - | Board(s) | MAXM17543 |
|
MAXM17544EVKIT#EVAL BOARD FOR MAXM17544 |
1,885 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 3.5A | 4.5V ~ 42V | Buck | - | Board(s) | MAXM17544 |
|
MAXM17503EVKIT#EVAL BOARD FOR MAXM17503 |
2,601 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 11V ~ 60V | Buck | 500kHz | Board(s) | MAXM17503 |
|
|
MAXM17505EVKIT#EVAL BOARD FOR MAXM17505 |
3,640 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 1.7A | 4.5V ~ 60V | Buck | - | Board(s) | MAXM17505 |
|
MAXM17545EVKIT#EVAL BOARD FOR MAXM17545 |
1,395 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 1.7A | 4.5V ~ 42V | Buck | - | Board(s) | MAXM17545 |
|
MAXM17514EVKIT#EVAL BOARD FOR MAXM17514 |
3,055 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3.6V | 4A | 2.4V ~ 5.5V | Buck | 1MHz | Board(s) | MAXM17514 |
|
MAXM17515EVKIT#EVAL BOARD FOR MAXM17515 |
2,092 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3.6V | 5A | 2.4V ~ 5.5V | Buck | 1MHz | Board(s) | MAXM17515 |
|
MAXM17516EVKIT#EVAL BOARD FOR MAXM17516 |
4,295 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 1.8V | 6A | 2.4V ~ 5.5V | Buck | 1MHz | Board(s) | MAXM17516 |
|
MAX8537EVKITEVAL BOARD FOR MAX8537 |
4,564 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, DDR Memory Supply | 3 Non-Isolated Outputs | 60 W | 1.25V, 1.25V, 2.5V | 20A, 8A, 15mA | 12V | Buck | 400kHz | Board(s) | MAX8537 |
|
STEVAL-ISA146V1EVAL BOARD FOR ST1S50 |
1,459 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 4V ~ 18V | Buck | 500kHz | Board(s) | ST1S50 |
|
STEVAL-ISA088V1EVAL BOARD FOR L5970D |
2,527 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4.4V ~ 25V | Buck | 250kHz | Board(s) | L5970D |
|
|
STEVAL-ISA141V1EVAL BOARD FOR STBB3J |
1,946 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.2V ~ 5.5V | 2A, 800mA | 1.8V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | STBB3J |
|
|
STEVAL-ISA141V2EVAL BOARD FOR STBB3JCC |
1,148 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.2V ~ 5.5V | 2A, 800mA | 1.8V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | STBB3JCC |
|
LM2734ZEVALEVAL BOARD FOR LM2734 |
2,903 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 3V ~ 20V | Buck | 3MHz | Board(s) | LM2734 |
|
|
ISL8117DEMO3ZEVAL BOARD FOR ISL8117 |
2,070 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4.5V ~ 60V | Buck | 300kHz | Board(s) | ISL8117 |
|

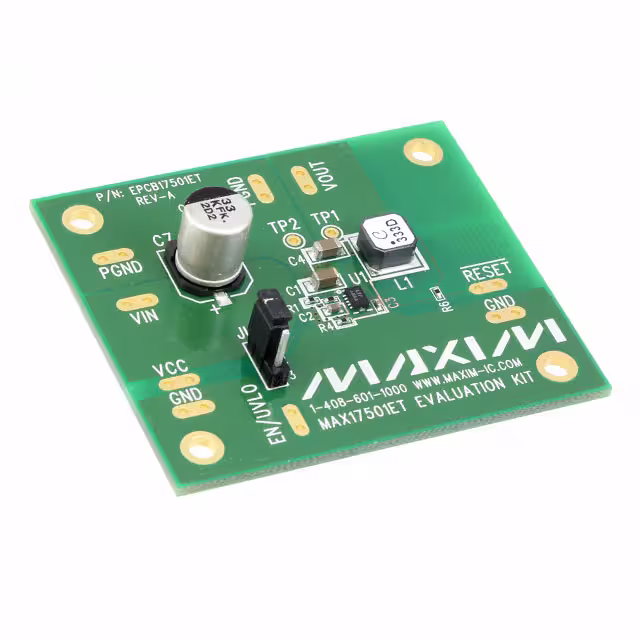

MAX17501ETEVKIT#EVAL BOARD FOR MAX17501E |
2,201 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 60V | Buck | 600kHz | Board(s) | MAX17501E |
|

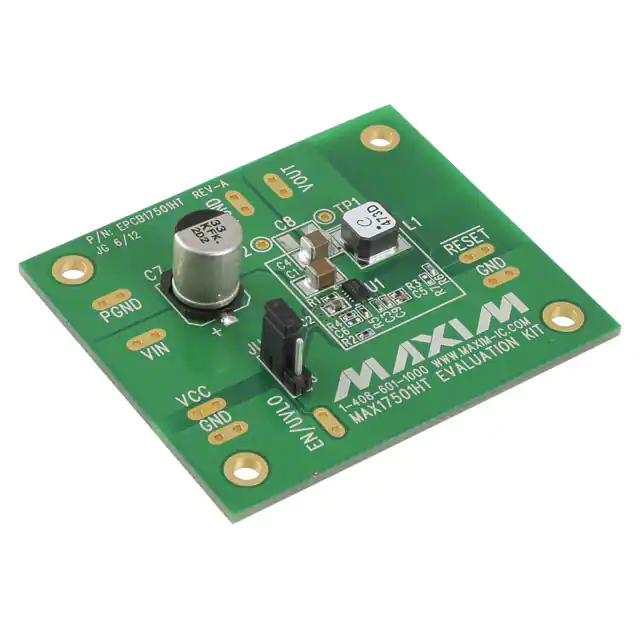

MAX17501HTEVKIT#EVAL BOARD FOR MAX17501H |
1,120 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 500mA | 4.5V ~ 60V | Buck | 300kHz | Board(s) | MAX17501H |
|

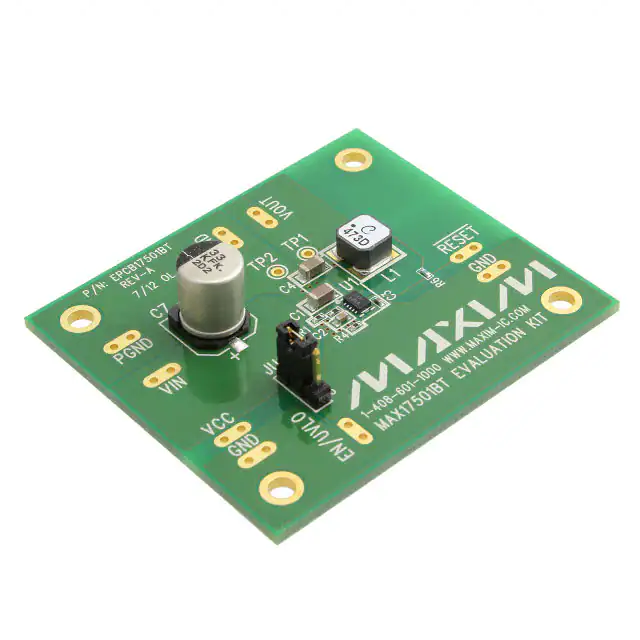

MAX17501BTEVKIT#EVAL BOARD FOR MAX17501B |
4,644 | - |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 6V ~ 60V | Buck | 600kHz | Board(s) | MAX17501B |
|
|
MAX15462C12EVKIT#EVAL BOARD FOR MAX15462C |
4,010 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 300mA | 14V ~ 42V | Buck | 500kHz | Board(s) | MAX15462C |
|
|
MAX17542GTBEVKIT#EVAL BOARD FOR MAX17542G |
1,120 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 5V ~ 42V | Buck | 600kHz | Board(s) | MAX17542G |
