DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

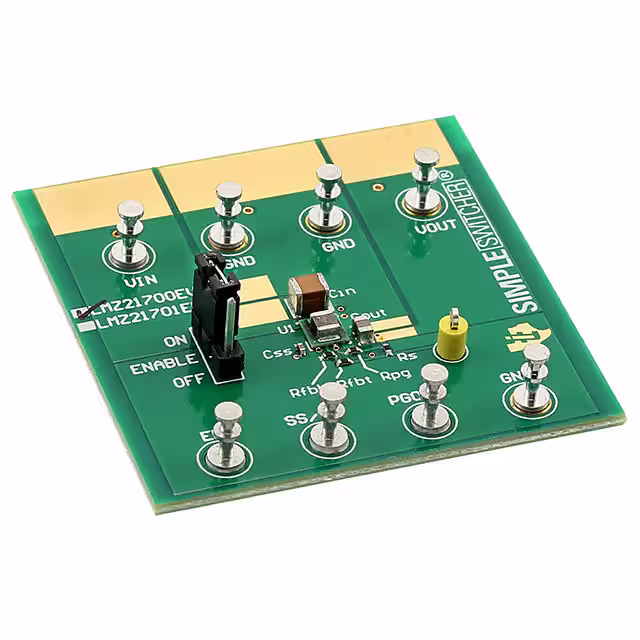

LMZ21700EVMEVAL BOARD FOR LMZ21700 |
2,159 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 650mA | 5V ~ 17V | Buck | - | Board(s) | LMZ21700 |
|
PFCLLCSREVM034EVAL BOARD FOR PFCLLCSREVM034 |
3,601 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 168 W | 12V | 14A | 90 ~ 265 VAC | Boost | - | Board(s) | PFCLLCSREVM034 |
|

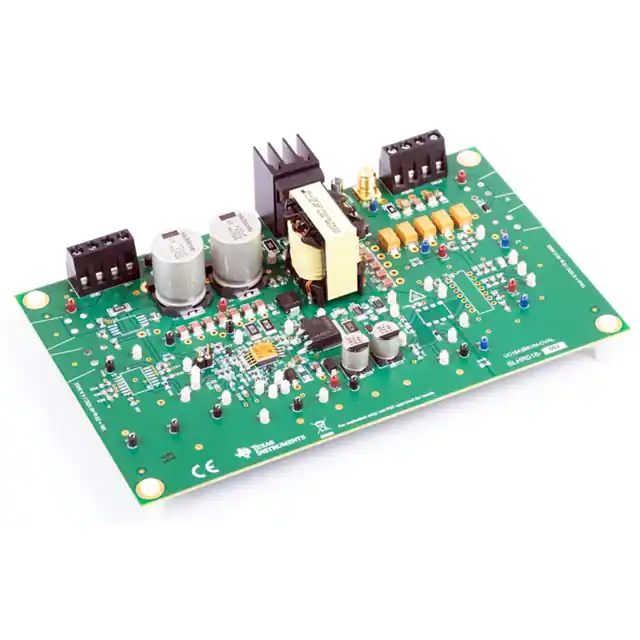

UC1843BEVM-CVALEVAL BOARD FOR UC1843BSP |
1,259 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 10A | 20V ~ 40V | Flyback | 200kHz | Board(s) | UC1843B-SP |
|

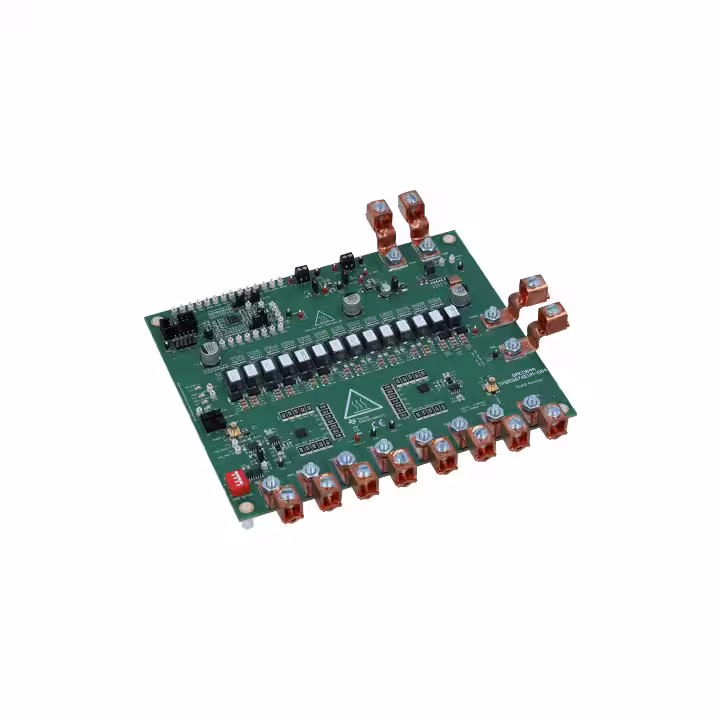

TPS53676EVM-084EVAL BOARD FOR TPS53676 |
1,836 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.8V, 0.88V | 240A, 50A | 12V | Buck | - | Board(s), Cable(s) | TPS53676 |
|
551011367-011/NOPBEVAL BOARD FOR LM2598 LM2670 |
1,815 | - |
|
Datasheet | WEBENCH® Buildit Board | Bulk | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LM2598, LM2670, LM2673, LM2676, LM2677, LM2678, LM2679 |
|

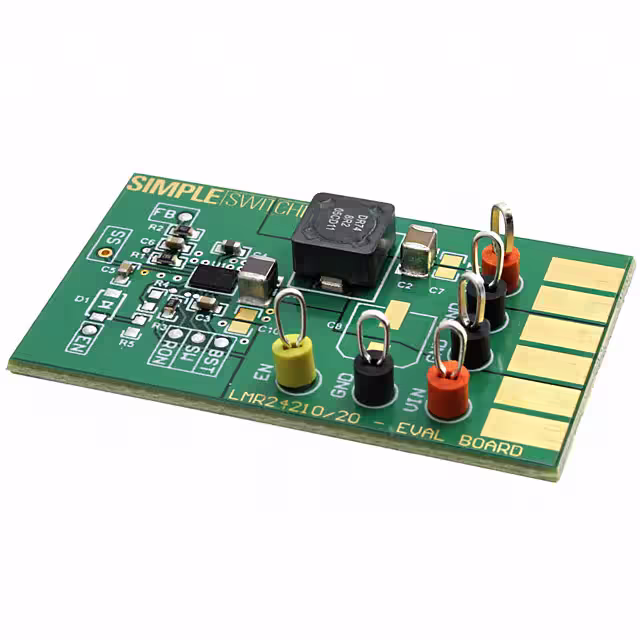

LMR24220EVAL/NOPBEVAL BOARD FOR LMR24220 |
1,032 | - |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LMR24220 |
|

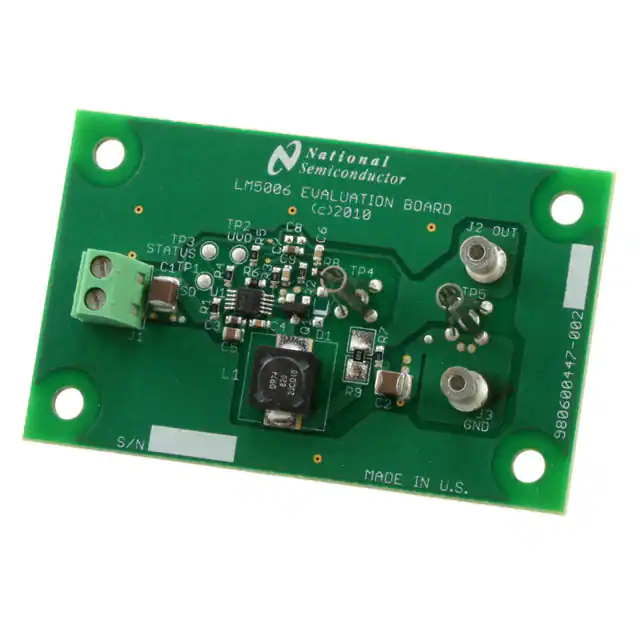

LM5006EVAL/NOPBEVAL BOARD FOR LM5006 |
2,946 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 6V ~ 75V | Buck | 200kHz | Board(s) | LM5006 |
|

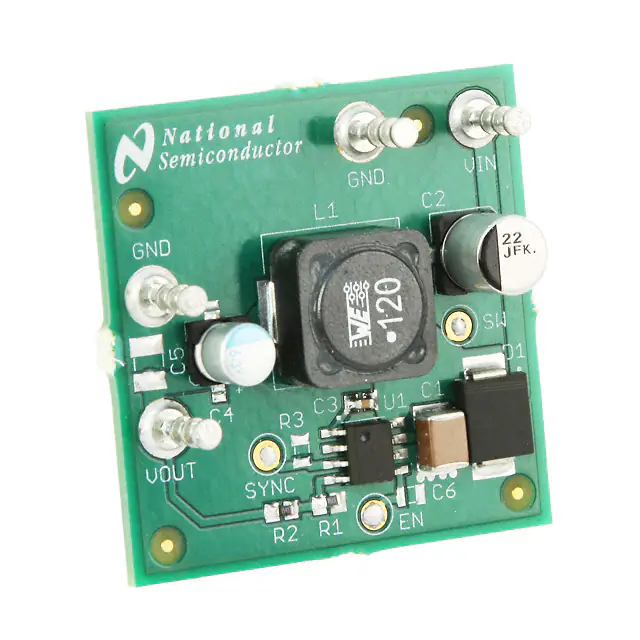

LM22680EVAL/NOPBEVAL BOARD FOR LM22680 |
3,756 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22680 |
|

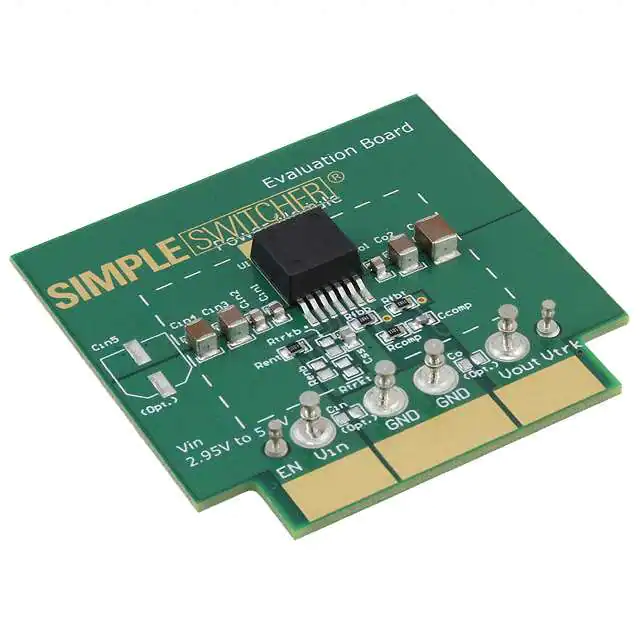

LMZ10505EVAL/NOPBEVAL BOARD FOR LMZ10505 |
3,205 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10505 |
|

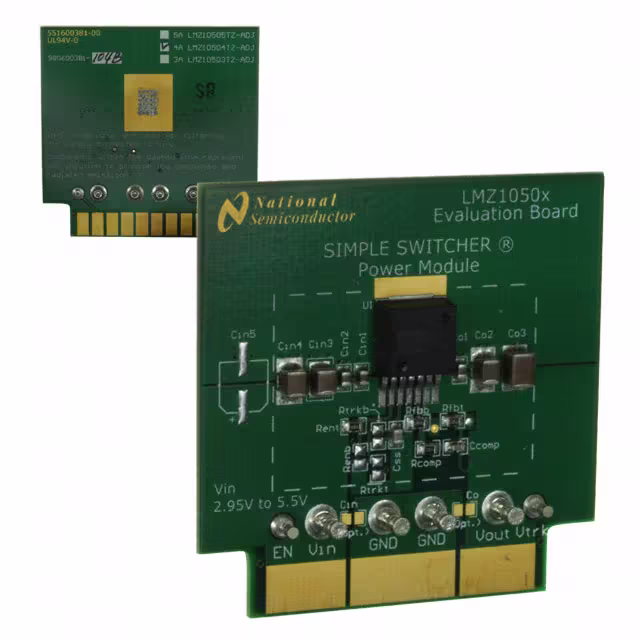

LMZ10504EVAL/NOPBEVAL BOARD FOR LMZ10504 |
2,321 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 4A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10504 |
