DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MXL7225-1-EVK-1EVAL BOARD FOR MXL72251 |
1,996 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 25A, 25A | 4.5V ~ 15V | Forward Converter | 500kHz | Board(s), Power Supply | MxL7225-1 |
|
|
MXL7218-EVK-1EVAL BOARD FOR MXL7218 |
3,883 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 18A, 18A | 4.5V ~ 15V | Forward Converter | 500kHz | Board(s), Power Supply | MxL7218 |
|
|
MXL7225-EVK-1EVAL BOARD FOR MXL7225 |
4,426 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 25A, 25A | 4.5V ~ 15V | Forward Converter | 500kHz | Board(s), Power Supply | MxL7225 |
|
|
MAX1744EVKITEVAL BOARD FOR MAX1744 |
1,483 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2A | 36V | Buck | 330kHz | Board(s) | MAX1744 |
|
|
MAX1760EVKITEVAL BOARD FOR MAX1760 |
1,138 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 800mA | 0.7V ~ 5.5V | Boost | 1MHz | Board(s) | MAX1760 |
|
|
MAX1763EVKITEVAL BOARD FOR MAX1763 |
4,239 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 3 Non-Isolated Outputs | - | 2.8V, 3.3V, 3.3V | 1.4A, 1.1A, 1A | 0.7V ~ 5.5V | Boost | 1MHz | Board(s) | MAX1763 |
|
MAX16932EVKIT#EVAL BOARD FOR MAX16932 |
4,783 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 10A, 10A | 3.5V ~ 42V | Buck | - | Board(s) | MAX16932 |
|
|
FEB212EVAL BOARD FOR FSFR2100 |
2,200 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 192 W | 24V | 8A | 340V ~ 400V | Flyback | 300kHz | Board(s) | FSFR2100 |
|
|
MYMGC3R32EFPF2RV-EVMEVAL BOARD FOR MYMGC3R32EFPF2RV |
3,650 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | 15.15 W | 1.2V, 2.5V | 2.5A | 4.3V ~ 5.5V | Buck | 2MHz | Board(s) | MYMGC3R32EFPF2RV |
|
|
MYMGC0R88RFLF2RV-EVMEVAL BOARD FOR MYMGC0R88RFLF2RV |
2,651 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | 6.8 W | 0.85V | 8A | 3.3V ~ 5.5V | Buck | 2MHz | Board(s) | MYMGC0R88RFLF2RV |
|
|
MYMGC1R83BFPF2RV-EVMMYMGC1R83BFPF2RV EVAL. BOARD |
1,303 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 6.44 W | 1.8V | 3.2A | 3.3V ~ 5.5V | Buck | 2MHz | Board(s) | - |
|
|
DC1181AEVAL BOARD FOR LTM4608 |
1,566 | - |
|
Datasheet | µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 8A | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTM4608 |
|
|
MAX1678EVKITEVAL BOARD FOR MAX1678 |
2,919 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 100mA | 0.87V ~ 3.3V | Boost | 150kHz | Board(s) | MAX1678 |
|
178010601EVAL BOARD FOR WPMDH1100601 |
4,898 | - |
|
Datasheet | MagI3C | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 6V | 1A | 6V ~ 42V | Buck | - | Board(s) | WPMDH1100601 |
|
|
MAX1556EVKITEVAL BOARD FOR MAX1556 |
2,735 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.2A | 2.6V ~ 5.5V | Buck | 1MHz | Board(s) | MAX1556 |
|
|
MAX1649EVKIT-SO+EVAL BOARD FOR MAX1649 |
1,979 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 5.5V ~ 16.5V | Buck | - | Board(s) | MAX1649 |
|
|
MAX8625AEVKIT+EVAL BOARD FOR MAX8625A |
4,692 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.5V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | MAX8625A |
|
|
ISL8117EVAL1ZEVAL BOARD FOR ISL8117 |
4,523 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4.5V ~ 60V | Buck | 600kHz | Board(s) | ISL8117 |
|
ARD00797EVAL BOARD FOR MCP16251 |
3,541 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 125mA | 0.9V ~ 1.6V | Boost | 500kHz | Board(s) | MCP16251 |
|

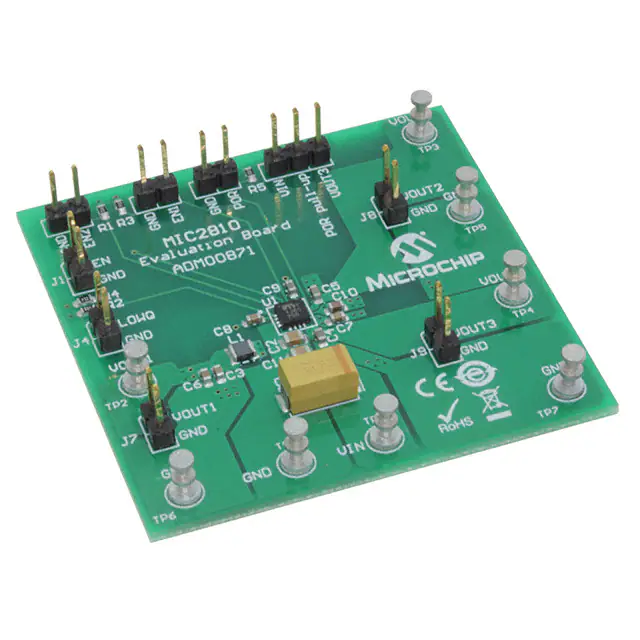

ADM00871EVAL BOARD FOR MIC2810 |
3,135 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.25V, 1.4V, 3.3V | 600mA, 300mA, 300mA | 3.6V ~ 5.5V | Buck | 2MHz | Board(s) | MIC2810 |
