DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM25085MYEVALEVAL BOARD FOR LM25085 |
1,096 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 5.5V ~ 42V | Buck | 300kHz | Board(s) | LM25085 |
|
MAX8569EVKIT+EVAL BOARD FOR MAX8569 |
1,393 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 200mA | 1.5V ~ 5.5V | Boost | - | Board(s) | MAX8569 |
|
LM5015ISOEVALEVAL BOARD FOR LM5015 |
2,676 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 5V | 3A | 36V ~ 72V | Buck | 300kHz | Board(s) | LM5015 |
|
|
EL7534EVAL1EVAL BOARD FOR EL7534 |
4,203 | - |
|
Datasheet | - | Box | Last Time Buy | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.5V ~ 5.5V | Buck | - | Board(s) | EL7534 |
|
LM25116EVALEVAL BOARD FOR LM25116 |
3,986 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 7V ~ 42V | Buck | 250kHz | Board(s) | LM25116 |
|
LM5116-12EVALEVAL BOARD FOR LM5116 |
2,323 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 5A | 15V ~ 80V | Buck | 250kHz | Board(s) | LM5116 |
|

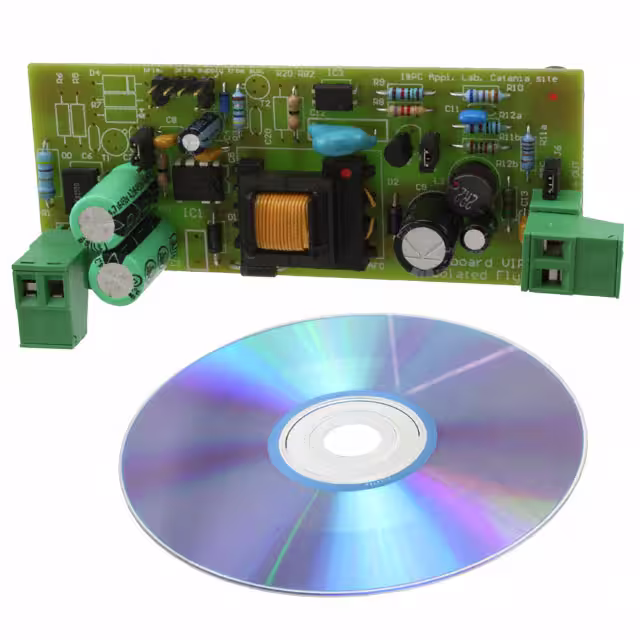

EVLVIP16L-4WFLEVAL BOARD FOR VIPER16 |
1,086 | - |
|
Datasheet | VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 4 W | 16V | 250mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer16 |
|
MAX17094EVKIT+EVAL BOARD FOR MAX17094 |
1,035 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 5 Non-Isolated Outputs | - | 2.5V, 3.2V, 8V, 21.5V, -6.5V | 300mA, 250mA, 150mA, 30mA, 30mA | 1.8V ~ 5.5V | Boost, Inverting | - | Board(s) | MAX17094 |
|
MAX17088EVKIT+EVAL BOARD FOR MAX17088 |
4,920 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 3.2V, 8V, 21V, -13V | 300mA, 150mA, 20mA, 20mA | 1.8V ~ 6V | Boost | 1.2MHz | Board(s) | MAX17088 |
|

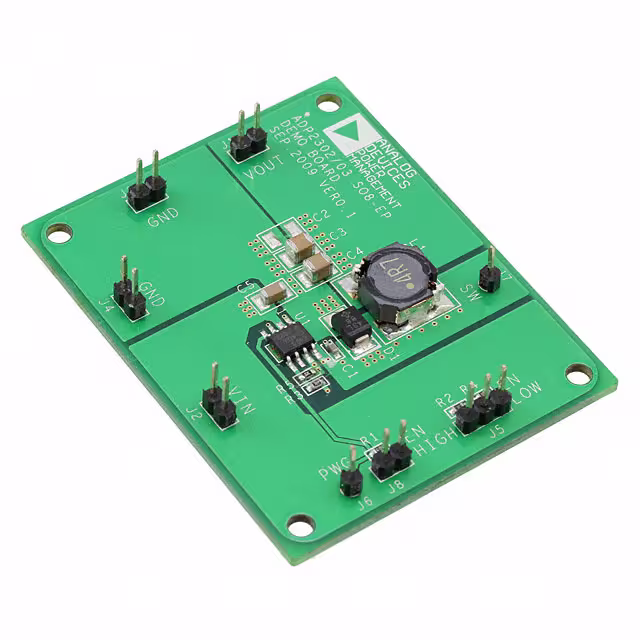

ADP2303-EVALZEVAL BOARD FOR ADP2303 |
2,659 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 3V ~ 20V | Buck | 700kHz | Board(s) | ADP2303 |
|

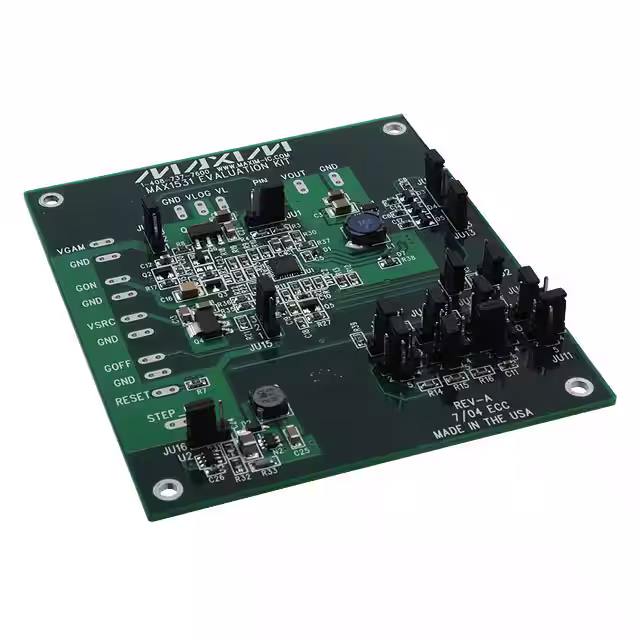

MAX1531EVKITEVAL BOARD FOR MAX1531 |
1,324 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 6 Non-Isolated Outputs | - | 2.5V, 3.3V, 9.7V, 10V, 25V, -9V | 1.5A, 500mA, 500mA, 50mA, 50mA, 25mA | 10.5V ~ 24V | Boost, Buck, Inverting | 250kHz or 500kHz | Board(s) | MAX1531 |
|
MAX17112EVKIT+EVAL BOARD FOR MAX17112 |
1,646 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 1 Non-Isolated Output | - | 15V | 600mA | 4.5V ~ 5.5V | Boost | 1MHz | Board(s) | MAX17112 |
|
MAX17117EVKIT+EVAL BOARD FOR MAX17117 |
3,257 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 4.25V, 8.5V, 23V, -6V | 250mA, 200mA, 20mA, 10mA | 2.3V ~ 5.5V | Boost, Inverting | 1.2MHz | Board(s) | MAX17117 |
|
|
MAX17122EVKIT+EVAL BOARD FOR MAX17122 |
2,346 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 6 Non-Isolated Outputs | - | 3.3V, 5V, 15V, 28V, -7.5V, -12V ~ -20V | 2.5A, 2.2A, 450mA, 100mA, 100mA, 25mA | 10V ~ 14V | Boost, Buck | 750kHz | Board(s) | MAX17122 |
|
|
MAX17135EVKIT+EVAL BOARD FOR MAX17135 |
4,961 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, Electronic Paper | 4 Non-Isolated Outputs | - | 15V, 22V, -15V, -20V | 200mA, 200mA, 20mA, 20mA | 2.7V ~ 5.5V | Boost, Buck | 1MHz | Board(s) | MAX17135 |
|
|
MAX1513EVKITEVAL BOARD FOR MAX1513 |
4,766 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 5 Non-Isolated Outputs | - | 3.3V, 14.7V, 15V, 25V, -10V | 500mA, 500mA, 50mA, 50mA, 25mA | 4.5V ~ 5.5V | Boost | 1.5MHz | Board(s) | MAX1513 |
|
|
MAX17077EVKIT+EVAL BOARD FOR MAX17077 |
3,947 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up with LDO | - | - | - | - | - | Boost | - | Board(s) | MAX17077 |
|
APEK8672EEG-TEVAL BOARD FOR A8672 |
4,440 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 8A | 3V ~ 16V | Buck | - | Board(s) | A8672 |
|

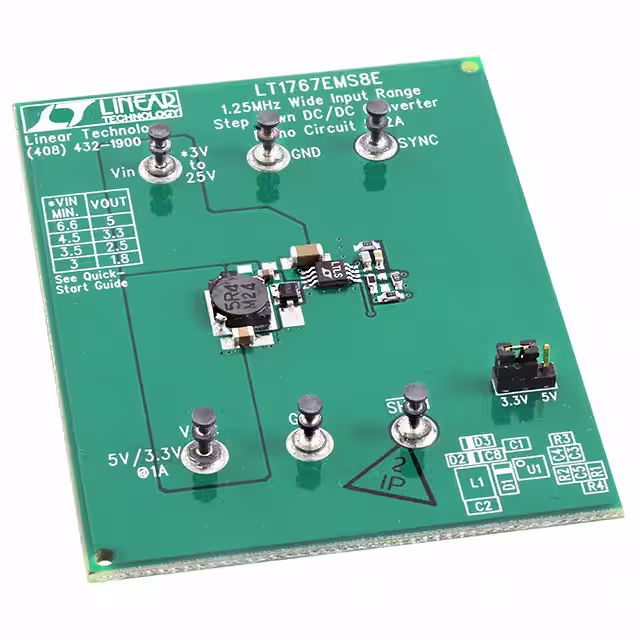

DC502AEVAL BOARD FOR LT1767 |
1,360 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 3V ~ 25V | Buck | 1.25MHz | Board(s) | LT1767 |
|

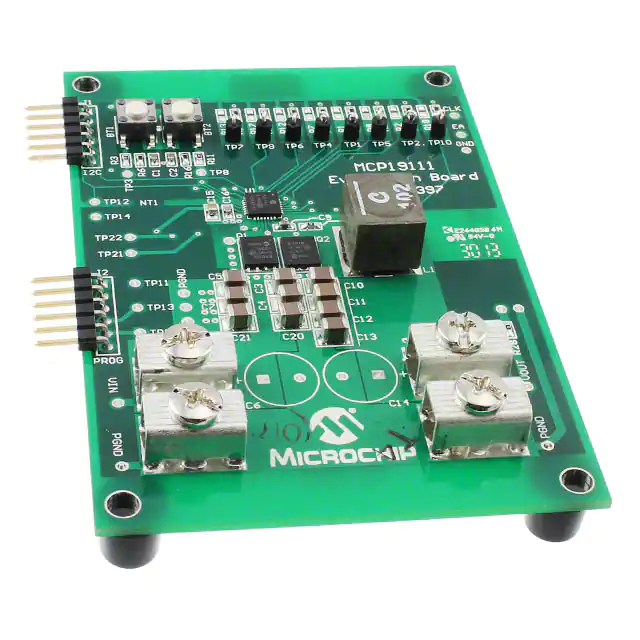

ADM00397EVAL BOARD FOR MCP19111 |
4,493 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | - | 5V ~ 12V | Buck | - | Board(s) | MCP19111 |
