DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRAUDPS3EVAL BOARD FOR IRS27952 |
2,985 | - |
|
Datasheet | - | Box | Discontinued at Digi-Key | AC/DC, Primary Side | 2 Non-Isolated Outputs | - | ±30V | - | 88 ~ 132 VAC, 176 ~ 264 VAC | Resonant | - | Board(s) | IRS27952 |
|
MXL7225-1-EVK-2EVAL BOARD FOR MXL72251 |
2,680 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 4.5V ~ 15V | Forward Converter | 500kHz | Board(s), Power Supply | MxL7225-1 |
|
|
MXL7225-EVK-2EVAL BOARD FOR MXL7225 |
3,444 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 4.5V ~ 15V | Forward Converter | 500kHz | Board(s), Power Supply | MxL7225 |
|
|
MXL7218-EVK-2EVAL BOARD FOR MXL7218 |
4,181 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 140A | 4.5V ~ 15V | Forward Converter | 400kHz | Board(s), Power Supply | MxL7218 |
|

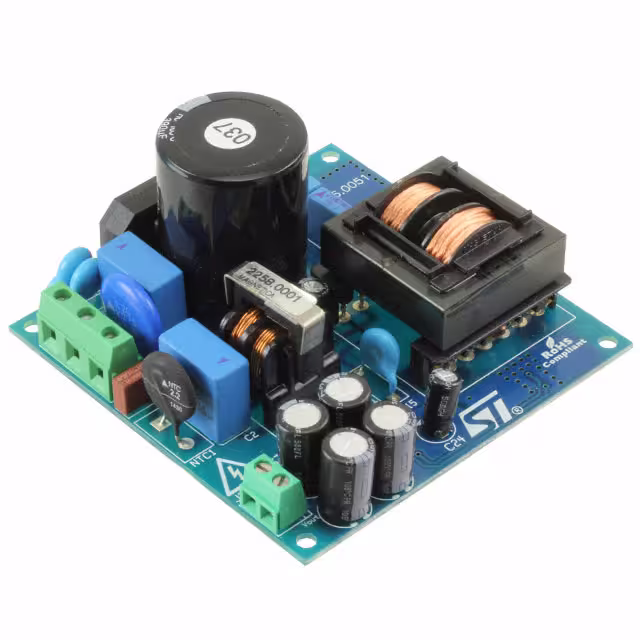

STEVAL-ISA132V1EVAL BOARD FOR L6699 STB13N60M2 |
1,573 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 170 W | 24V | 7A | 190 ~ 264 VAC | Flyback | - | Board(s) | L6699, STB13N60M2, STPS20M80CG |
|
|
MAX20808TEVKIT#MAX20808TEVKIT# SUPPORTS THE MAX |
2,323 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|

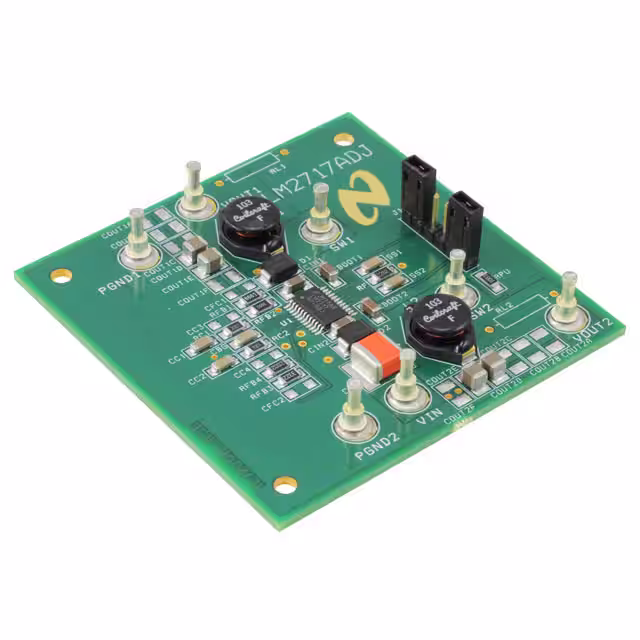

LM2717MT-ADJEVEVAL BOARD FOR LM2717 |
2,243 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 1.5A | 8V ~ 20V | Buck | - | Board(s) | LM2717 |
|

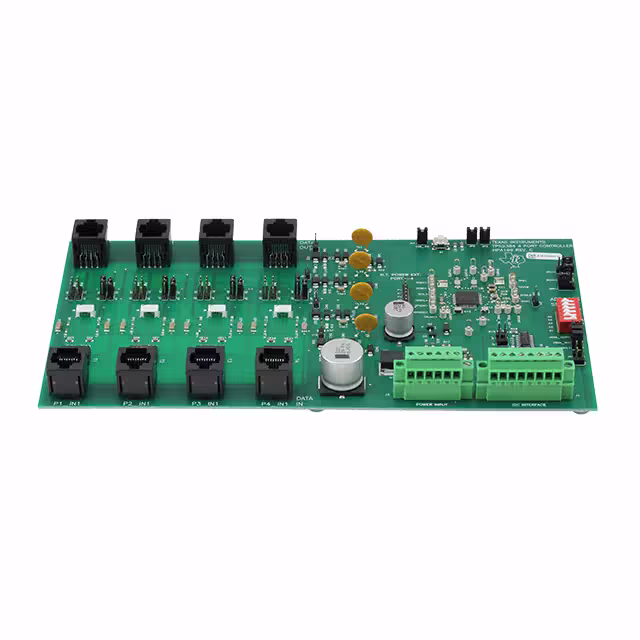

TPS2384EVMEVAL BOARD FOR TPS2384 |
1,898 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 4 Isolated Outputs | - | - | - | 44V ~ 57V | - | - | Board(s) | TPS2384 |
|

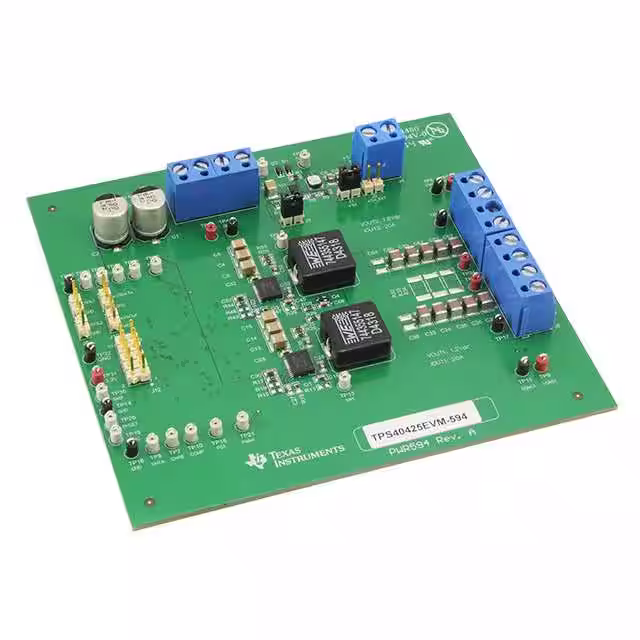

TPS40425EVM-594EVAL BOARD FOR TPS40425 |
1,521 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 20A, 20A | 7V ~ 14V | Buck | 500kHz | Board(s) | TPS40425 |
|
|
TPS54KC23EVMEVAL BOARD FOR TPS54KC23 |
4,913 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.802V | 30A | 4.5V ~ 16V | Buck | 1.4MHz | Board(s) | TPS54KC23 |
|
|
IRDC2085S-SEVAL BOARD FOR IR2085S IRF7493 |
3,002 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 200 W | 6V ~ 10V | 20A | 36V ~ 60V | Buck | 500kHz | Board(s) | IR2085S, IRF7493, IRF7832 |
|
|
IRDC2085S-DFEVAL BOARD FOR IR2085S IRF6618 |
3,272 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 200 W | 6V ~ 10V | 20A | 36V ~ 60V | Buck | 500kHz | Board(s) | IR2085S, IRF6618, IRF7493 |
|

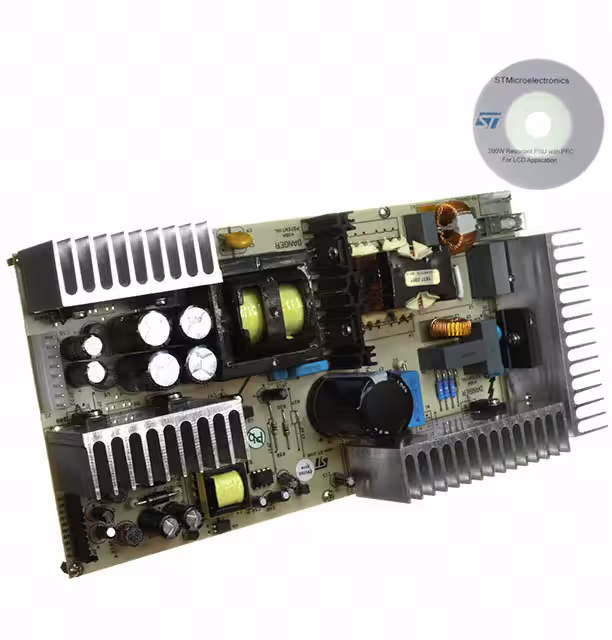

EVAL6599-200WEVAL BOARD FOR L6563 L6599 |
2,355 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side and PFC | 4 Isolated Outputs | 200 W | 3.3V, 5V, 12V, 24V | 6A, 5A, 1A, 700mA | 90 ~ 264 VAC | Resonant | 95kHz | Board(s) | L6563, L6599 |
|

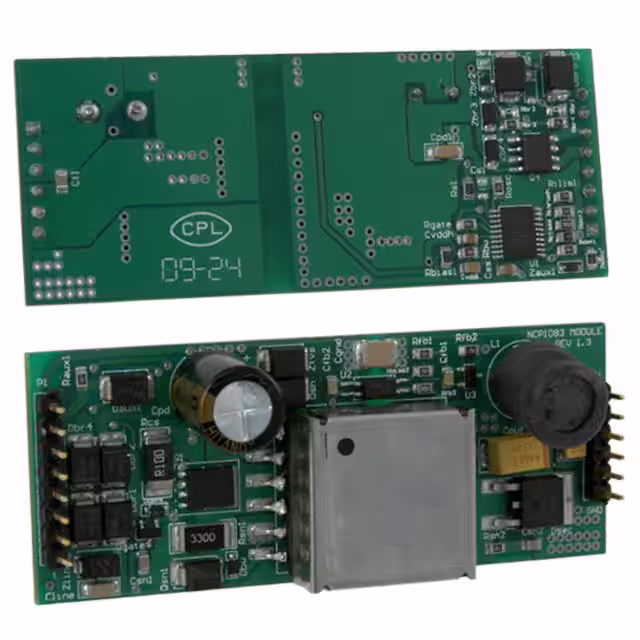

NCP1083QBCGEVBEVAL BOARD FOR NCP1083 |
4,958 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | - | 12V | 2.5A | 24V ~ 57V | Buck | 250kHz | Board(s) | NCP1083 |
|

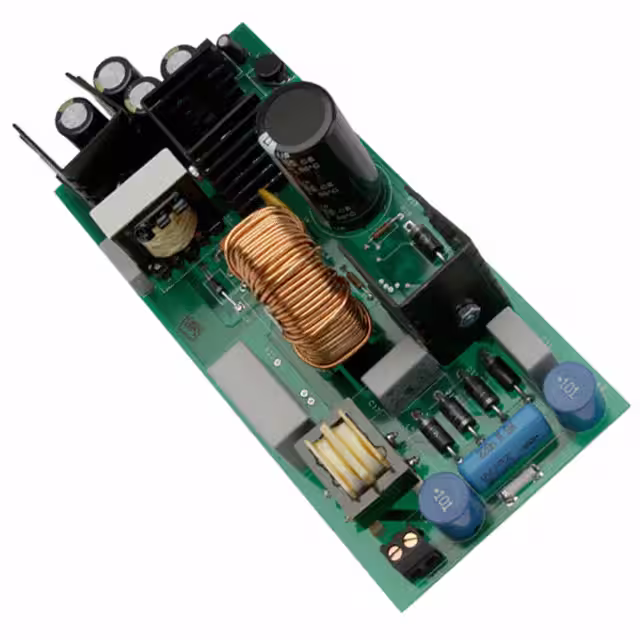

NCP1230GEVBEVAL BOARD FOR NCP1230 |
4,724 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 90 W | 18.6V | 4.74A | 85 ~ 265 VAC | Flyback | 47kHz | Board(s) | NCP1230 |
|
EPC9107EVAL BOARD FOR EPC2015 |
3,750 | - |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 15A | 9V ~ 28V | Buck | 1MHz | Board(s) | EPC2015 |
|
|
EVAL_UJT060A0X43-SRPZ (4 MODULE)EVAL BOARD FOR UJT060 |
3,576 | - |
|
Datasheet | MicroDLynxII™ | Bulk | Active | DC/DC Converter | 4 Non-Isolated Outputs | - | 0.5V ~ 2V | 60A | 7.5V ~ 14.4V | - | 500kHz | Board(s) | UJT060 |
|
SMPS1-01EVAL BOARD FOR IL610 IL711 |
1,632 | - |
|
Datasheet | IsoLoop® | Bag | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 750mA | 11V ~ 14V | Buck | 130kHz | Board(s) | IL610, IL711 |
|
SMPS2-01EVAL BOARD FOR IL710 IL711 |
4,433 | - |
|
Datasheet | IsoLoop® | Bag | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 750mA | 11V ~ 14V | Buck | 130kHz | Board(s) | IL710, IL711 |
|
|
PFH05W-001-EVK-S0EVAL BOARD FOR PFH500F |
4,268 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Non-Isolated | 1 Non-Isolated Output | 500 W | 28V | 18A | 85 ~ 265 VAC | - | - | Partially Populated Board(s) | - |
