DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STR-PWRNCV896530-R0-GEVKEVAL BOARD FOR NCV896530 |
2,743 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.9V ~ 3.3V | - | 2.5V ~ 5.5V | Buck | 2.1MHz | Board(s) | NCV896530 |
|
|
MAX20412EVKIT#EVAL BOARD FOR MAX20412 |
3,460 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX20412 |
|

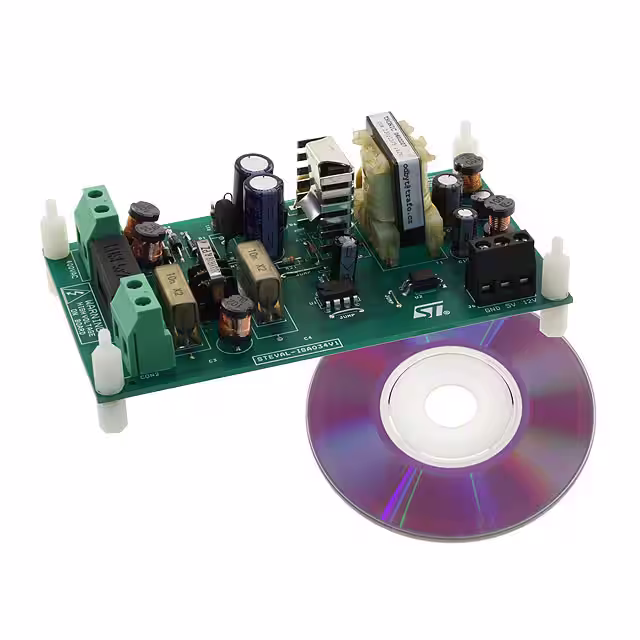

STEVAL-ISA034V1EVAL BOARD FOR L6565 STW3N150 |
4,071 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 10 W | 5V, 12V | 600mA, 550mA | 185 ~ 460 VAC | Flyback | - | Board(s) | L6565, STW3N150 |
|
|
ISL6442EVAL1ZEVAL BOARD FOR ISL6442 |
4,977 | - |
|
Datasheet | - | Box | Last Time Buy | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | 3A, 3A, 300mA | 6V | Buck | 1.4MHz | Board(s) | ISL6442 |
|
EVALSF3-ICE3B0565EVAL BOARD FOR ICE3B0565 |
3,670 | - |
|
Datasheet | CoolSET®F3 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | 67kHz | Board(s) | ICE3B0565 |
|
|
ISL68201-99260DEMO1ZEVAL BOARD FOR ISL68201 |
2,423 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 35A | 4.75V ~ 14.5V | Buck | 400kHz | Board(s), Cable(s) | ISL68201 |
|
|
ISL8272MEVAL2ZEVAL BOARD FOR ISL8272M |
4,103 | - |
|
Datasheet | - | Bag | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 150A | 5V ~ 12V | Buck | 421kHz | Board(s), Cable(s) | ISL8272M |
|

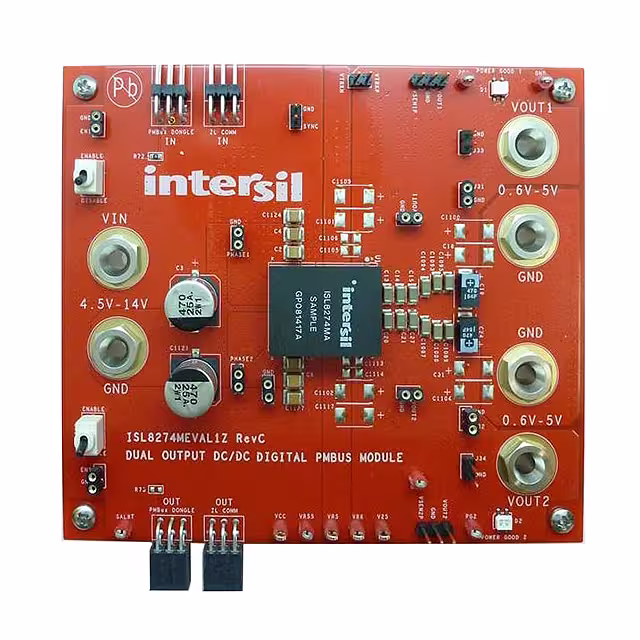

ISL8274MEVAL1ZEVAL BOARD FOR ISL8274M |
4,246 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V | 30A, 30A | 5V ~ 12V | Buck | 889kHz | Board(s), Cable(s) | ISL8274M |
|

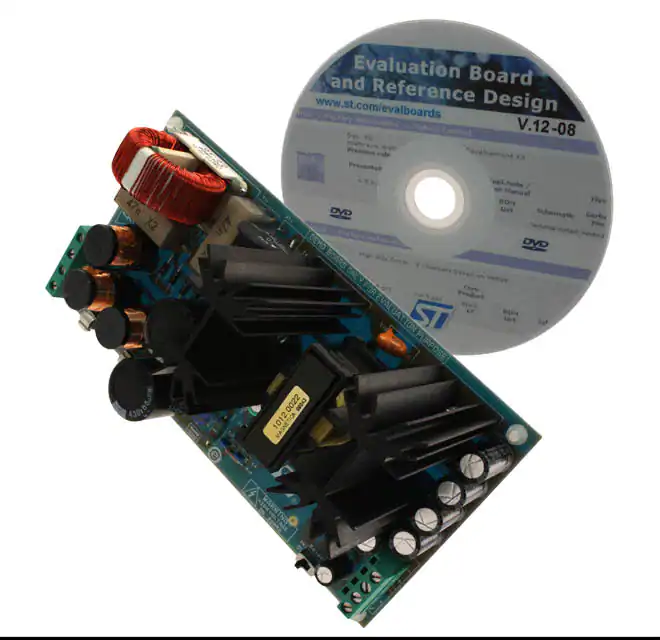

STEVAL-ISA054V1EVAL BOARD FOR L5970 STW9N150 |
3,921 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 100 W | 24V, 3.3V or 5V | 4A, 1A | 180 ~ 265 VAC, 320 ~ 480 VAC | Flyback | 250kHz | Board(s) | L5970, STW9N150, UC3844B |
|

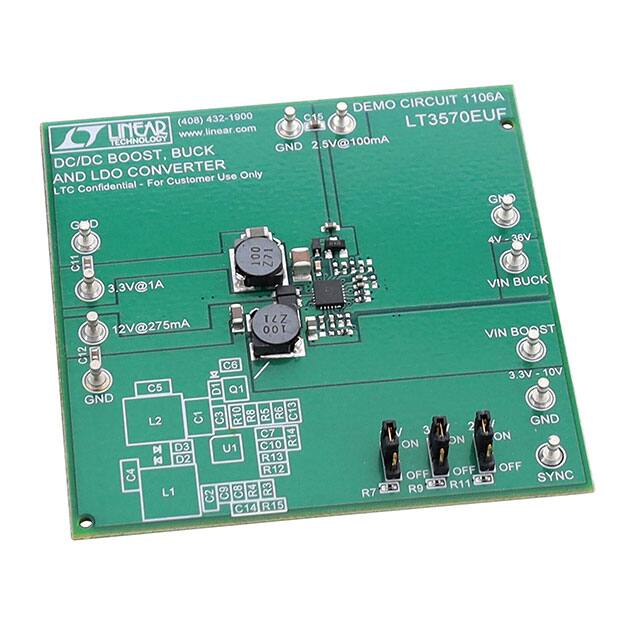

DC1106AEVAL BOARD FOR LT3570 |
1,870 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | 2.5V, 3.3V, 12V | 100mA, 275mA, 1A | 3.3V ~ 10V, 4V ~ 36V | Boost, Buck | 500kHz | Board(s) | LT3570 |
|

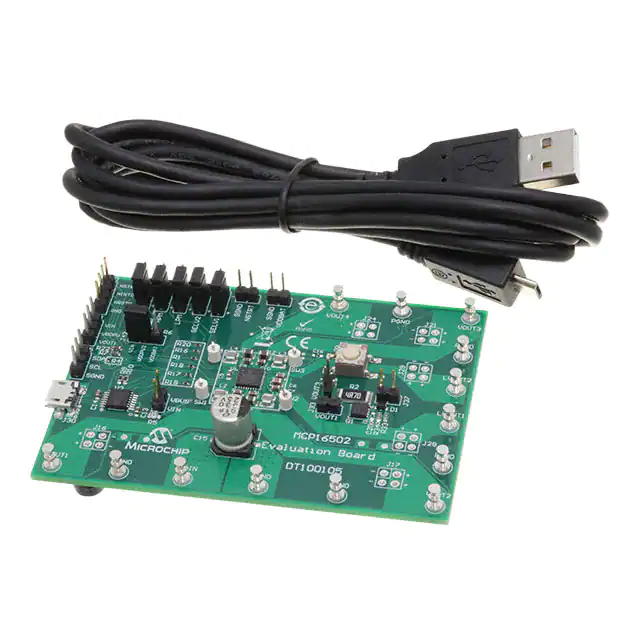

DT100105EVAL BOARD SAMA7G SAMA5D2 SAM9X6 |
4,587 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | 1A | - | Buck | - | Board(s) | SAMA7G, SAMA5D2, SAM9x6 |
|
|
ISL8025AEVAL3ZEVAL BOARD FOR ISL8025A |
4,327 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8025A |
|
|
EVL4984-350WEVAL BOARD FOR L4984D |
2,873 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 350 W | 400V | - | 90 ~ 265 VAC | - | 70kHz | Board(s) | L4984D |
|
|
RTKA223012DR0050BUEVAL BOARD FOR RAA223012 |
4,385 | - |
|
Datasheet | - | Box | Active | AC/DC Converter | 1 Non-Isolated Output | 750 mW | 5V | 150mA | 85 ~ 265 VAC | Buck-Boost | - | Board(s) | RAA223012 |
|

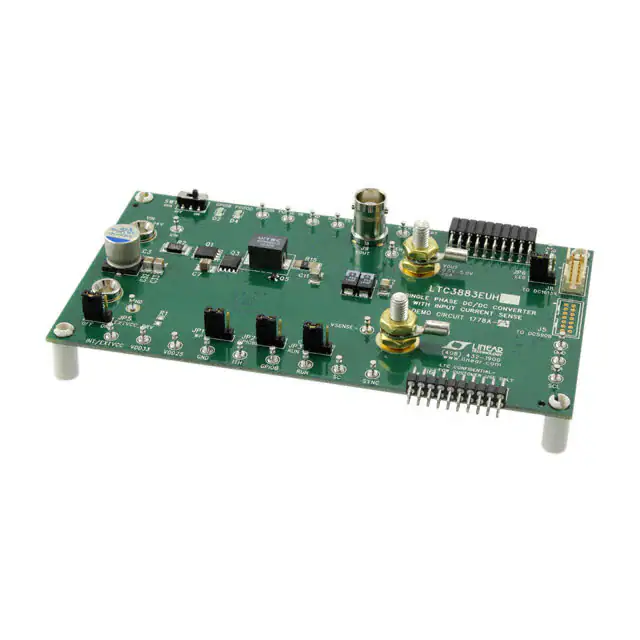

DC1778A-AEVAL BOARD FOR LTC3883 |
4,308 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 20A | 6.5V ~ 24V | Buck | 425kHz | Board(s) | LTC3883 |
|
|
DC2513AEVAL BOARD FOR LTC7821 |
3,384 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 36V ~ 72V | Buck | 500kHz | Board(s) | LTC7821 |
|

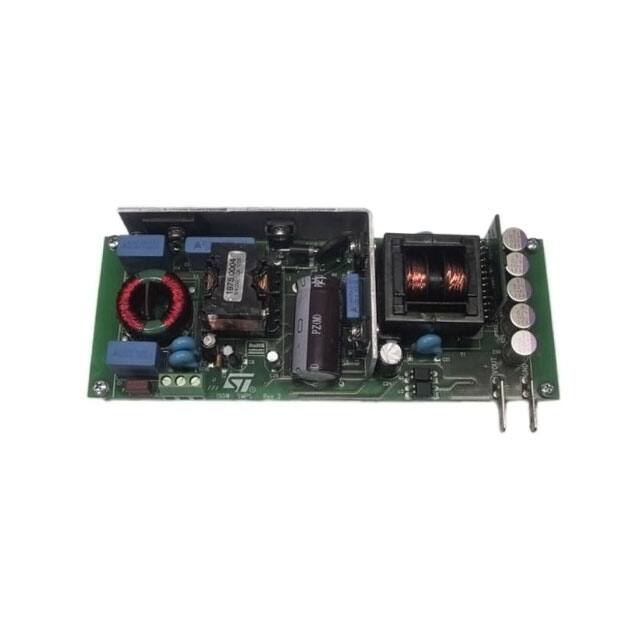

STEVAL-ISA170V1EVAL BOARD L6563H L6699 SRK2001 |
2,997 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side and PFC | 1 Isolated Output | 150 W | 12V | 12.5A | 90 ~ 264 VAC | Flyback | - | Board(s) | L6563H, L6699, SRK2001 |
|

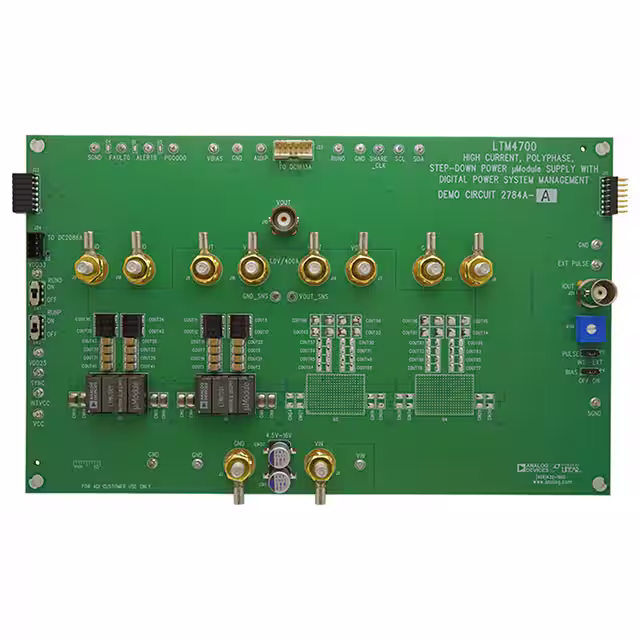

DC2784A-AEVAL BOARD FOR LTM4700 |
3,833 | - |
|
Datasheet | µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4700 |
|
|
LM2642REVD EVALEVAL BOARD FOR LM2642 |
1,175 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 2A, 2A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | LM2642 |
|

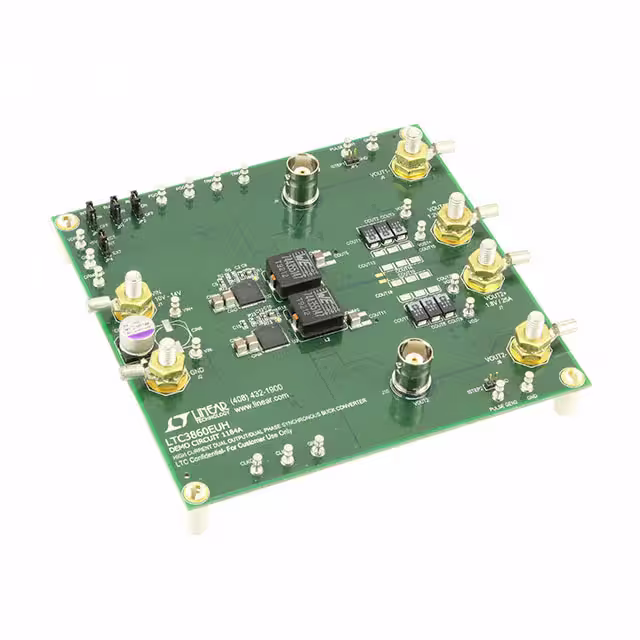

DC1184AEVAL BOARD FOR LTC3860 |
2,509 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 25A, 25A | 10V ~ 14V | Buck | 500kHz | Board(s) | LTC3860 |
